MPC74 0,1 R

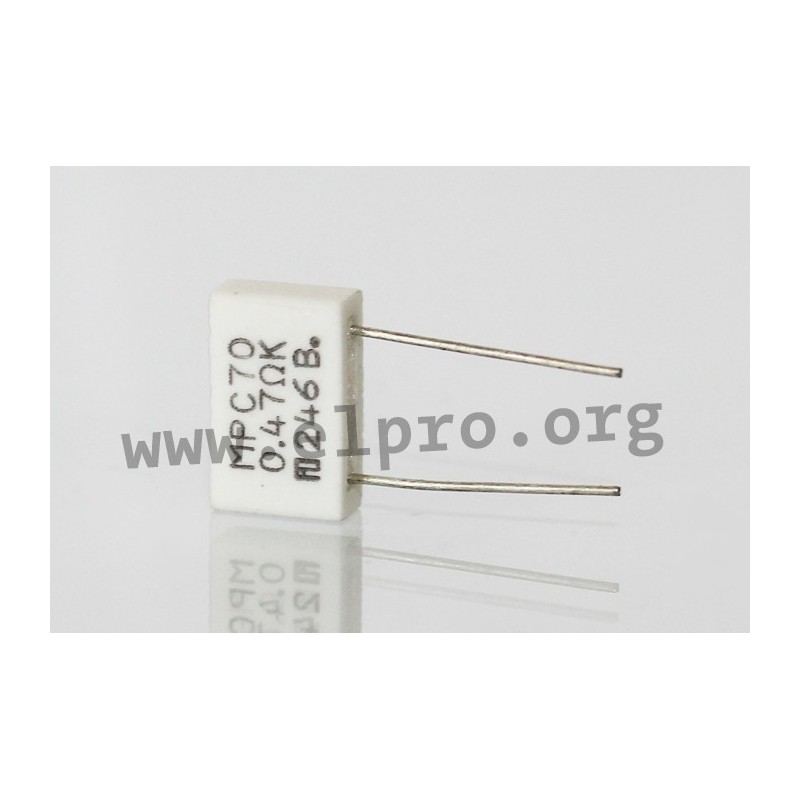

metal band resistors MPC by Fukushima Futaba

• style: bulk
• pitch: 9mm
• series: MPC
• by Fukushima Futaba
• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)
• very small inductive reactanceery small inductive reactance
• uniform distribution of temperature over the resistive element
• hermetically closed ceramic case
• idle zones in the case are filled before shutting with special cement with ceramic powder.
• almost uniform heat dissipation over the entire housing body
• high pulse rating
• resistance tolerance: ±10%
• power rating: 5 W
• temperature coefficient: ±350ppm/°C
• insulation resistance: 10mΩ
• temperature range: -25 to +200°C
• solderability (3s): 350°C

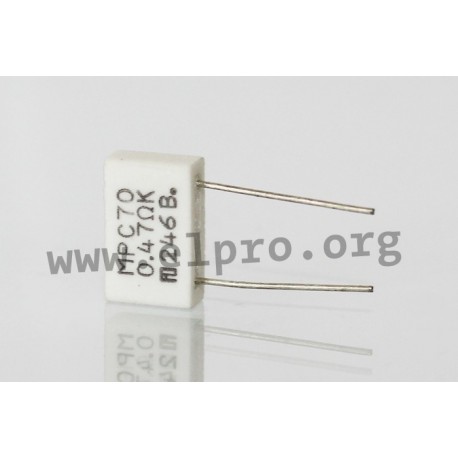

MPC series by Fukushima Futaba

MPC74 0,1 R

42602 MPC74 0,1 R MPC74 0R1 J MPC74 0R1 J metal band resistors MPC by Fukushima Futaba. • style: bulk• pitch: 9mm• series: MPC• by Fukushima Futaba• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)• very small inductive reactanceery small inductive reactance• uniform distribution of temperature over the resistive element• hermetically closed ceramic case• idle zones in the case are filled before shutting with special cement with ceramic powder.• almost uniform heat dissipation over the entire housing body• high pulse rating• resistance tolerance: ±10%• power rating: 5 W• temperature coefficient: ±350ppm/°C• insulation resistance: 10mΩ• temperature range: -25 to +200°C• solderability (3s): 350°C

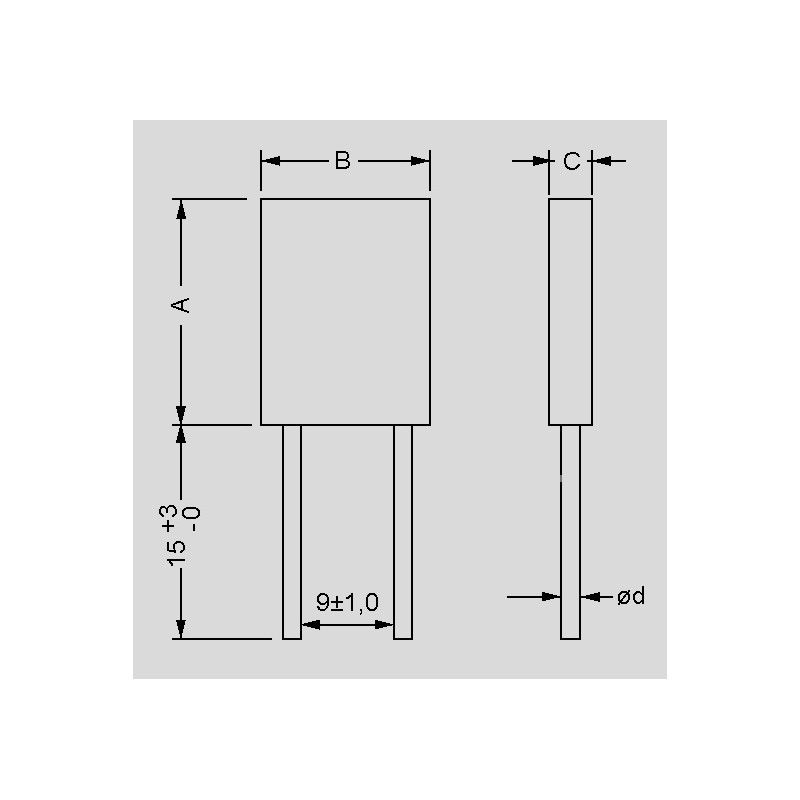

Specifications

manufacturer
Manufacturer's name MPC74 0R1 J
A [mm] 18
Resistance [Ω] 0,1
Power [W] 5
Tolerance [%] 10
B [mm] 14
D [mm] 0,6
C [mm] 5
Data Sheet

Unit price

0,55 €

Stock: 229
Further delivery:
CW 32/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
