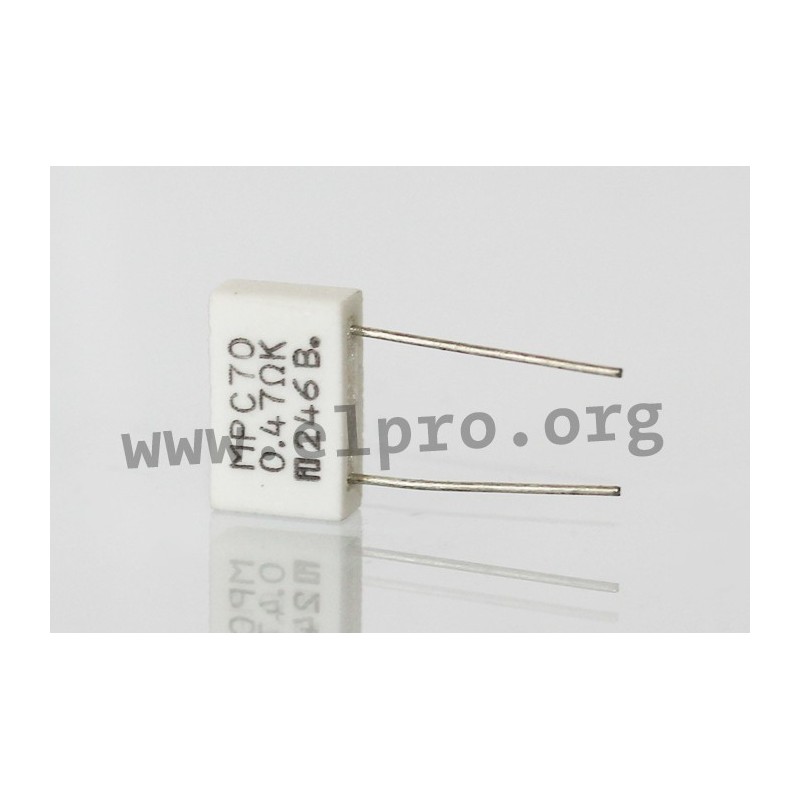

MPC71 0,47 R

metal band resistors MPC by Fukushima Futaba

• style: bulk
• pitch: 9mm
• series: MPC
• by Fukushima Futaba
• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)
• very small inductive reactanceery small inductive reactance
• uniform distribution of temperature over the resistive element
• hermetically closed ceramic case
• idle zones in the case are filled before shutting with special cement with ceramic powder.
• almost uniform heat dissipation over the entire housing body
• resistance tolerance: ±10%
• power rating: 5 W
• temperature coefficient: ±350ppm/°C
• insulation resistance: 10mΩ
• temperature range: -25 to +200°C
• solderability (3s): 350°C

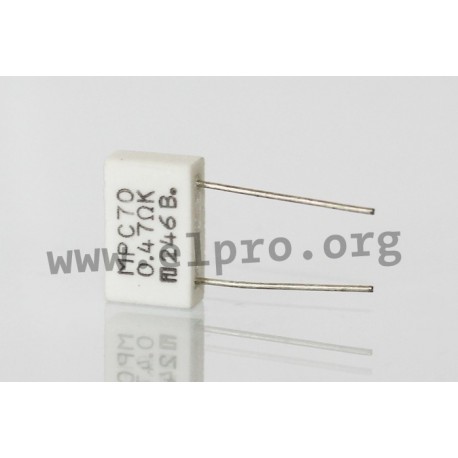

MPC series by Fukushima Futaba

MPC71 0,47 R

42600 MPC71 0,47 R MPC71 0R47 K MPC71 0R47 K metal band resistors MPC by Fukushima Futaba. • style: bulk• pitch: 9mm• series: MPC• by Fukushima Futaba• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)• very small inductive reactanceery small inductive reactance• uniform distribution of temperature over the resistive element• hermetically closed ceramic case• idle zones in the case are filled before shutting with special cement with ceramic powder.• almost uniform heat dissipation over the entire housing body• resistance tolerance: ±10%• power rating: 5 W• temperature coefficient: ±350ppm/°C• insulation resistance: 10mΩ• temperature range: -25 to +200°C• solderability (3s): 350°C

Specifications

manufacturer
Manufacturer's name MPC71 0R47 K

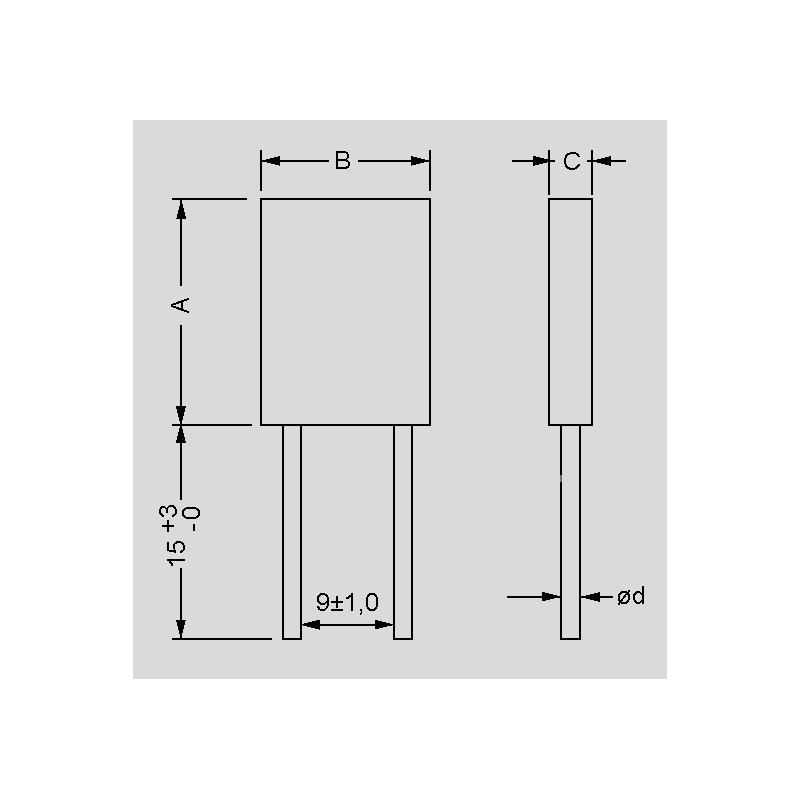

A [mm] 18
Resistance [Ω] 0,47
Power [W] 5
Tolerance [%] 10
B [mm] 14
D [mm] 0,6
C [mm] 5
Data Sheet

Unit price

0,539 €

Stock: 160
Next incoming goods:
CW 05/2025
400 units

Further delivery:
CW 32/2025

Minimum order quantity 10 units or
multiples of 10.
