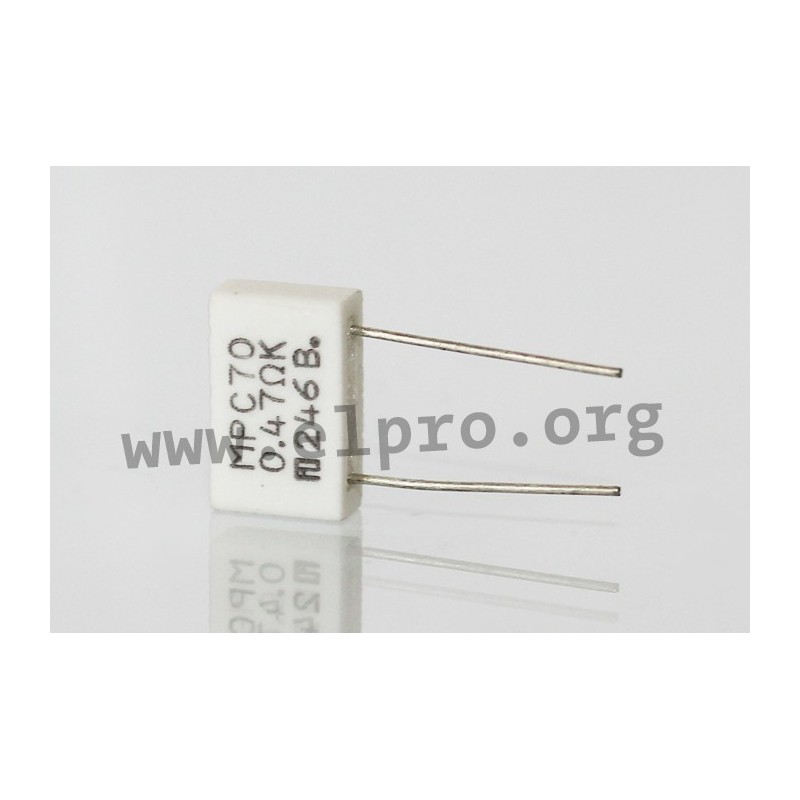

MPC70 0,33 R

metal band resistors MPC by Fukushima Futaba

• style: bulk
• pitch: 9mm
• series: MPC
• by Fukushima Futaba
• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)
• very small inductive reactanceery small inductive reactance
• uniform distribution of temperature over the resistive element
• hermetically closed ceramic case
• idle zones in the case are filled before shutting with special cement with ceramic powder.
• almost uniform heat dissipation over the entire housing body
• resistance tolerance: ±10%
• power rating: 2 W
• temperature coefficient: ±350ppm/°C
• insulation resistance: 10mΩ
• temperature range: -25 to +200°C
• solderability (3s): 350°C

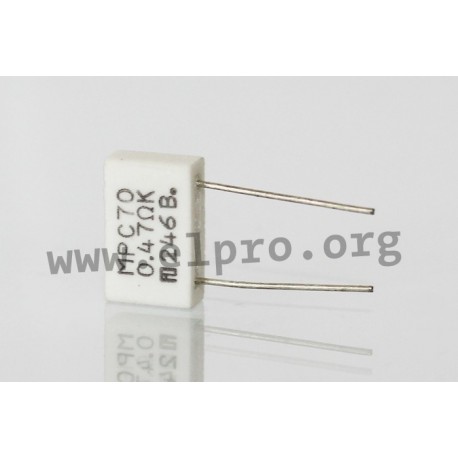

MPC series by Fukushima Futaba

MPC70 0,33 R

42594 MPC70 0,33 R MPC70 0R33 K MPC70 0R33 K metal band resistors MPC by Fukushima Futaba. • style: bulk• pitch: 9mm• series: MPC• by Fukushima Futaba• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)• very small inductive reactanceery small inductive reactance• uniform distribution of temperature over the resistive element• hermetically closed ceramic case• idle zones in the case are filled before shutting with special cement with ceramic powder.• almost uniform heat dissipation over the entire housing body• resistance tolerance: ±10%• power rating: 2 W• temperature coefficient: ±350ppm/°C• insulation resistance: 10mΩ• temperature range: -25 to +200°C• solderability (3s): 350°C

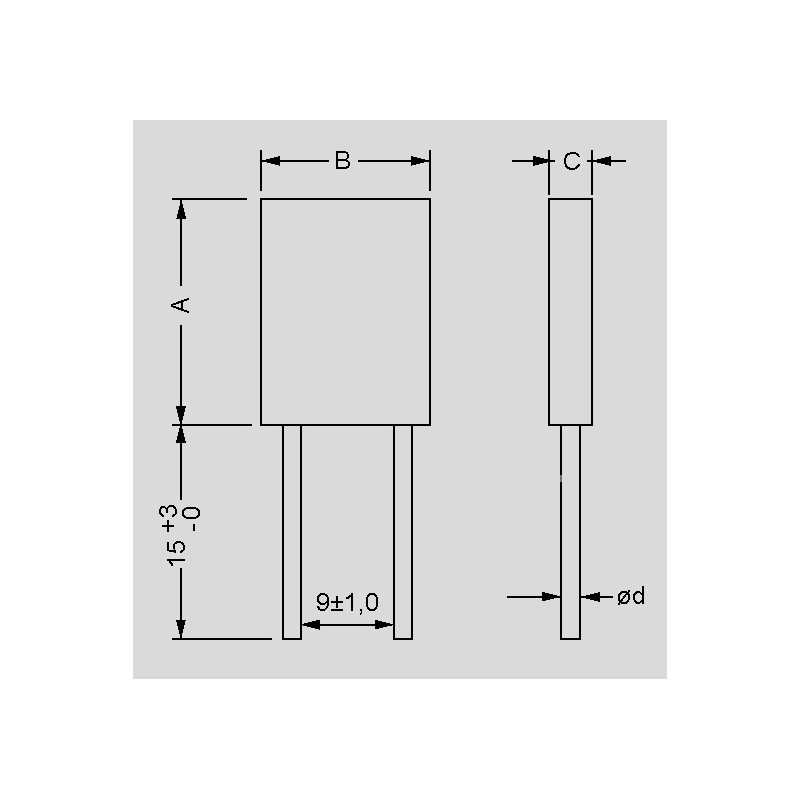

Specifications

manufacturer
Manufacturer's name MPC70 0R33 K
A [mm] 8
Resistance [Ω] 0,33
Power [W] 2
Tolerance [%] 10
B [mm] 13
D [mm] 0,6
C [mm] 4
Data Sheet

Unit price

0,451 €

Stock: 356
Next incoming goods:
CW 05/2025
1000 units

Further delivery:
CW 26/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
