SY-12W-K

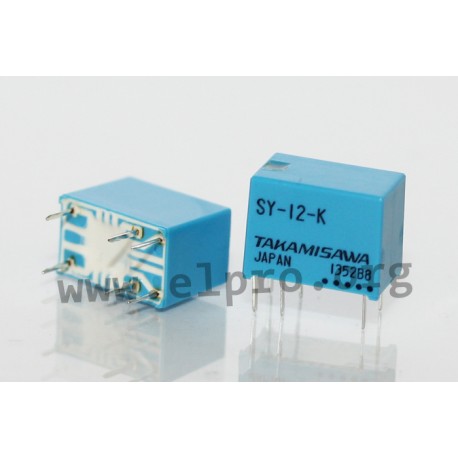

Fujitsu/Takamisawa PCB relay series SY

PCB relays in a 12,5x7,4x9,5mm housing with 1x changeover contact (SPDT) and 1A. These relays have gold-plated silver contacts and a high-sensivity coil with a rated power of 150 to 175mW. They are very reliable and available as a bifurcated type (SY-_W-K). We offer the following types of this Fujitsu/Takamisawa series: SY-5-K, SY-12-K, SY-24-K, SY-5W-K, SY-12W-K and SY-24W-K.

  • contact: 1x changeover (SPDT)
  • switching current: 1A
  • maximal switching voltage: 120V AC / 60V DC
  • operating temperature: -30 to +90°C
  • weight: 1,7g
SY-12W-K, Fujitsu/Takamisawa PCB relays, 1A, 1 changeover contact, SY series

SY-12W-K

113741 SY-12W-K SY-12W-K Fujitsu/Takamisawa PCB relay series SY. PCB relays in a 12,5x7,4x9,5mm housing with 1x changeover contact (SPDT) and 1A. These relays have gold-plated silver contacts and a high-sensivity coil with a rated power of 150 to 175mW. They are very reliable and available as a bifurcated type (SY-_W-K). We offer the following types of this Fujitsu/Takamisawa series: SY-5-K, SY-12-K, SY-24-K, SY-5W-K, SY-12W-K and SY-24W-K. contact: 1x changeover (SPDT) switching current: 1A maximal switching voltage: 120V AC / 60V DC operating temperature: -30 to +90°C weight: 1,7g

Specifications

manufacturer
Manufacturer's name SY-12W-K
Data Sheet

Unit price

1,38 €

Stock: 285
Further delivery:
CW 16/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
