RY24W-K

Fujitsu/Takamisawa PCB relay series RY

Miniature PCB relays in a plastic enclosure with the contact form DPDT (2 form C) and the contact material AgPd (Au plated). These relays have low height of 12,5mm and a weight of 5g. Furthermore, they have a switching current of 2A, a power output of 150 to 300mW and are wash tight (RTIII). We offer the types RY5W-K, RY12W-K and RY24W-K.

  • contact: DPDT (bifurcated)
  • contact material: AgPd, Au plated
  • rated current: 1A
  • maximal switching voltage: 120V AC / 60V DC
  • maximal switching power: 62,5VA / 24W
  • operate/release time: 6/3ms
  • testing voltage (FCC) coil/contact:(1min.): 1000V AC
  • testing voltage open contacts(1min.): 500V AC
  • minimal mechanical lifetime: 20x106 operations
  • minimal electrical lifetime: 200x103 operations (0,5A, 120V AC)
  • operating temperature: -30 to +90°C
  • weight (approximately): 5g

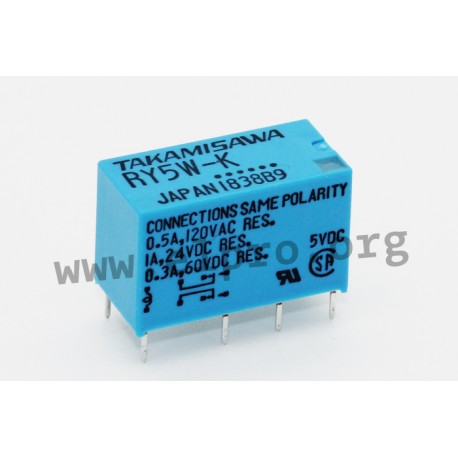

RY-24W-K, Fujitsu/Takamisawa PCB relays, 1A, DPDT, RY series

RY24W-K

113594 RY24W-K RY-24W-K RY-24W-K Fujitsu/Takamisawa PCB relay series RY. Miniature PCB relays in a plastic enclosure with the contact form DPDT (2 form C) and the contact material AgPd (Au plated). These relays have low height of 12,5mm and a weight of 5g. Furthermore, they have a switching current of 2A, a power output of 150 to 300mW and are wash tight (RTIII). We offer the types RY5W-K, RY12W-K and RY24W-K. contact: DPDT (bifurcated)contact material: AgPd, Au platedrated current: 1Amaximal switching voltage: 120V AC / 60V DCmaximal switching power: 62,5VA / 24Woperate/release time: 6/3mstesting voltage (FCC) coil/contact:(1min.): 1000V ACtesting voltage open contacts(1min.): 500V ACminimal mechanical lifetime: 20x106 operationsminimal electrical lifetime: 200x103 operations (0,5A, 120V AC)operating temperature: -30 to +90°Cweight (approximately): 5g

Specifications

manufacturer
Manufacturer's name RY-24W-K
Coil resistance [Ω] 2880
Nominal voltage [V] 24
Switching current [A] 1
Response voltage [V] 16,8
Release voltage [V] 1,2
Nominal capacity [mW] 200
Data Sheet

Unit price

1,04 €

Stock: 776
Next incoming goods:
CW 04/2025
1000 units

Further delivery:
CW 15/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
