> Passive elements>Relays>Electromechanical relays>Fujitsu PCB relays, 2A, 2 changeover contacts, NA and FTR-B4 series>NA 5V W-K

Manufacturers

NA 5V W-K

Fujitsu PCB relays

• 2 changeover contacts
• slim type relay
• testing voltage coil/contact: 1500V AC
• testing voltage contact/contact: 1000V AC
• operating temperature: -40 to +85°C
• operate/release time: 6/4ms
• switching power: 62,5VA / 30W
• switching voltage AC/DC: 250/220
• rated current: 2A

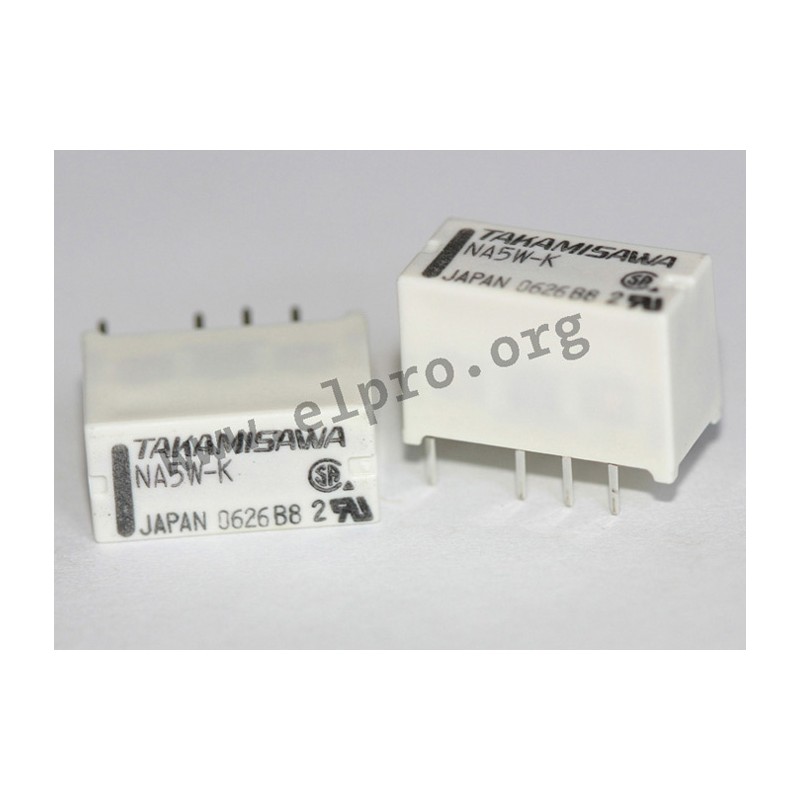

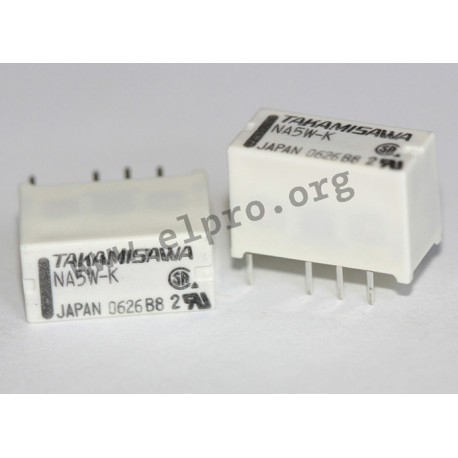

Fujitsu Takamisawa NA series

NA 5V W-K

11998 NA 5V W-K NA-5W-K NA-5W-K Fujitsu PCB relays. * 2 changeover contacts* slim type relay* testing voltage coil/contact: 1500V AC* testing voltage contact/contact: 1000V AC* operating temperature: -40 to +85°C* operate/release time: 6/4ms* switching power: 62,5VA / 30W* switching voltage AC/DC: 250/220* rated current: 2A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name NA-5W-K
Rated current [mA] 28
Nominal resistance [Ω] 178
Switching current [A] 2
Response voltage [V] 3,75
Max. switching voltage [V] 250
Max. switching power [VA] 62,5
Data Sheet

Unit price

1,29 €

Stock: 2
