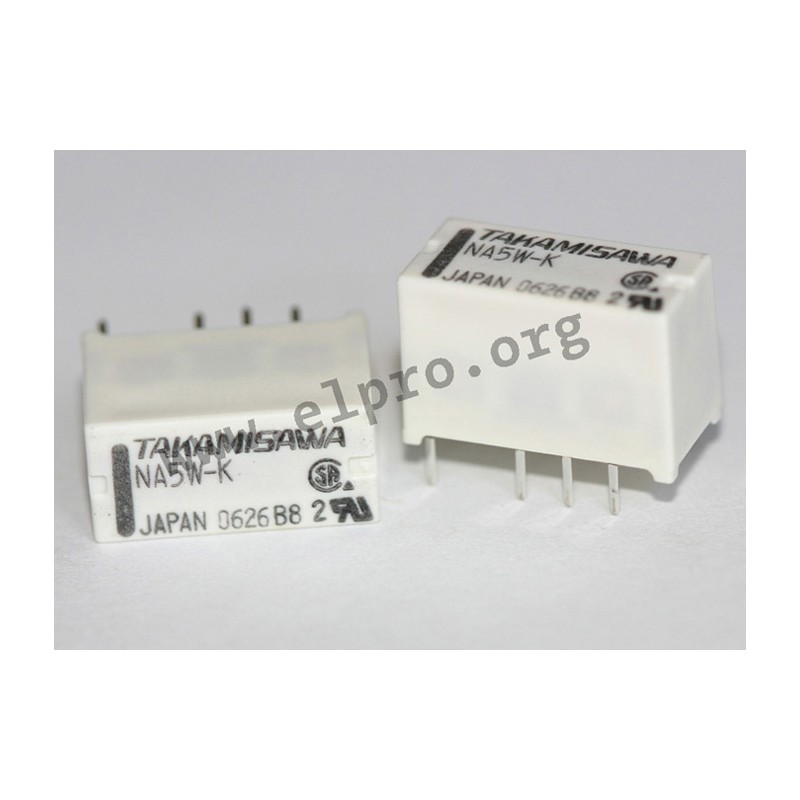

NA 24V W-K

Fujitsu PCB relays

• 2 changeover contacts
• slim type relay
• testing voltage coil/contact: 1500V AC
• testing voltage contact/contact: 1000V AC
• operating temperature: -40 to +85°C
• operate/release time: 6/4ms
• switching power: 62,5VA / 30W
• switching voltage AC/DC: 250/220
• rated current: 2A

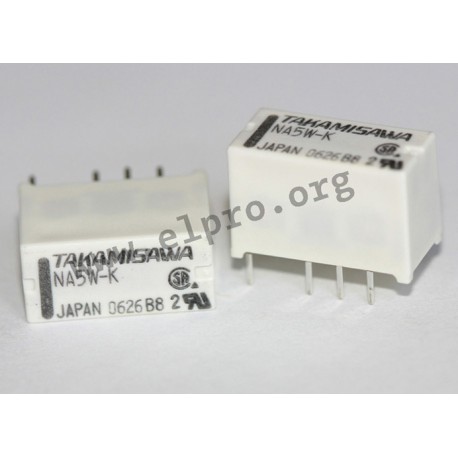

Fujitsu Takamisawa NA series

NA 24V W-K

11997 NA 24V W-K NA-24W-K NA-24W-K Fujitsu PCB relays. • 2 changeover contacts• slim type relay• testing voltage coil/contact: 1500V AC• testing voltage contact/contact: 1000V AC• operating temperature: -40 to +85°C• operate/release time: 6/4ms• switching power: 62,5VA / 30W• switching voltage AC/DC: 250/220• rated current: 2A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name NA-24W-K
Switching current [A] 2
Max. switching voltage [V] 250
Max. switching power [VA] 62,5
Data Sheet

Unit price

1,24 €

Stock: 3

Minimum order quantity 1 to 3 units or multiples of 10 plus 0 to 3 .
