JV-5-KT

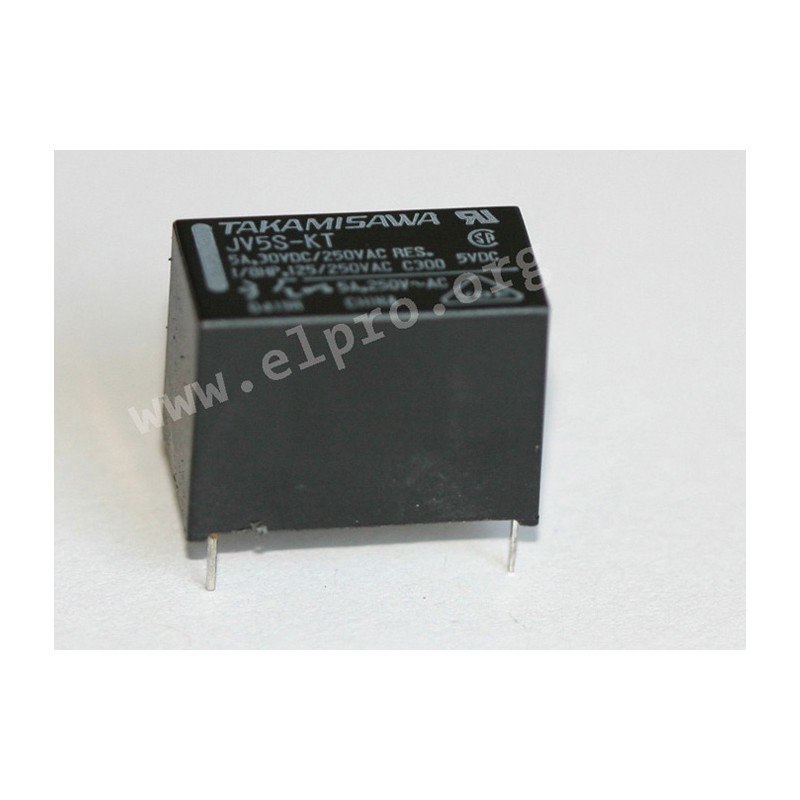

PRC relays 5A, JV series by Fujitsu/Takamisawa

* series: JV

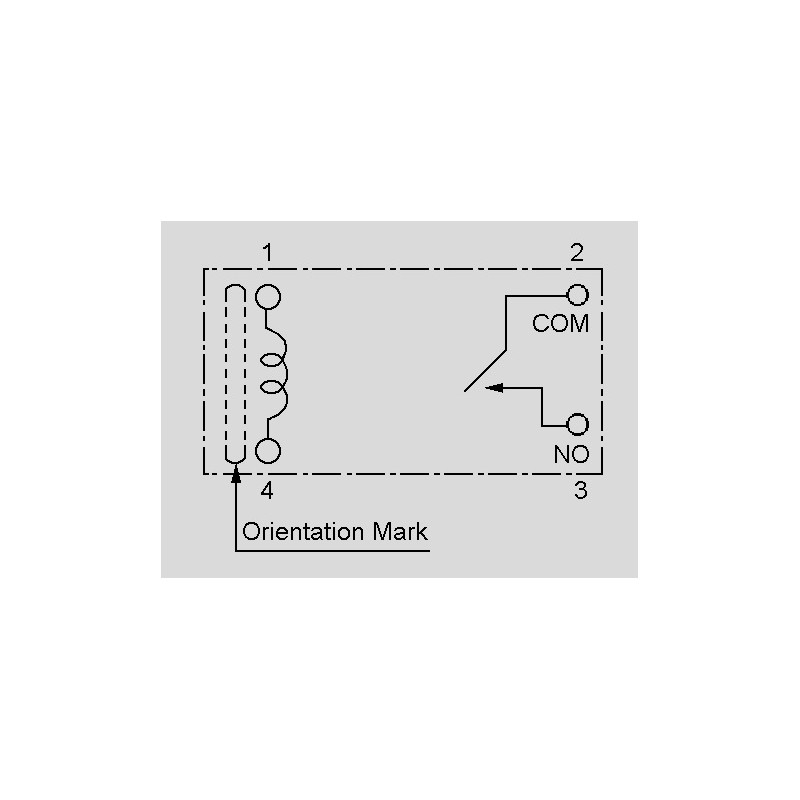

* contact: SPST-NO

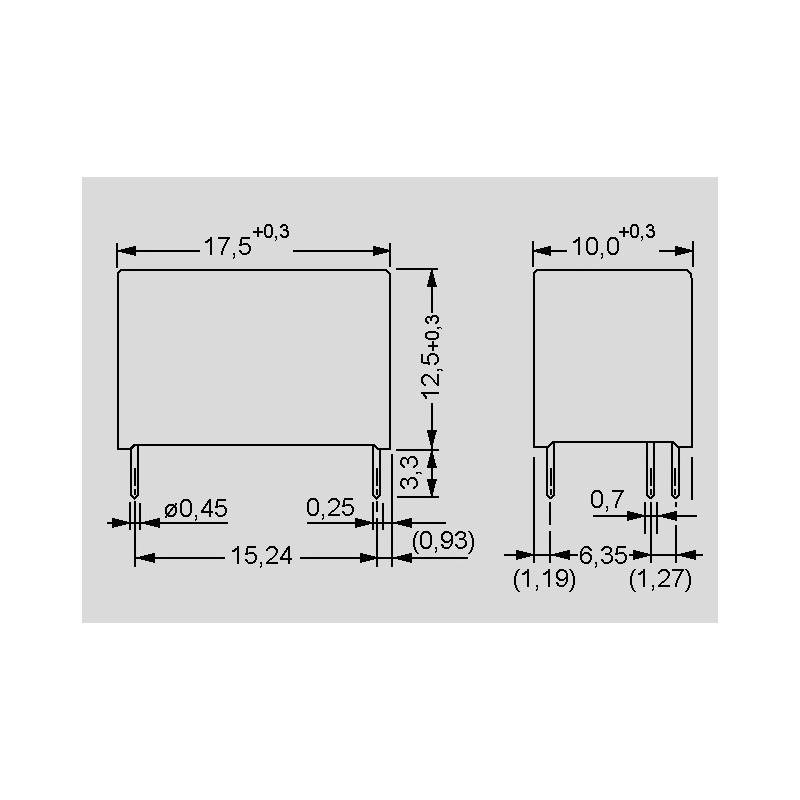

* housing: 17,5x10x12,5mm
* JV_SKT: high sensitivity coil 200mW
* JV_KT: standard coil 300mW
* 5kV dielectric strength coil/contact
* optimized height of 12,5mm
* plastic sealed, RTIII
* contact material: AgNi, gold plated
* rated current: 5A
* max. switching current: 5A
* max. switching voltage: 250V AC / 150V DC
* max. switching power: 1250VA / 150W
* creepage/clearance: 10/10mm
* perate/release time: 8/4ms
* testing voltage coil/contact: 5000V AC
* testing voltage opening contact: 1000V AC
* lifetime mechanical: 20x106 operations
* lifetime electrical: 100x105 operations
* operating temperature: -40...+105°C
* by Fujitsu/Takamisawa
* weight approx.: 13g

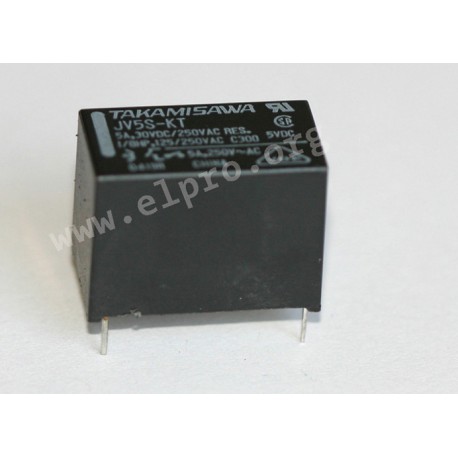

Fujitsu Takamisawa JV series

JV-5-KT

41519 JV-5-KT JV-5-KT PRC relays 5A, JV series by Fujitsu/Takamisawa. * series: JV* contact: SPST-NO* housing: 17,5x10x12,5mm* JV_SKT: high sensitivity coil 200mW* JV_KT: standard coil 300mW* 5kV dielectric strength coil/contact* optimized height of 12,5mm* plastic sealed, RTIII* contact material: AgNi, gold plated* rated current: 5A* max. switching current: 5A* max. switching voltage: 250V AC / 150V DC* max. switching power: 1250VA / 150W* creepage/clearance: 10/10mm* perate/release time: 8/4ms* testing voltage coil/contact: 5000V AC* testing voltage opening contact: 1000V AC* lifetime mechanical: 20x106 operations* lifetime electrical: 100x105 operations* operating temperature: -40...+105°C* by Fujitsu/Takamisawa* weight approx.: 13g

Specifications

manufacturer
Manufacturer's name JV-5-KT
Nominal resistance [Ω] 83,3
Response voltage [V] 3,3
Release voltage [V] 0,25
Nominal capacity [mW] 300
Data Sheet

Unit price

1,11 €

Stock: 560
Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
