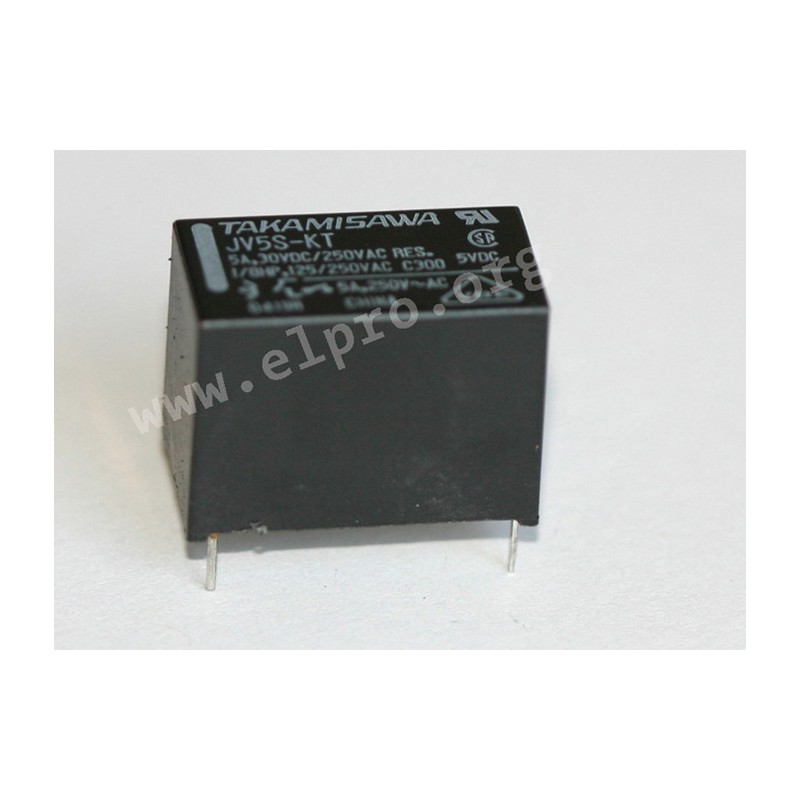

JV 24V S-KT

PRC relays 5A, JV series by Fujitsu/Takamisawa

• series: JV

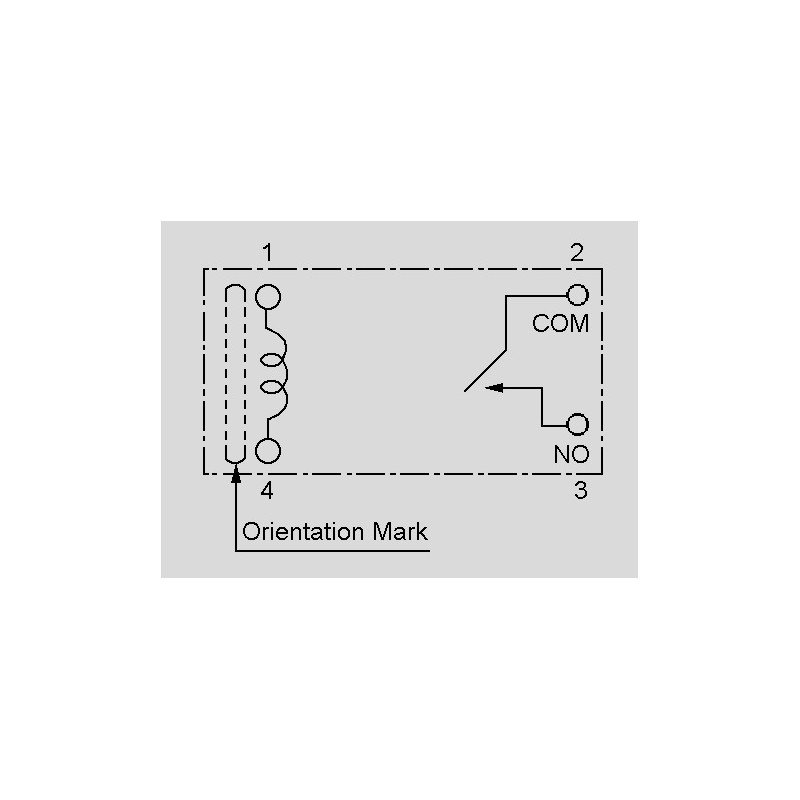

• contact: SPST-NO

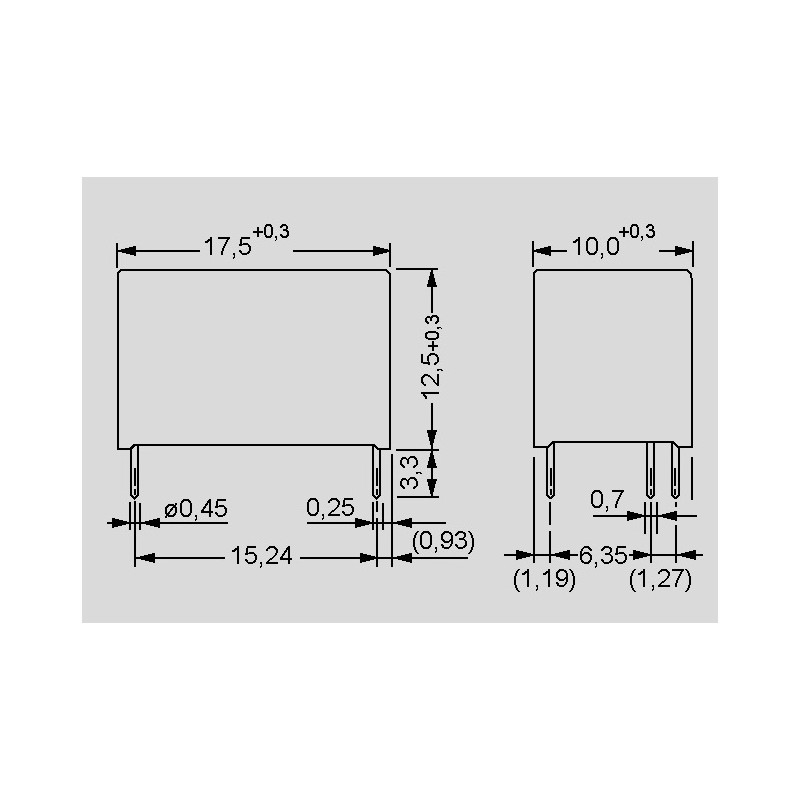

• housing: 17,5x10x12,5mm
• JV_SKT: high sensitivity coil 200mW
• JV_KT: standard coil 300mW
• 5kV dielectric strength coil/contact
• optimized height of 12,5mm
• plastic sealed, RTIII
• contact material: AgNi, gold plated
• rated current: 5A
• max. switching current: 5A
• max. switching voltage: 250V AC / 150V DC
• max. switching power: 1250VA / 150W
• creepage/clearance: 10/10mm
• perate/release time: 8/4ms
• testing voltage coil/contact: 5000V AC
• testing voltage opening contact: 1000V AC
• lifetime mechanical: 20x106 operations
• lifetime electrical: 100x105 operations
• operating temperature: -40...+105°C
• by Fujitsu/Takamisawa
• weight approx.: 13g

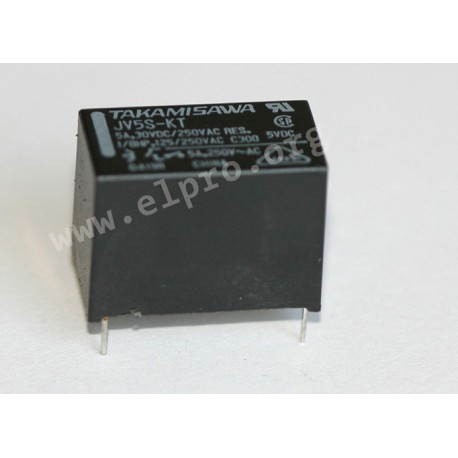

Fujitsu Takamisawa JV series

JV 24V S-KT

11989 JV 24V S-KT JV-24S-KT JV-24S-KT PRC relays 5A, JV series by Fujitsu/Takamisawa. * series: JV* contact: SPST-NO* housing: 17,5x10x12,5mm* JV_SKT: high sensitivity coil 200mW* JV_KT: standard coil 300mW* 5kV dielectric strength coil/contact* optimized height of 12,5mm* plastic sealed, RTIII* contact material: AgNi, gold plated* rated current: 5A* max. switching current: 5A* max. switching voltage: 250V AC / 150V DC* max. switching power: 1250VA / 150W* creepage/clearance: 10/10mm* perate/release time: 8/4ms* testing voltage coil/contact: 5000V AC* testing voltage opening contact: 1000V AC* lifetime mechanical: 20x106 operations* lifetime electrical: 100x105 operations* operating temperature: -40...+105°C* by Fujitsu/Takamisawa* weight approx.: 13g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name JV-24S-KT
Data Sheet

Unit price

0,878 €

Stock: 2.622

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
