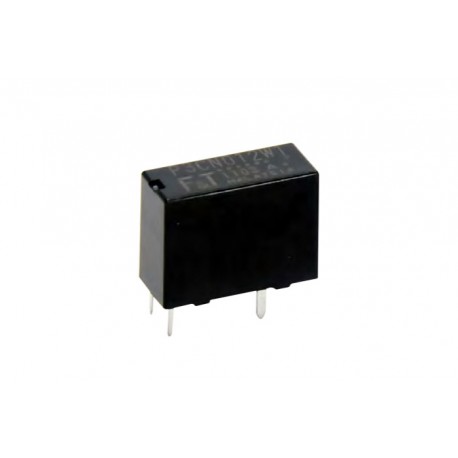

FTR-P3CN012W1

Fujitsu high-current relay series FTR-P3

  • 1-pole power relays in a 17,4x7,2x13,5mm housing
  • suitable for automotive applications
  • with 1 changeover contact (SPDT), a high contact capacity as well as a service life of 10x106 (mechanical) resp. 100x103 cycles (electrical)
  • contact distance: 0,25mm
  • operating temperature: -40 to +85°C
  • contact material: AgSnO2In
  • rated current: 25A (for 12V car batteries)
FTR-P3CN012W1, Fujitsu high-current relays, 25A, 1 changeover contact, FTR-P3 series

FTR-P3CN012W1

156241 FTR-P3CN012W1 FTR-P3CN012W1 Fujitsu high-current relay series FTR-P3. 1-pole power relays in a 17,4x7,2x13,5mm housing suitable for automotive applications  with 1 changeover contact (SPDT), a high contact capacity as well as a service life of 10x106 (mechanical) resp. 100x103 cycles (electrical)   contact distance: 0,25mm operating temperature: -40 to +85°C contact material: AgSnO2In rated current: 25A (for 12V car batteries)

Specifications

manufacturer
Manufacturer's name FTR-P3CN012W1
Nominal voltage [V DC] 12
Coil resistance [Ω] 240
Response voltage [V] 7,3
Release voltage [V] 1
Nominal capacity [mW] 600
Data Sheet

Unit price

1,23 €

Stock: 0
Next incoming goods:
CW 50/2024
1150 units

Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
