FTR-LYAA024Y

PCB relays series FTR-LYAA by Fujitsu

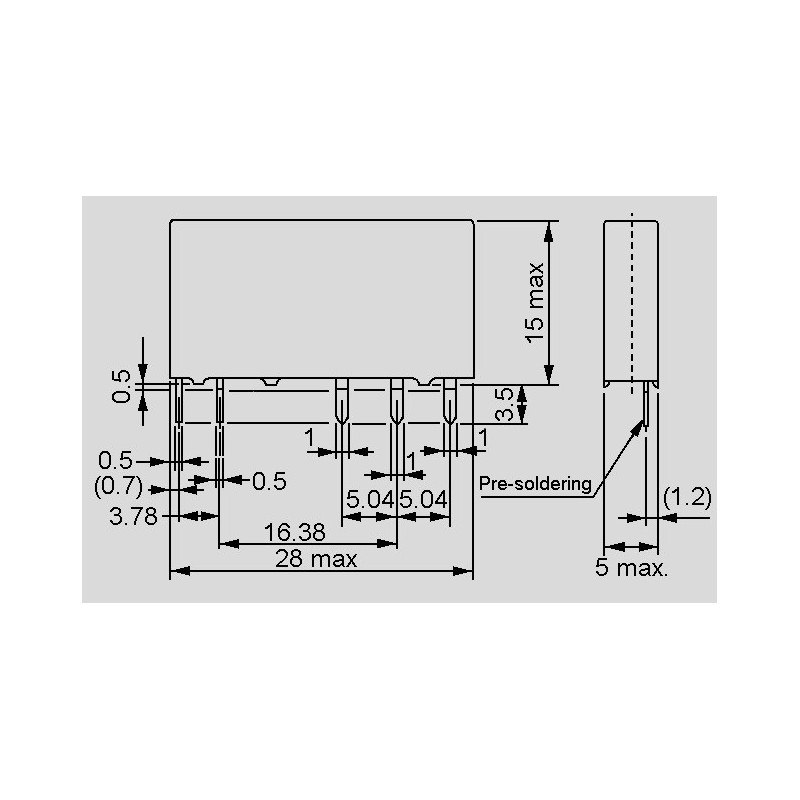

This PCB relay in a slim housing which is 5mm possesses a sensitive coil of 170mW. It is characterized by a high insulation of 4kV and is also marked by a 8mm creepage/clearance. The devices conform to the protection class RTIII. We are offering the following types by Fujitsu: FTR-LYAA012Y and FTR-LYAA024Y.

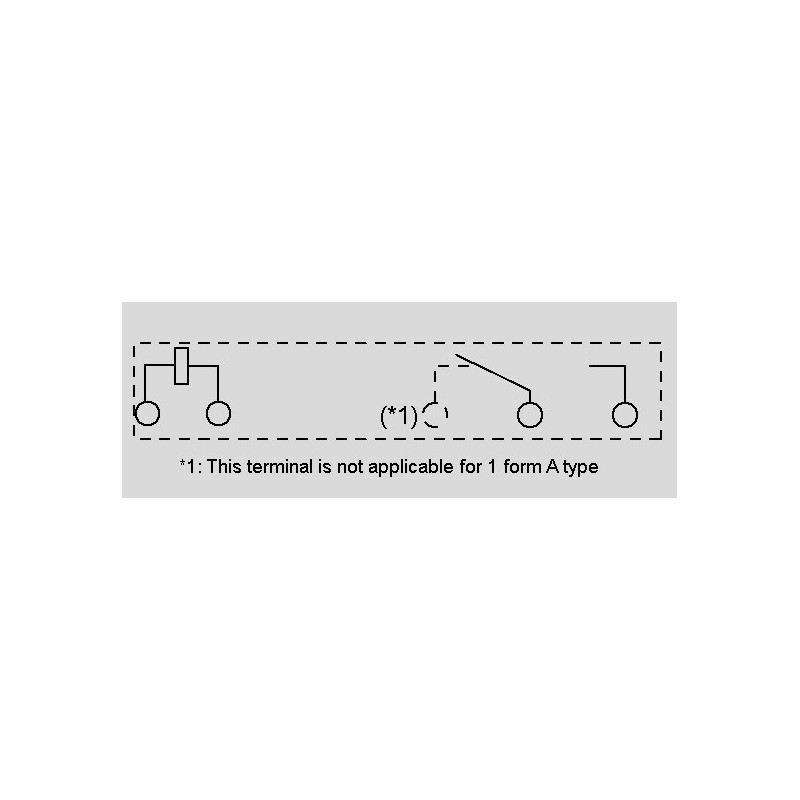

• contact: SPST-NO
• contact material: AgSnO2
• rated current: 6A
• max. switching current: 6A
• max. switching voltage: 250V AC / 24V DC
• max. switching power: 1500VA / 144W

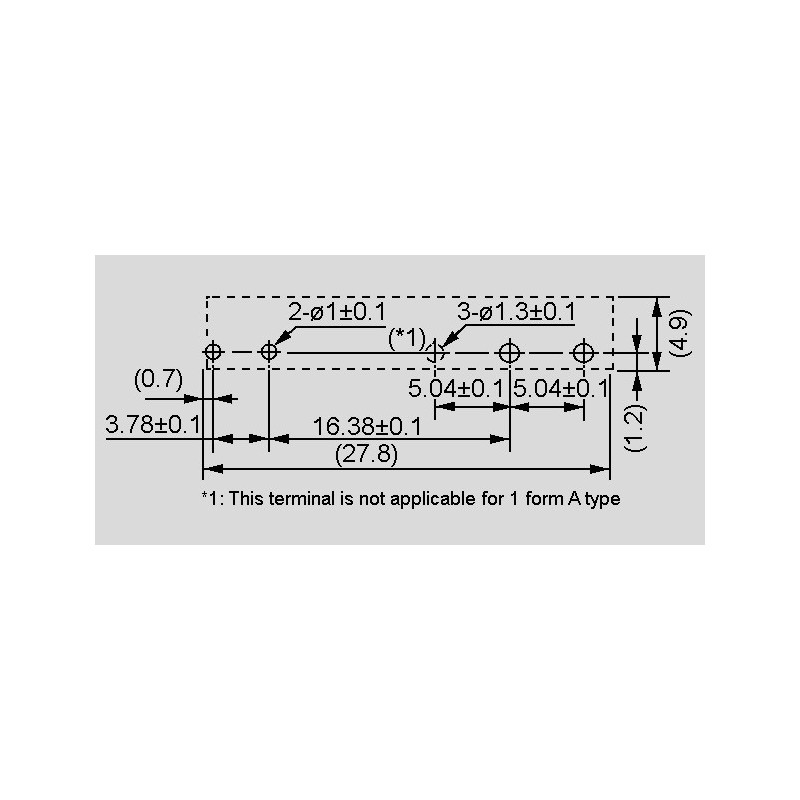

• creepage/clearance: 8/8mm
• operate/release time, max.: 8/4ms
• testing voltage
coil/contact: 4000V AC
opening contact: 1000V AC
• lifetime
mechanical, min.: 10x106 operations
electrical, min.: 50x103 operations
• operating temperature: -40 to +85°C
• weight approx.: 5g

FTR-LYAA024Y, Fujitsu PCB relays, 6A, 1 normally open contact, FTR-LYAA series

FTR-LYAA024Y

109523 FTR-LYAA024Y FTR-LYAA024Y PCB relays series FTR-LYAA by Fujitsu. This PCB relay in a slim housing which is 5mm possesses a sensitive coil of 170mW. It is characterized by a high insulation of 4kV and is also marked by a 8mm creepage/clearance. The devices conform to the protection class RTIII. We are offering the following types by Fujitsu: FTR-LYAA012Y and FTR-LYAA024Y.• contact: SPST-NO• contact material: AgSnO2• rated current: 6A• max. switching current: 6A• max. switching voltage: 250V AC / 24V DC• max. switching power: 1500VA / 144W• creepage/clearance: 8/8mm• operate/release time, max.: 8/4ms• testing voltagecoil/contact: 4000V ACopening contact: 1000V AC• lifetimemechanical, min.: 10x106 operationselectrical, min.: 50x103 operations• operating temperature: -40 to +85°C• weight approx.: 5g

Specifications

manufacturer
Manufacturer's name FTR-LYAA024Y
Nominal voltage [V DC] 24
Coil resistance [Ω] 3390
Response voltage [V] 15,9
Nominal capacity [mW] 170
Data Sheet

Unit price

1,85 €

Stock: 1250
