FTR-LYCA005V

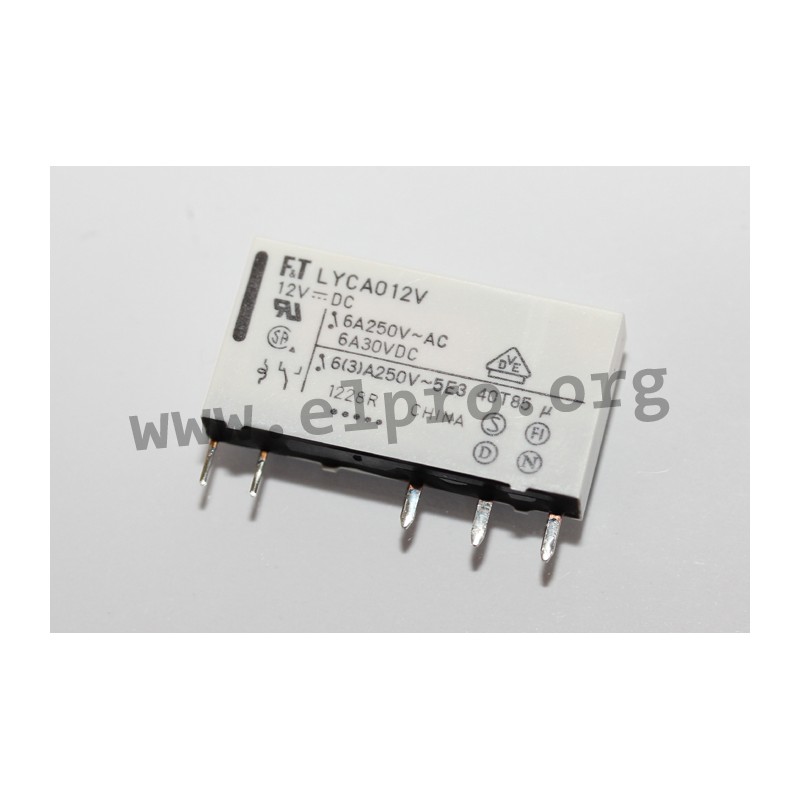

PCB relais series FTR-LYCA by Fujitsu

• slim housing: 5mm
• sensitive coil: 170mW
• high insulation 4kV, 8mm creepage/clearance
• wash tight enclosure IP67

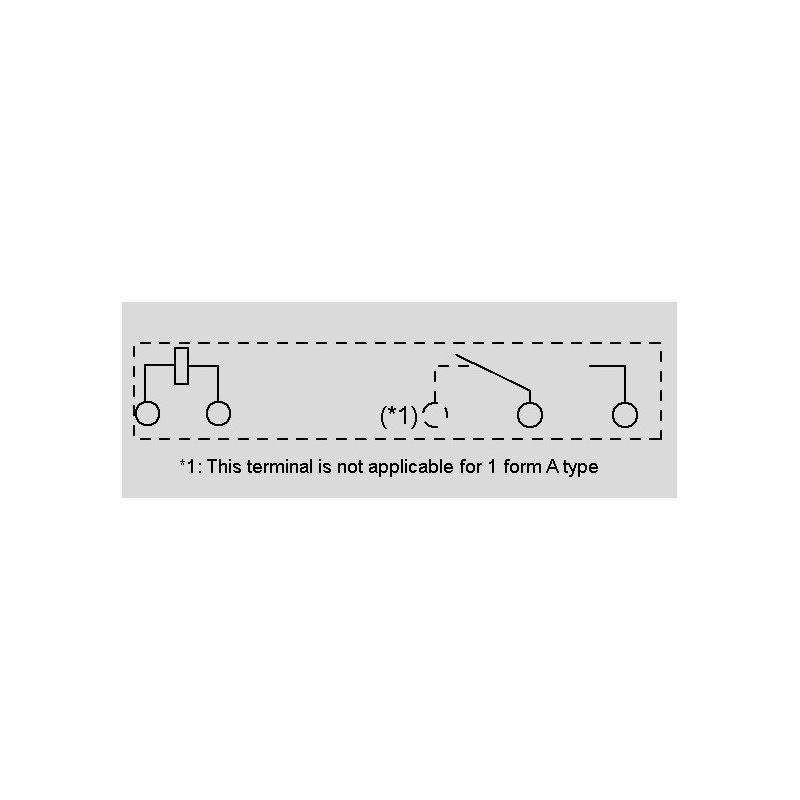

• contact: SPDT
• contact material: AgSnO2
• rated current: 6A
• max. switching current: 6A
• max. switching voltage: 250V AC, 24V DC
• max. switching power: 1500VA/144W
• creepage/clearance: 8/8mm
• operate/release time: 8/4ms
• testing voltage coil/contact: 4000V AC
• testing voltage opening contact: 1000V AC
• lifetime mechanical: 10x106 operations
• lifetime electrical: 50x103 operations

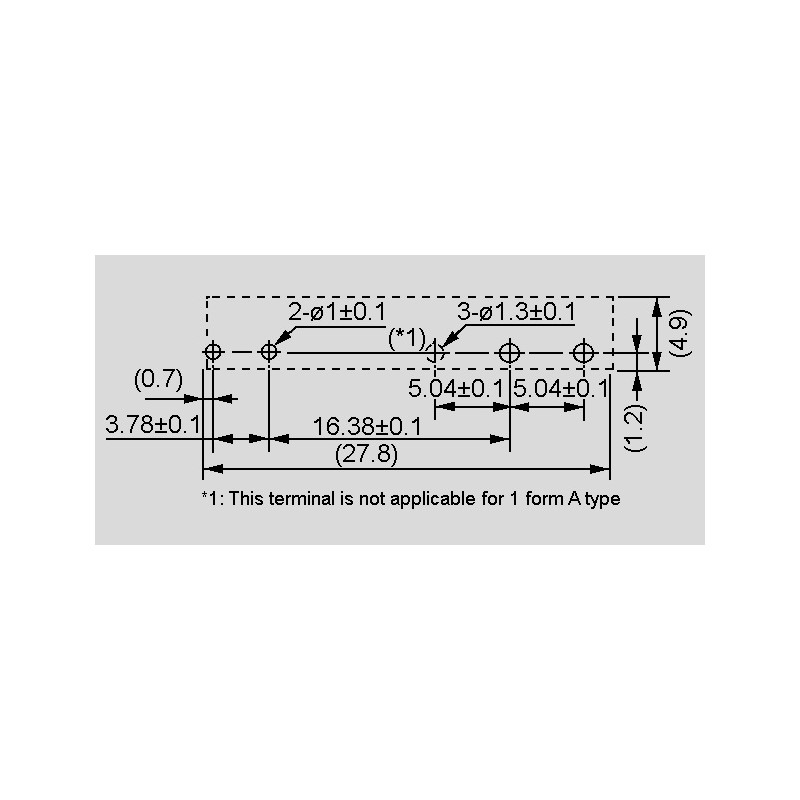

• housing: 28x5x15mm
• operating temperature: -40 to +85°C
• by Fujitsu Takamisawa
• weight, approx.: 5g

FTR-LYCA_

FTR-LYCA005V

38816 FTR-LYCA005V FTR-LYCA005V PCB relais series FTR-LYCA by Fujitsu. • slim housing: 5mm• sensitive coil: 170mW• high insulation 4kV, 8mm creepage/clearance• wash tight enclosure IP67• contact: SPDT• contact material: AgSnO2• rated current: 6A• max. switching current: 6A• max. switching voltage: 250V AC, 24V DC• max. switching power: 1500VA/144W• creepage/clearance: 8/8mm• operate/release time: 8/4ms• testing voltage coil/contact: 4000V AC• testing voltage opening contact: 1000V AC• lifetime mechanical: 10x106 operations• lifetime electrical: 50x103 operations• housing: 28x5x15mm• operating temperature: -40 to +85°C• by Fujitsu Takamisawa• weight, approx.: 5g

Specifications

manufacturer
Manufacturer's name FTR-LYCA005V
Nominal capacity [W] 0,17
Switching current [A] 6
Nominal resistance [Ω] 147
Response voltage [V] 3,3
Release voltage [V] 0,25
Data Sheet

Unit price

2,29 €

Stock: 1210
Next incoming goods:
CW 17/2025
1350 units

Further delivery:
CW 18/2025

Minimum order quantity 5 units or
multiples of 5.
