FTR-LYCA012Y

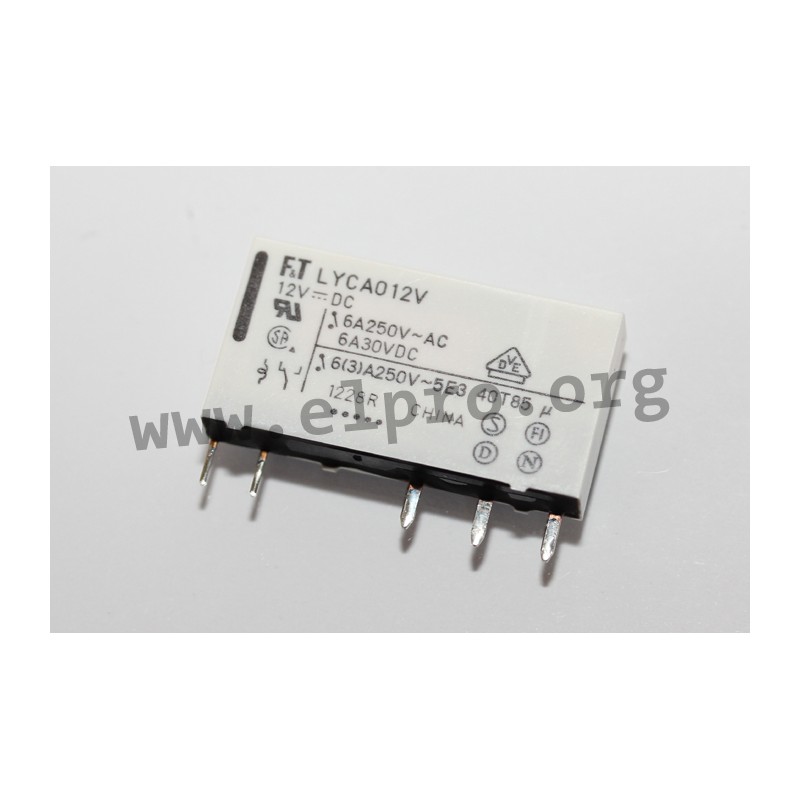

PCB relais series FTR-LYCA by Fujitsu

• slim housing: 5mm
• sensitive coil: 170mW
• high insulation 4kV, 8mm creepage/clearance
• wash tight enclosure IP67

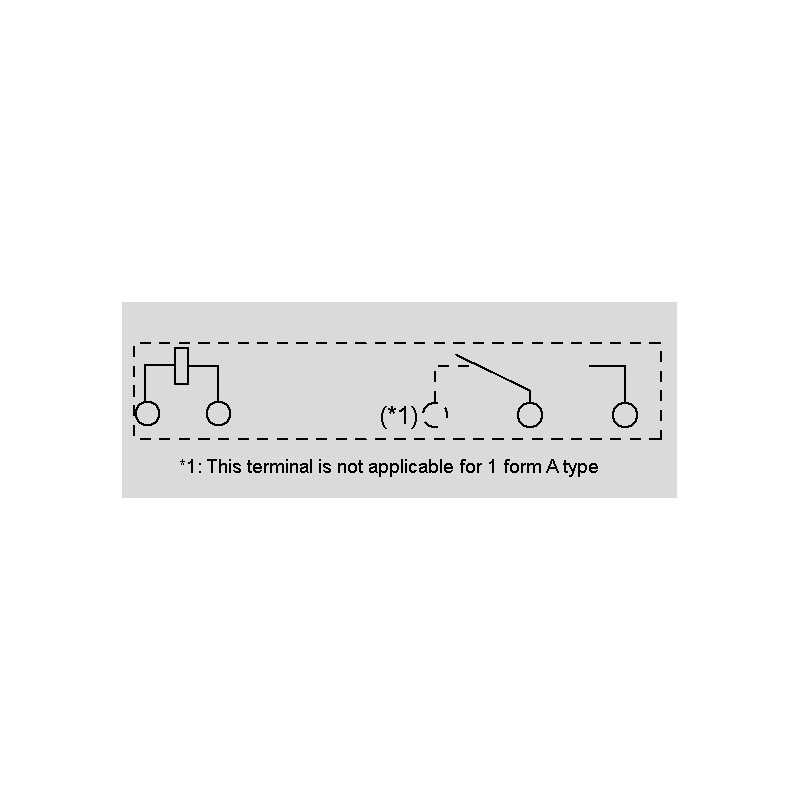

• contact: SPDT
• contact material: AgSnO2
• rated current: 6A
• max. switching current: 6A
• max. switching voltage: 250V AC, 24V DC
• max. switching power: 1500VA/144W
• creepage/clearance: 8/8mm
• operate/release time: 8/4ms
• testing voltage coil/contact: 4000V AC
• testing voltage opening contact: 1000V AC
• lifetime mechanical: 10x106 operations
• lifetime electrical: 50x103 operations

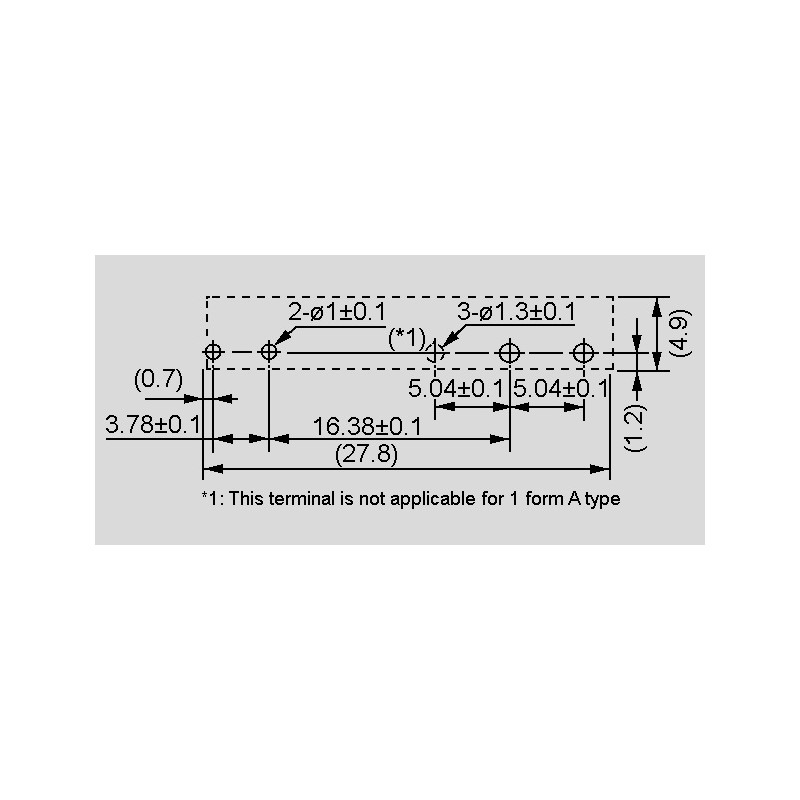

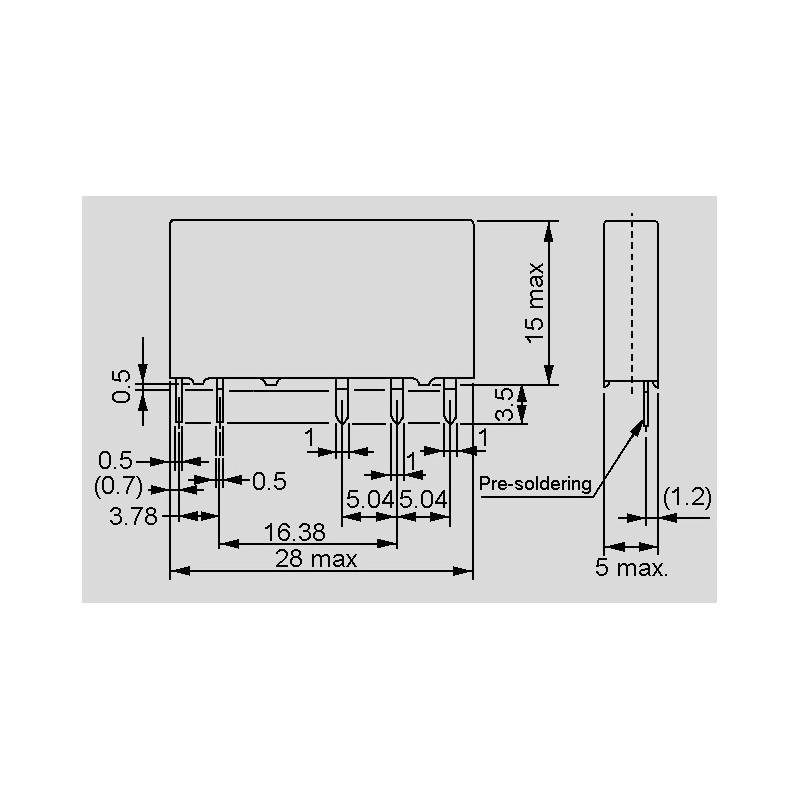

• housing: 28x5x15mm
• operating temperature: -40 to +85°C
• by Fujitsu Takamisawa
• weight, approx.: 5g

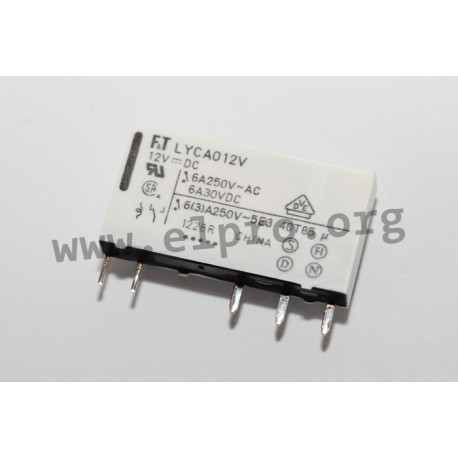

PCB relays series FTR-LY

FTR-LYCA012Y

109524 FTR-LYCA012Y FTR-LYCA012Y PCB relais series FTR-LYCA by Fujitsu. • slim housing: 5mm• sensitive coil: 170mW• high insulation 4kV, 8mm creepage/clearance• wash tight enclosure IP67• contact: SPDT• contact material: AgSnO2• rated current: 6A• max. switching current: 6A• max. switching voltage: 250V AC, 24V DC• max. switching power: 1500VA/144W• creepage/clearance: 8/8mm• operate/release time: 8/4ms• testing voltage coil/contact: 4000V AC• testing voltage opening contact: 1000V AC• lifetime mechanical: 10x106 operations• lifetime electrical: 50x103 operations• housing: 28x5x15mm• operating temperature: -40 to +85°C• by Fujitsu Takamisawa• weight, approx.: 5g

Specifications

manufacturer
Manufacturer's name FTR-LYCA012Y
Nominal voltage [V DC] 12
Coil resistance [Ω] 847
Response voltage [V] 7,9
Nominal capacity [mW] 170
Data Sheet

Unit price

2,09 €

Stock: 2205
Further delivery:
CW 22/2025

Minimum order quantity 5 units or
multiples of 5.
