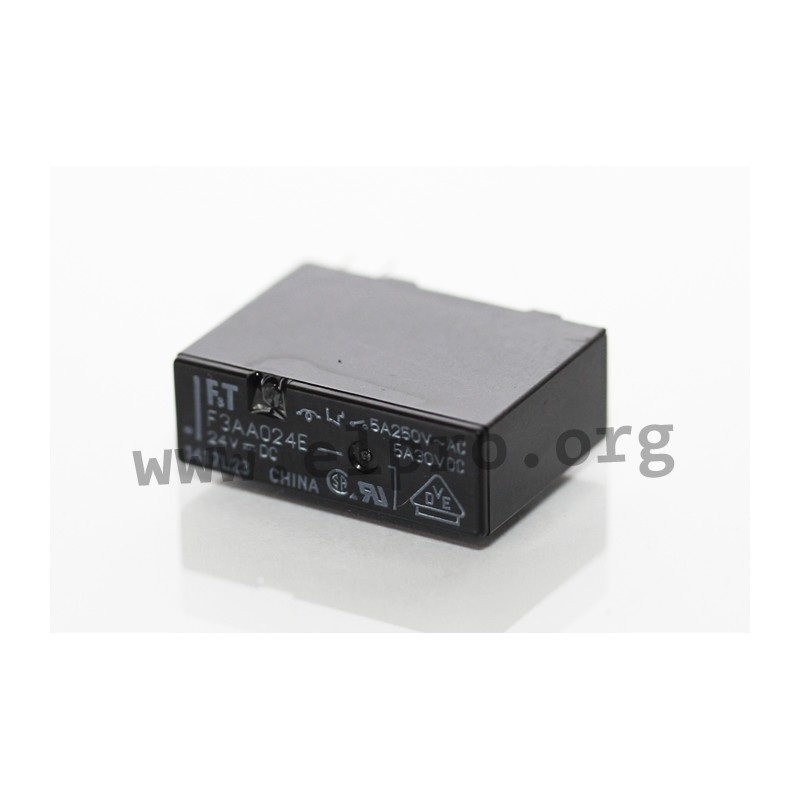

FTR-F3AA024E-HA

PCB relays 5A, FTR-F3 by Fujitsu/Takamisawa

* series: FTR-F3
* contact: SPST-NO

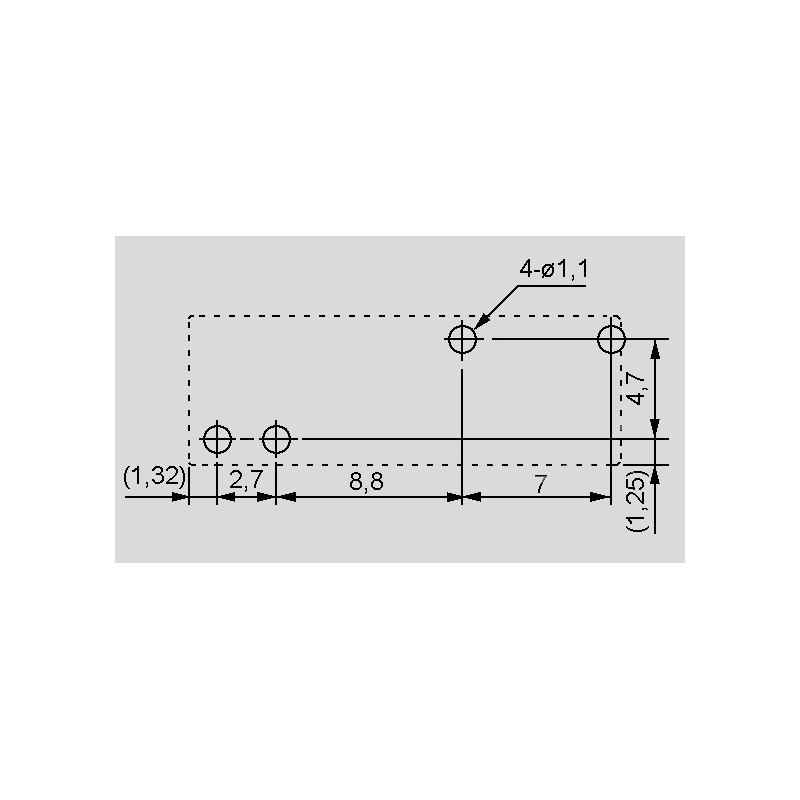

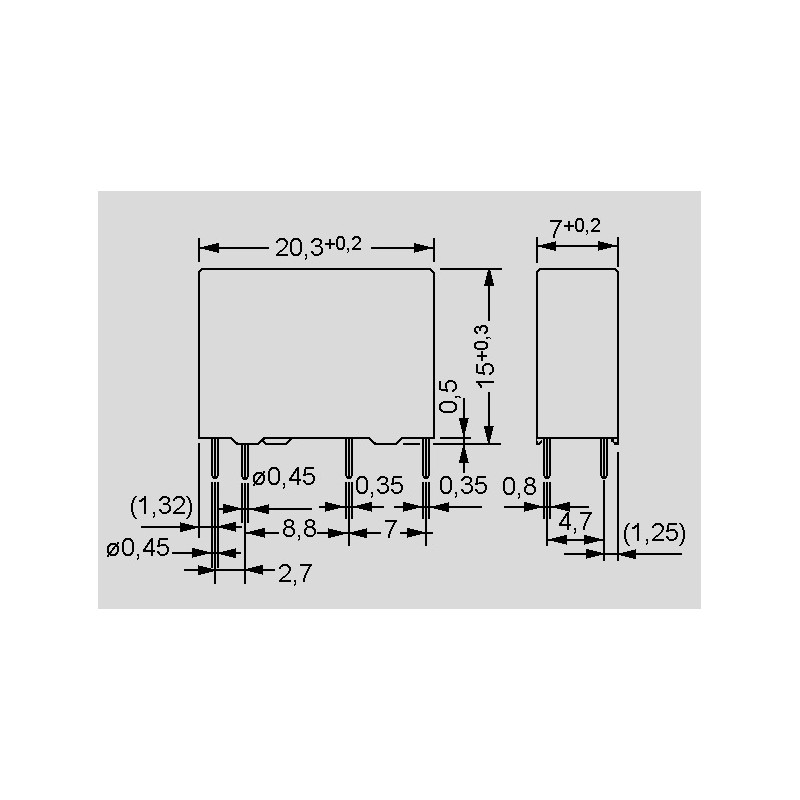

* housing: 20.3x7x15mm
* slim type with 7mm width
• high current 5A
* high insulation: min. 6mm between coli and contact
* cadmium free contacts
* wash tight construction RTIII
* contact material: AgNi
* rated switching current: 5A
* max. switching voltage: 277V AC / 30V DC
* max. switching power: 750VA/90W
* creepage/clearance: 6/6mm
* operate/release time: 10/10ms
* testing voltage coil/contact (1min.): 4000V AC
* testing voltage open contact (1min.): 750V AC
* min. lifetime mechanical: 5x106 operations
* min. lifetime electrical: 200x103 operations
* operating temperature: -40...+70°C
* by Fujitsu/Takamisawa
* weight approx.: 4g

FTR-F3 series by Fujitsu/Takamisawa

FTR-F3AA024E-HA

41595 FTR-F3AA024E-HA FTR-F3AA024E-HA PCB relays 5A, FTR-F3 by Fujitsu/Takamisawa. * series: FTR-F3* contact: SPST-NO* housing: 20.3x7x15mm* slim type with 7mm width• high current 5A* high insulation: min. 6mm between coli and contact* cadmium free contacts* wash tight construction RTIII* contact material: AgNi* rated switching current: 5A* max. switching voltage: 277V AC / 30V DC* max. switching power: 750VA/90W* creepage/clearance: 6/6mm* operate/release time: 10/10ms* testing voltage coil/contact (1min.): 4000V AC* testing voltage open contact (1min.): 750V AC* min. lifetime mechanical: 5x106 operations* min. lifetime electrical: 200x103 operations* operating temperature: -40...+70°C* by Fujitsu/Takamisawa* weight approx.: 4g

Specifications

manufacturer
Manufacturer's name FTR-F3AA024E-HA
Max. operating voltage [V] 57,6
Data Sheet

Unit price

0,743 €

Stock: 436
Further delivery:
CW 23/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
