FTR-F1CD012V

PCB relays 5-8A, FTR-F1 series by Fujitsu/Takamisawa

• series: FTR-F1

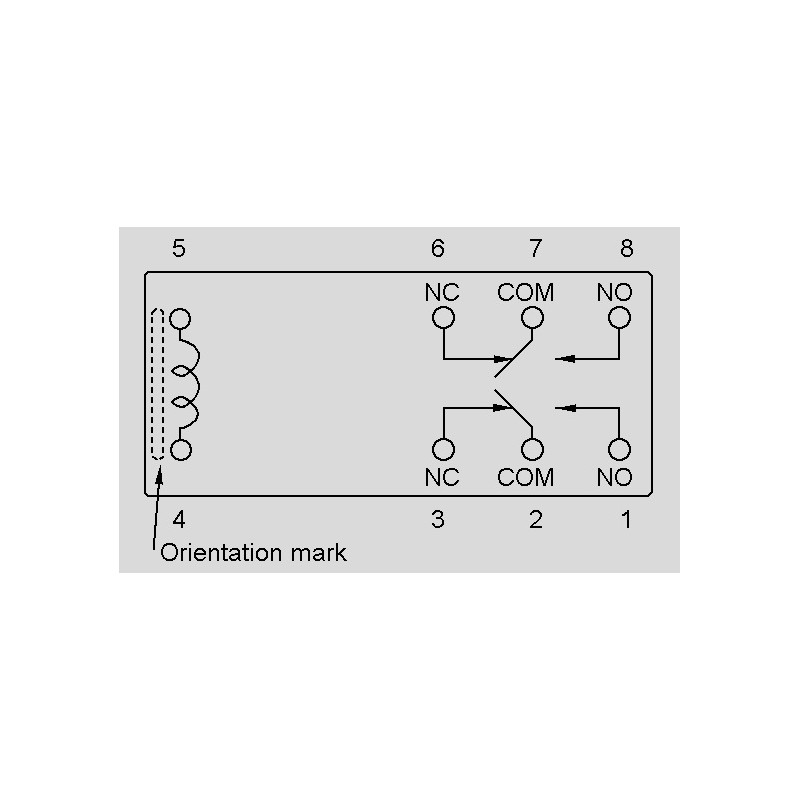

• contact: DPDT

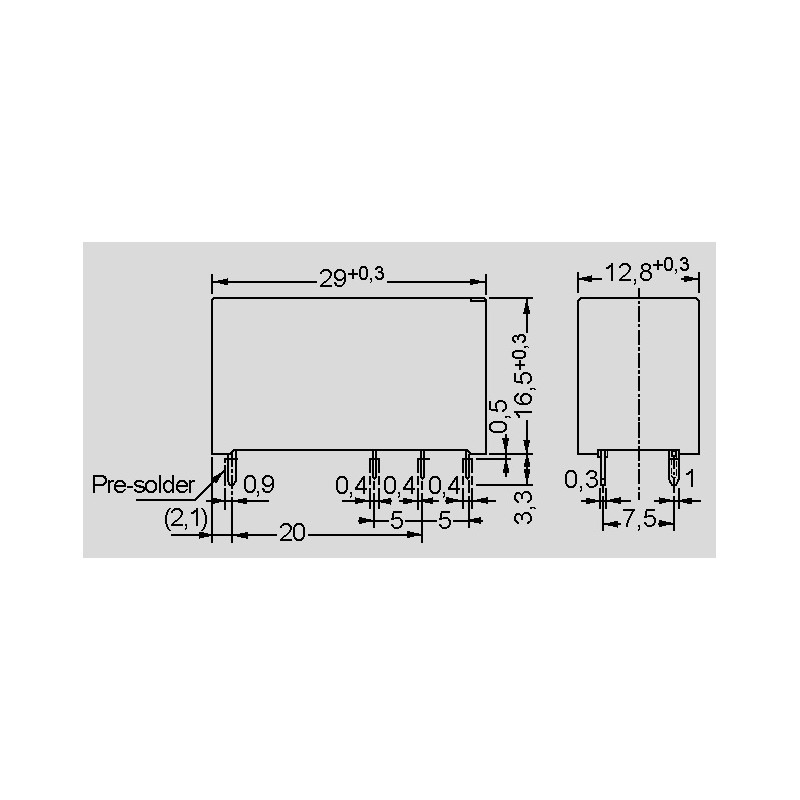

• housing: 29x12.8x16.5mm
• low profile (height 16,5mm)
• high sensivity type: 400mW
• high insulation: 8mm between coil and contacts
• protection class: RTIII
• contact material: AgSnO2 + Au
• max. rated/switching current: 5A
• max. switching voltage: 400V AC/300V DC
• max. switching power: 1250VA / 120W
• creepage/clearance: 8/8mm
• max. operate/release time: 15/5ms
• testing voltage coil/contact (1min.): 5000V AC
• testing voltage opening contact (1min.): 1000V AC
• min. lifetime mechanical: 20x106 operations
• min. lifetime electrical: 100x103 operations
• operating temperature: -40 to +75°C
• by Fujitsu/Takamisawa
• weight approx.: 13g

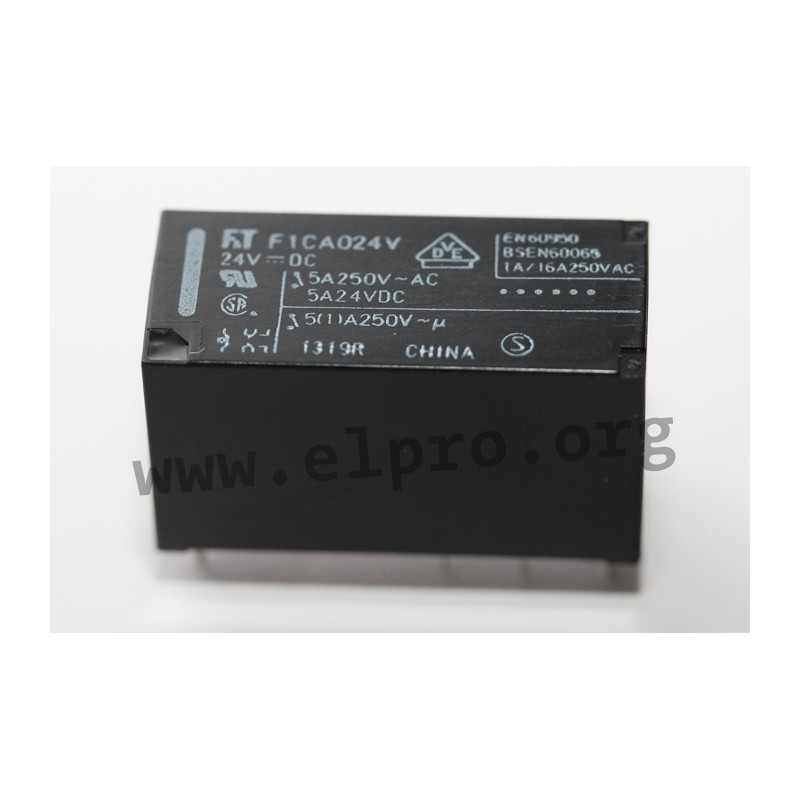

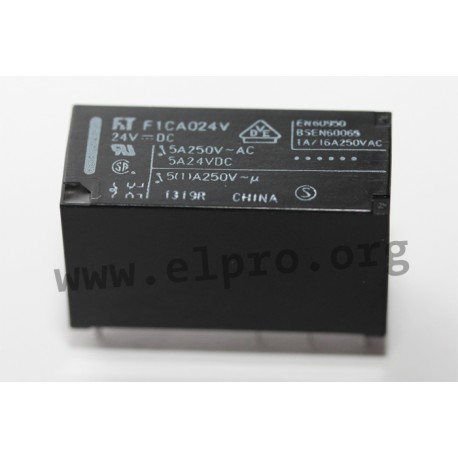

PCB relays series FTR-F1

FTR-F1CD012V

109530 FTR-F1CD012V FTR-F1CD012V PCB relays 5-8A, FTR-F1 series by Fujitsu/Takamisawa. • series: FTR-F1• contact: DPDT• housing: 29x12.8x16.5mm• low profile (height 16,5mm)• high sensivity type: 400mW• high insulation: 8mm between coil and contacts• protection class: RTIII• contact material: AgSnO2 + Au• max. rated/switching current: 5A• max. switching voltage: 400V AC/300V DC• max. switching power: 1250VA / 120W• creepage/clearance: 8/8mm• max. operate/release time: 15/5ms• testing voltage coil/contact (1min.): 5000V AC• testing voltage opening contact (1min.): 1000V AC• min. lifetime mechanical: 20x106 operations• min. lifetime electrical: 100x103 operations• operating temperature: -40 to +75°C• by Fujitsu/Takamisawa• weight approx.: 13g

Specifications

manufacturer
Manufacturer's name FTR-F1CD012V
Nominal voltage [V DC] 12
Coil resistance [Ω] 260
Data Sheet

Unit price

1,53 €

Stock: 750
Further delivery:
CW 22/2025

Minimum order quantity 10 units or
multiples of 10.
