FTR-C1CA005G

Fujitsu PCB relay series FTR-C1

  • two-pole relays in a plastic sealed case (RT III)
  • with 2 changeover contacts (gold-plated), a high insulation, a big contact gap (0,6mm) and a low power consumption
  • comply with IEC60950, EN60950, UL1950 and CSA C 22.2 no. 950 operating voltage 250V
  • dielectric strength of 3000V AC between contacts and coil
  • available as standard (FTR-C1CA_) or single coil latching types (FTR-C1CB_)
  • contact material: AgPd
  • switching current: 2A

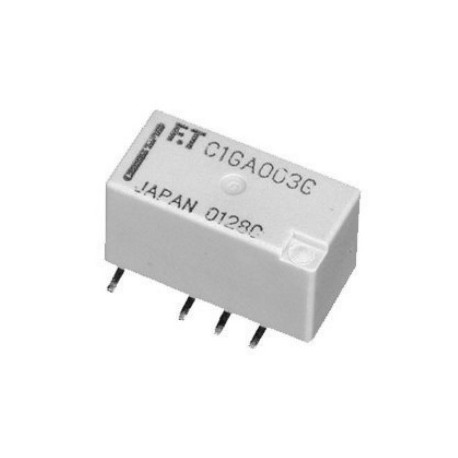

FTR-C1CA005G, Fujitsu PCB relays, 2A, 2 changeover contacts, FTR-C1 series

FTR-C1CA005G

156016 FTR-C1CA005G FTR-C1CA005G Fujitsu PCB relay series FTR-C1. two-pole relays in a plastic sealed case (RT III) with 2 changeover contacts (gold-plated), a high insulation, a big contact gap (0,6mm) and a low power consumption comply with IEC60950, EN60950, UL1950 and CSA C 22.2 no. 950 operating voltage 250V dielectric strength of 3000V AC between contacts and coil available as standard (FTR-C1CA_) or single coil latching types (FTR-C1CB_) contact material: AgPd switching current: 2A

Specifications

manufacturer
Manufacturer's name FTR-C1CA005G
Nominal voltage [V DC] 5
Coil resistance [Ω] 89,3
Switching current [A] 2
Response voltage [V] 3,75
Release voltage [V] 0,5
Nominal capacity [mW] 280
Data Sheet

Unit price

1,11 €

Stock: 1400
Further delivery:
CW 16/2025

Minimum order quantity 10 units or
multiples of 10.
