LFB 100 V 10000 µF 40x95

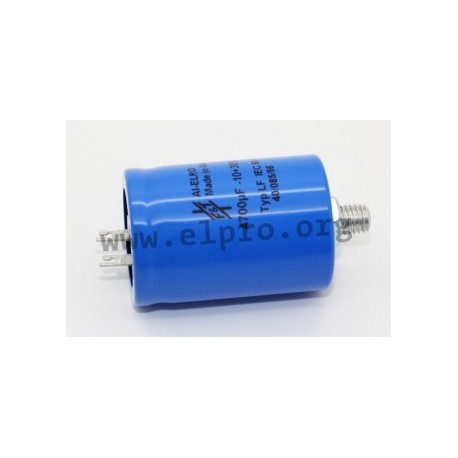

Electrolytic capacitors series LFB by Fischer & Tausche

These capacitors are endued with a soldering lug and a stud mounting (M8x12 mm). We are offering the following types by manufacturer Fischer & Tausche: LFB 40 V 10000 µF 35x50, LFB 63 V 4700 µF 35x50, LFB 63 V 10000 µF 35x66, LFB 100 V 470 µF, LFB 100 V 4700 µF and LFB 100 V 10000 µF 40x95.

• lose
• tolerance: 20%
• temperature range: -40 to +85°C

LFB10310040095, FTCAP electrolytic capacitors, radial, soldering lugs, clamping bolts, 85°C, LFB series

LFB 100 V 10000 µF 40x95

3991 LFB 100 V 10000 µF 40x95 LFB10310040095 LFB10310040095 Electrolytic capacitors series LFB by Fischer & Tausche. These capacitors are endued with a soldering lug and a stud mounting (M8x12 mm). We are offering the following types by manufacturer Fischer & Tausche: LFB 40 V 10000 µF 35x50, LFB 63 V 4700 µF 35x50, LFB 63 V 10000 µF 35x66, LFB 100 V 470 µF, LFB 100 V 4700 µF and LFB 100 V 10000 µF 40x95. • lose• tolerance: 20%• temperature range: -40 to +85°C

Specifications

manufacturer
Manufacturer's name LFB10310040095
Reverse current [A] 5,4
Loss factor at 120Hz, 25°C 15
Nominal voltage [V] 100
Capacity [µF] 10000
D x L [mm] 40x95
Data Sheet

Unit price

16,89 €

Stock: 156
Further delivery:
CW 12/2025
