LFB 100 V 470 µF

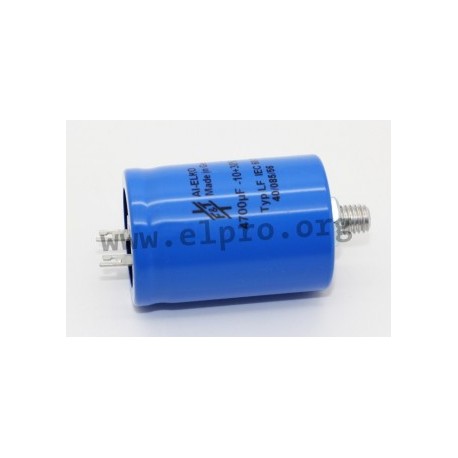

Electrolytic capacitors series LFB by Fischer & Tausche

These capacitors are endued with a soldering lug and a stud mounting (M8x12 mm). We are offering the following types by manufacturer Fischer & Tausche:  LFB 40 V 10000 µF 35x50, LFB 63 V 4700 µF 35x50, LFB 63 V 10000 µF 35x66, LFB 100 V 470 µF, LFB 100 V 4700 µF and LFB 100 V 10000 µF 40x95.

• lose
• tolerance: 20%
• temperature range: -40 to +85°C

LFB47110025036, FTCAP electrolytic capacitors, radial, soldering lugs, clamping bolts, 85°C, LFB series

LFB 100 V 470 µF

109767 LFB 100 V 470 µF LFB47110025036 LFB47110025036 Electrolytic capacitors series LFB by Fischer & Tausche. These capacitors are endued with a soldering lug and a stud mounting (M8x12 mm). We are offering the following types by manufacturer Fischer & Tausche:  LFB 40 V 10000 µF 35x50, LFB 63 V 4700 µF 35x50, LFB 63 V 10000 µF 35x66, LFB 100 V 470 µF, LFB 100 V 4700 µF and LFB 100 V 10000 µF 40x95. • lose• tolerance: 20%• temperature range: -40 to +85°C

Specifications

manufacturer
Manufacturer's name LFB47110025036
Nominal voltage [V DC] 100
Reverse current [A] 1
Impedance [mΩ] 217
Rated capacitance [µF] 470
Loss factor at 100Hz, 20°C [%] 8
D x L [mm] 25x36
Data Sheet

Unit price

3,99 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 300 units or
multiples of 300.
