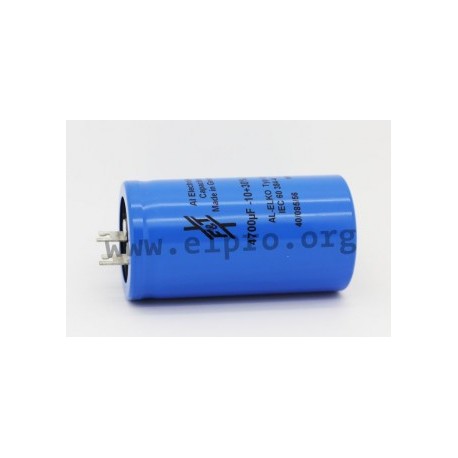

LFA 63 V 4700 µF

Electrolytic capacitors series LFA by Fischer & Tausche

These capacitors are endued with soldering lug and mounting clamps. We are offering the following types by Fischer & Tausche: LFA 63 V 1000 µF, LFA 63V 2200 µF, LFA 63 V 4700 µF, LFA 63 V 6800 µF, LFA 63 V 10000 µF, LFA 100 V 1000 µF, LFA 100 V 2200 µF, LFA 100 V 4700 µF, LFA 100 V 10000 µF, LFA 350 V 220 µF, LFA 350 V 330 µF and LFA 350 V 470 µF.

* lose
* tolerance: 20%
* temperature range: -40 to +85°C

LFA47206335050, radial, with lugs and clamp mounted, 85°C

LFA 63 V 4700 µF

109762 LFA 63 V 4700 µF LFA47206335050 LFA47206335050 Electrolytic capacitors series LFA by Fischer & Tausche. These capacitors are endued with soldering lug and mounting clamps. We are offering the following types by Fischer & Tausche: LFA 63 V 1000 µF, LFA 63V 2200 µF, LFA 63 V 4700 µF, LFA 63 V 6800 µF, LFA 63 V 10000 µF, LFA 100 V 1000 µF, LFA 100 V 2200 µF, LFA 100 V 4700 µF, LFA 100 V 10000 µF, LFA 350 V 220 µF, LFA 350 V 330 µF and LFA 350 V 470 µF. * lose* tolerance: 20%* temperature range: -40 to +85°C

Specifications

manufacturer
Manufacturer's name LFA47206335050
Nominal voltage [V DC] 63
Reverse current [A] 3,2
Impedance [Ω] 41
Rated capacitance [µF] 4700
Loss factor at 100Hz, 20°C [%] 15
D x L [mm] 35x50
Data Sheet

Unit price

7,49 €

Stock: 258
Further delivery:
CW 13/2025
