LFA 100 V 2200 µF

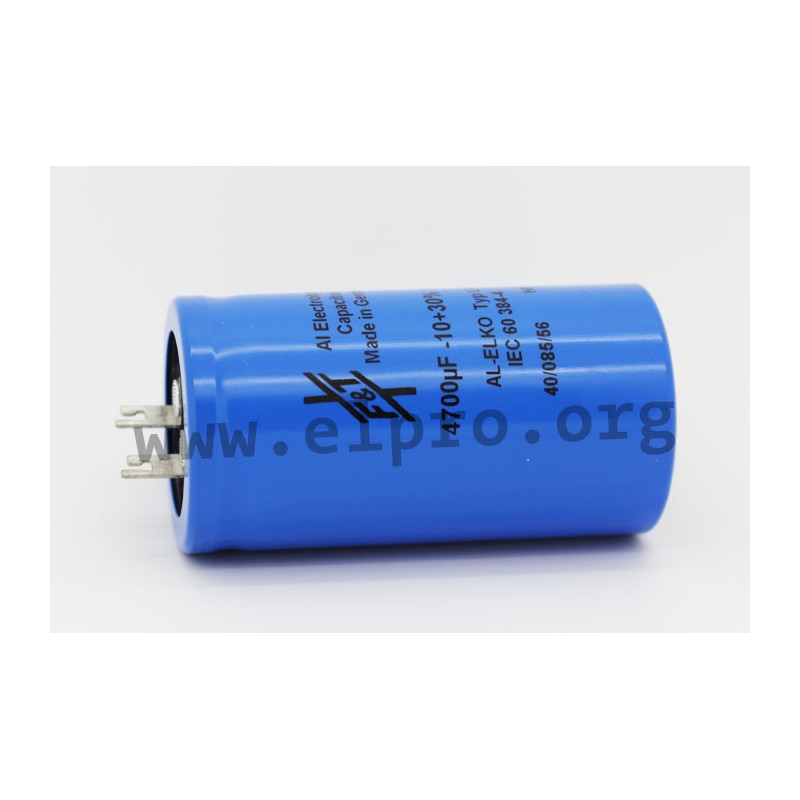

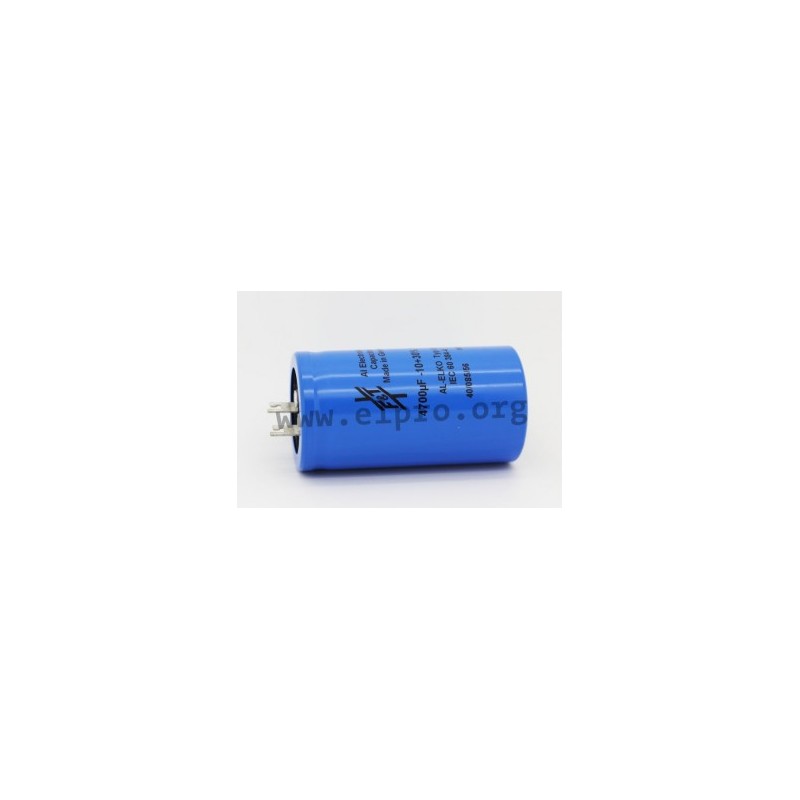

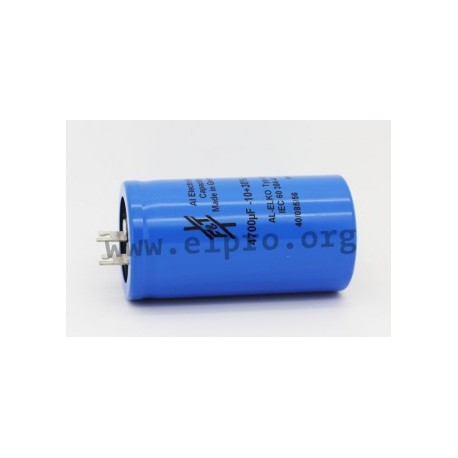

Electrolytic capacitors series LFA by Fischer & Tausche

These capacitors are endued with soldering lug and mounting clamps. We are offering the following types by Fischer & Tausche: LFA 63 V 1000 µF, LFA 63V 2200 µF, LFA 63 V 4700 µF, LFA 63 V 6800 µF, LFA 63 V 10000 µF, LFA 100 V 1000 µF, LFA 100 V 2200 µF, LFA 100 V 4700 µF, LFA 100 V 10000 µF, LFA 350 V 220 µF, LFA 350 V 330 µF and LFA 350 V 470 µF.

* lose
* tolerance: 20%
* temperature range: -40 to +85°C

LFA22210035050, radial, with lugs and clamp mounted, 85°C

LFA 100 V 2200 µF

109761 LFA 100 V 2200 µF LFA22210035050 LFA22210035050 Electrolytic capacitors series LFA by Fischer & Tausche. These capacitors are endued with soldering lug and mounting clamps. We are offering the following types by Fischer & Tausche: LFA 63 V 1000 µF, LFA 63V 2200 µF, LFA 63 V 4700 µF, LFA 63 V 6800 µF, LFA 63 V 10000 µF, LFA 100 V 1000 µF, LFA 100 V 2200 µF, LFA 100 V 4700 µF, LFA 100 V 10000 µF, LFA 350 V 220 µF, LFA 350 V 330 µF and LFA 350 V 470 µF. * lose* tolerance: 20%* temperature range: -40 to +85°C

Specifications

manufacturer
Manufacturer's name LFA22210035050
Nominal voltage [V DC] 100
Reverse current [A] 2,9
Impedance [Ω] 52
Rated capacitance [µF] 2200
Loss factor at 100Hz, 20°C [%] 10
D x L [mm] 35x50
Data Sheet

Unit price

6,39 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 150 units or
multiples of 150.
