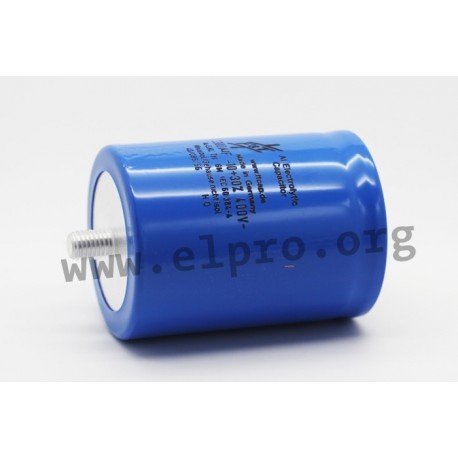

GMB 40V 330000µF

FTCAP capacitor series GMB

  • radial type electrolytic capacitors
  • with screw terminals for stud mounting
  • all internal contacts are welded
  • operating temperature: -40 to +85°C
  • capacitance tolerance: ±20%
  • bulk

Matching GMA clamps

GMB 40V 330000µF

240008 GMB 40V 330000µF GMB33404075165 GMB33404075165 FTCAP capacitor series GMB. radial type electrolytic capacitors with screw terminals for stud mounting all internal contacts are welded  operating temperature: -40 to +85°C capacitance tolerance: ±20% bulk Matching GMA clamps

Specifications

manufacturer
Manufacturer's name GMB33404075165
Nominal voltage [V DC] 40
Reverse current [A] 35,2
Impedance [mΩ] 3
Rated capacitance [µF] 330.000
Loss factor at 100Hz, 20°C [%] 62
D x L [mm] 75x165
Data Sheet

Unit price

31,69 €

Stock: 18
Further delivery:
CW 12/2025

Minimum order quantity 32 units or
multiples of 32.
