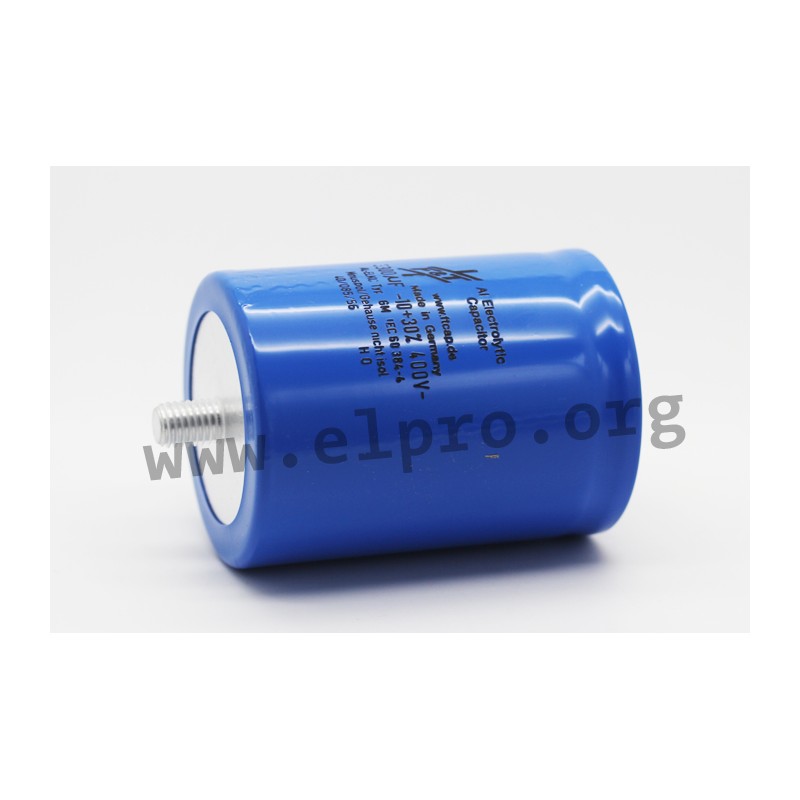

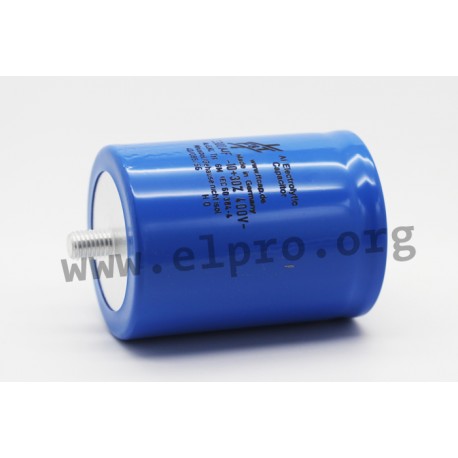

GMB 400 V 1500 µF

FTCAP capacitor series GMB

  • radial type electrolytic capacitors
  • with screw terminals for stud mounting
  • all internal contacts are welded
  • operating temperature: -40 to +85°C
  • capacitance tolerance: ±20%
  • bulk

Matching GMA clamps

GMB 400 V 1500 µF

109769 GMB 400 V 1500 µF GMB15240050100 GMB15240050100 FTCAP capacitor series GMB. radial type electrolytic capacitors with screw terminals for stud mounting all internal contacts are welded  operating temperature: -40 to +85°C capacitance tolerance: ±20% bulk Matching GMA clamps

Specifications

manufacturer
Manufacturer's name GMB15240050100
Nominal voltage [V DC] 400
Reverse current [A] 3,8
Impedance [mΩ] 74
Rated capacitance [µF] 1500
Loss factor at 100Hz, 20°C [%] 7
D x L [mm] 50x100
Data Sheet

Unit price

26,29 €

Stock: 33
Further delivery:
CW 12/2025
