> Semiconductors>Rectifiers>In-Line housing>flat rectifiers 1.5A>FB 600V 1,5A 5/5/5 mm

Manufacturers

FB 600V 1,5A 5/5/5 mm

bridge rectifiers 1.5A

* glass passivated
* pin spacing FB _V 1,5A 5/5/5 mm, B 80 C 1500/1000 and D2 SB_: 5/5/5mm
* pin spacing FB 200V 1,5A 4/4/4 mm: 4/4/4mm
* pin spacing KBP: 3.8/3.8mm
* plastic, UL94V-0
* solderability, max. 260°C/10s

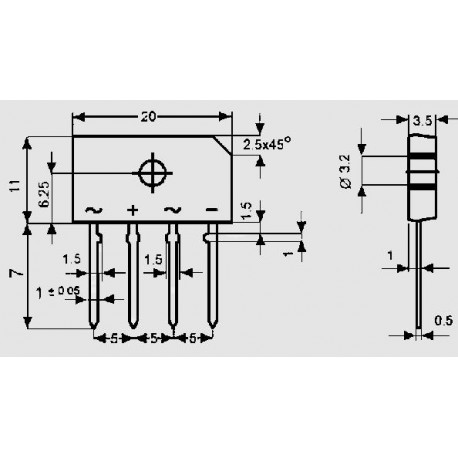

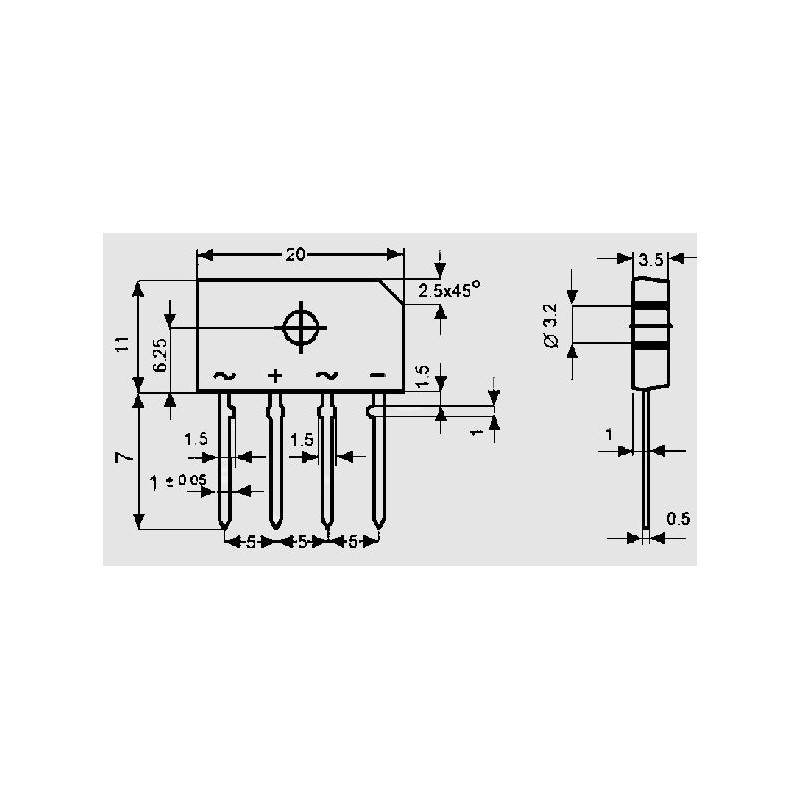

dimensions FB 5/5/5

FB 600V 1,5A 5/5/5 mm

2004 FB 600V 1,5A 5/5/5 mm FB 600V 1,5A 5/5/5 mm bridge rectifiers 1.5A. * glass passivated * pin spacing FB _V 1,5A 5/5/5 mm, B 80 C 1500/1000 and D2 SB_: 5/5/5mm * pin spacing FB 200V 1,5A 4/4/4 mm: 4/4/4mm* pin spacing KBP: 3.8/3.8mm * plastic, UL94V-0* solderability, max. 260°C/10s

Discontinued items. Only remainder of stock available.

Specifications

Case flat rectifiers
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 1,5
Reverse current [µA] 5
(Max.) RMS voltage [V] 420

Unit price

0,44 €

Stock: 1
