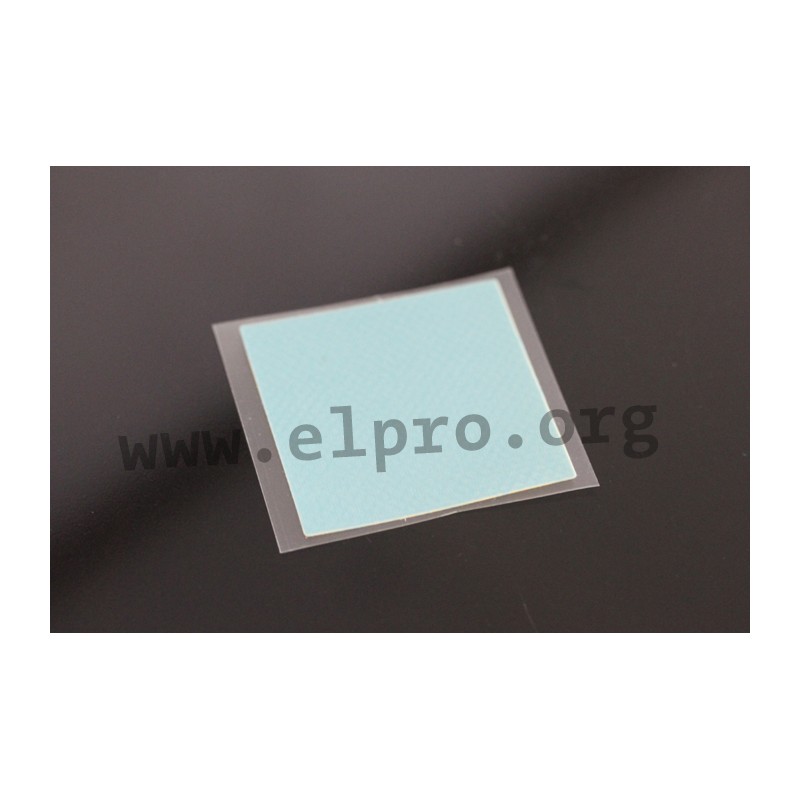

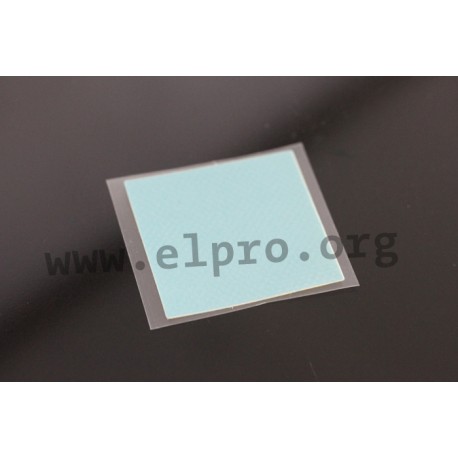

WLFT 404 31x34mm

Fischer thermally conductive foil series WLFT

  • thermally conductive foil with adhesive layers on both sides and good thermal characteristics
  • replaces mechanical fastenings
  • electrically insulating
  • truss material: 0,025mm Polyimide
  • breakdown voltage (AC): 5kV
  • complete thickness: 0,127±0,03mm
  • temperature range: -40 to 150°C
  • specific thermal resistance: 3,7°C cm2/W
  • flammability class: UL94V-0

WLFT 404 31x34mm

36272 WLFT 404 31x34mm WLFT404 31X34 WLFT404 31X34 Fischer thermally conductive foil series WLFT. thermally conductive foil with adhesive layers on both sides and good thermal characteristics replaces mechanical fastenings electrically insulating truss material: 0,025mm Polyimide breakdown voltage (AC): 5kV complete thickness: 0,127±0,03mm temperature range: -40 to 150°C specific thermal resistance: 3,7°C cm2/W flammability class: UL94V-0

Specifications

manufacturer
Manufacturer's name WLFT404 31X34
Data Sheet

Unit price

2,19 €

Stock: 0
Next incoming goods:
CW 48/2024
10 units


Further delivery:
CW 09/2025
