WK 247

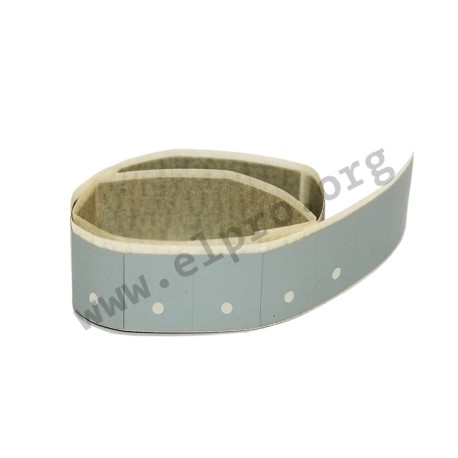

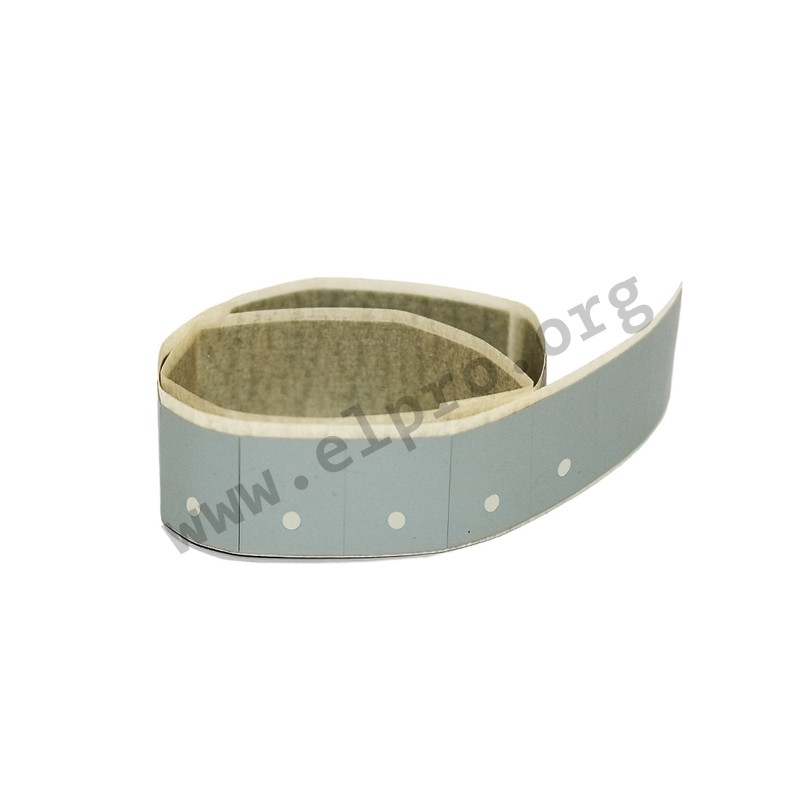

Fischer thermally conductive foil series WK

  • thermally conductive foil adhesive on one side made from silikone-rubber (material thickness: 0,2mm)
  • good surface contact, a thermal paste is not necessary
  • free from toxic substances
  • the spring back effect of the elastic material protects the transistors from damage
  • suited for the following housings:
    • WK3 for TO3
    • WK 3 P for TO3PF
    • WK 247 for TO247
    • WK 220 for TO220
    • WK 32 for SOT32
  • thermal resistance: 0,45K/W
  • flammability class: UL94V-0
  • breakdown voltage: 6,5kV
  • insulation resistance: 5,7x1015Ohm/cm
  • temperature range: -60 to 180°C
WK247, Fischer thermally conductive foil, adhesive on one side, WK series

WK 247

39436 WK 247 WK247 WK247 Fischer thermally conductive foil series WK. thermally conductive foil adhesive on one side made from silikone-rubber (material thickness: 0,2mm) good surface contact, a thermal paste is not necessary free from toxic substances the spring back effect of the elastic material protects the transistors from damage suited for the following housings: WK3 for TO3 WK 3 P for TO3PF WK 247 for TO247 WK 220 for TO220 WK 32 for SOT32 thermal resistance: 0,45K/W flammability class: UL94V-0 breakdown voltage: 6,5kV insulation resistance: 5,7x1015Ohm/cm temperature range: -60 to 180°C

Specifications

manufacturer
Manufacturer's name WK247
Data Sheet

Unit price

0,319 €

Stock: 900
Next incoming goods:
CW 03/2025
325 units

Further delivery:
CW 08/2025

Minimum order quantity 25 units or
multiples of 25.
