WK 3 P

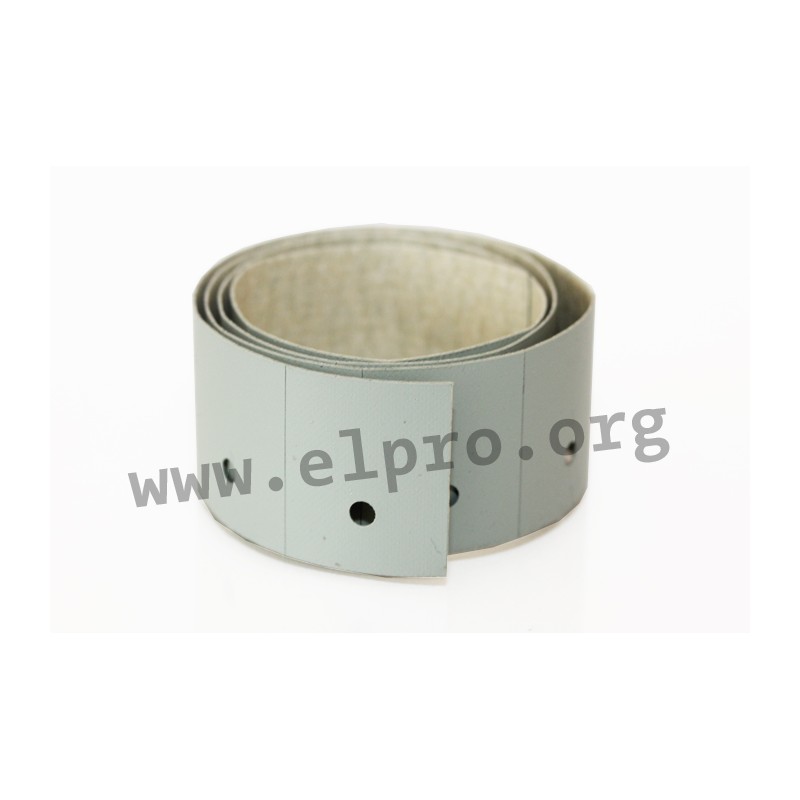

Fischer thermally conductive foil series WK

  • thermally conductive foil adhesive on one side made from silikone-rubber (material thickness: 0,2mm)
  • good surface contact, a thermal paste is not necessary
  • free from toxic substances
  • the spring back effect of the elastic material protects the transistors from damage
  • suited for the following housings:
    • WK3 for TO3
    • WK 3 P for TO3PF
    • WK 247 for TO247
    • WK 220 for TO220
    • WK 32 for SOT32
  • thermal resistance: 0,45K/W
  • flammability class: UL94V-0
  • breakdown voltage: 6,5kV
  • insulation resistance: 5,7x1015Ohm/cm
  • temperature range: -60 to 180°C

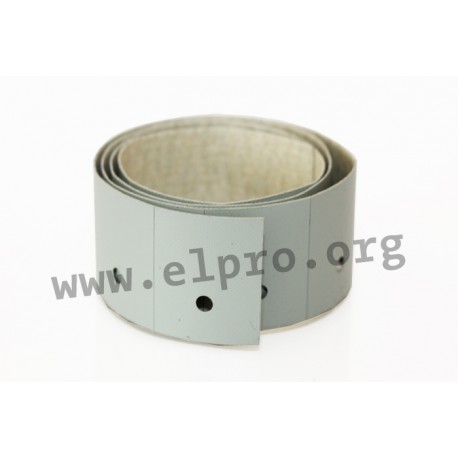

WK3P, Fischer thermally conductive foil, 1-side adhesive, WK series

WK 3 P

39434 WK 3 P WK3P WK3P Fischer thermally conductive foil series WK. thermally conductive foil adhesive on one side made from silikone-rubber (material thickness: 0,2mm) good surface contact, a thermal paste is not necessary free from toxic substances the spring back effect of the elastic material protects the transistors from damage suited for the following housings: WK3 for TO3 WK 3 P for TO3PF WK 247 for TO247 WK 220 for TO220 WK 32 for SOT32 thermal resistance: 0,45K/W flammability class: UL94V-0 breakdown voltage: 6,5kV insulation resistance: 5,7x1015Ohm/cm temperature range: -60 to 180°C

Specifications

manufacturer
Manufacturer's name WK3P
Data Sheet

Unit price

0,338 €

Stock: 645
Further delivery:
CW 03/2025

Minimum order quantity 25 units or
multiples of 25.
