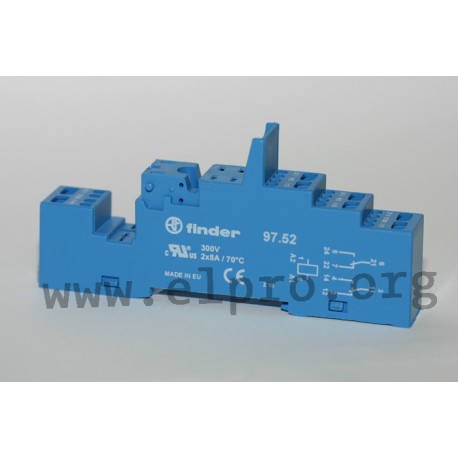

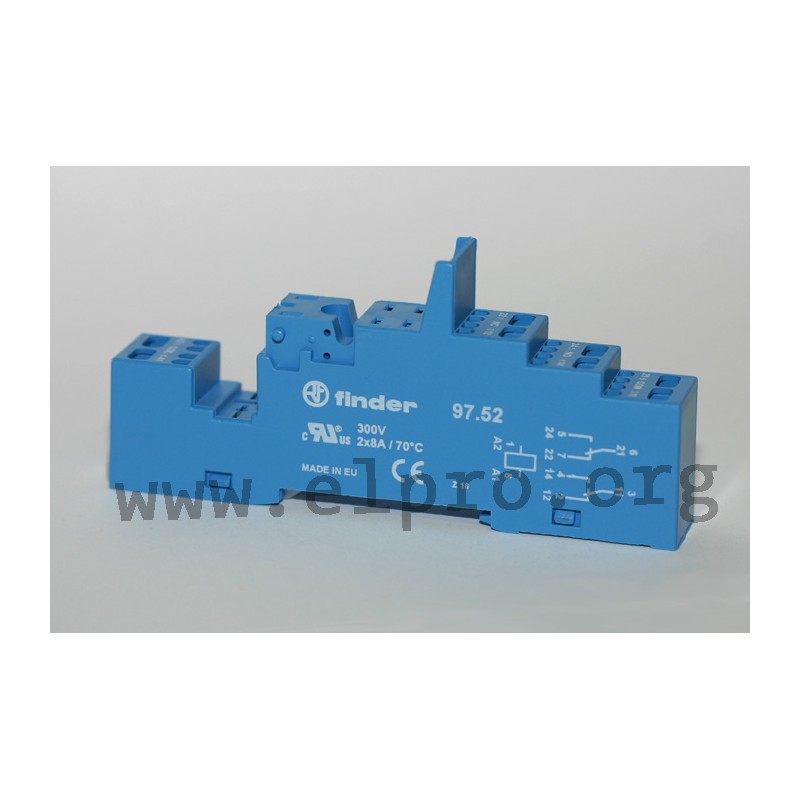

97.52

DIN rail sockets and accessories

97.02, 97.01 screw terminals snap-on mounting
• screw sockets with integrated terminal for indicator and suppression moduls series 99.02_
• according to VDE0106, EN50178, EN60204
• contact rating: 8A/250V aor 16A/250V
• dielectric strenght: 6kV
• ambient temperature: -40...+70°C
• colour: blue
• for relays series 46
• suitable retain and release clip 09701 (optional)

97.52, 97.51
• screw terminal with spring terminals and with integrated snap-on mounting
• for time-saving wiring
• screw terminal for 35mm snap-on mounting rail for display and suppression 99.02_
• "safe separation" according to VDE0106, EN50178, EN60204 between coil and contacts
• contact rating: 8A/250V or 16A/250V
• dielectric strength: 6kV
• temperature range: -25...+70°C
• colour: blue
• suitable for relays series 46
• suitable retaining clip supplied 097.01

097.01
• plastic retain and release clip
• for 97._ sockets supplied with relays from the 46. series

99.02_
• coil indication and EMC suppression modules
• for 97.51 and 97.52 sockets
• 99.02.3.000.00: diode, 6...220V DC
• 99.02.9.024.99: diode and LED,, 6...24V DC
• 99.02.0.230.98: LED and varistor, 110...240V DC/AC

97.52

97.52

25959 97.52 97.52 DIN rail sockets and accessories. 97.02, 97.01 screw terminals snap-on mounting* screw sockets with integrated terminal for indicator and suppression moduls series 99.02_* according to VDE0106, EN50178, EN60204* contact rating: 8A/250V aor 16A/250V* dielectric strenght: 6kV* ambient temperature: -40...+70°C* colour: blue* for relays series 46* suitable retain and release clip 09701 (optional)97.52, 97.51* screw terminal with spring terminals and with integrated snap-on mounting* for time-saving wiring* screw terminal for 35mm snap-on mounting rail for display and suppression 99.02_* "safe separation" according to VDE0106, EN50178, EN60204 between coil and contacts* contact rating: 8A/250V or 16A/250V* dielectric strength: 6kV* temperature range: -25...+70°C* colour: blue* suitable for relays series 46* suitable retaining clip supplied 097.01097.01* plastic retain and release clip* for 97._ sockets supplied with relays from the 46. series 99.02_* coil indication and EMC suppression modules* for 97.51 and 97.52 sockets* 99.02.3.000.00: diode, 6...220V DC* 99.02.9.024.99: diode and LED,, 6...24V DC* 99.02.0.230.98: LED and varistor, 110...240V DC/AC

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 97.52
Data Sheet

Unit price

6,89 €

Stock: 51

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
