83.02.0.240.0000

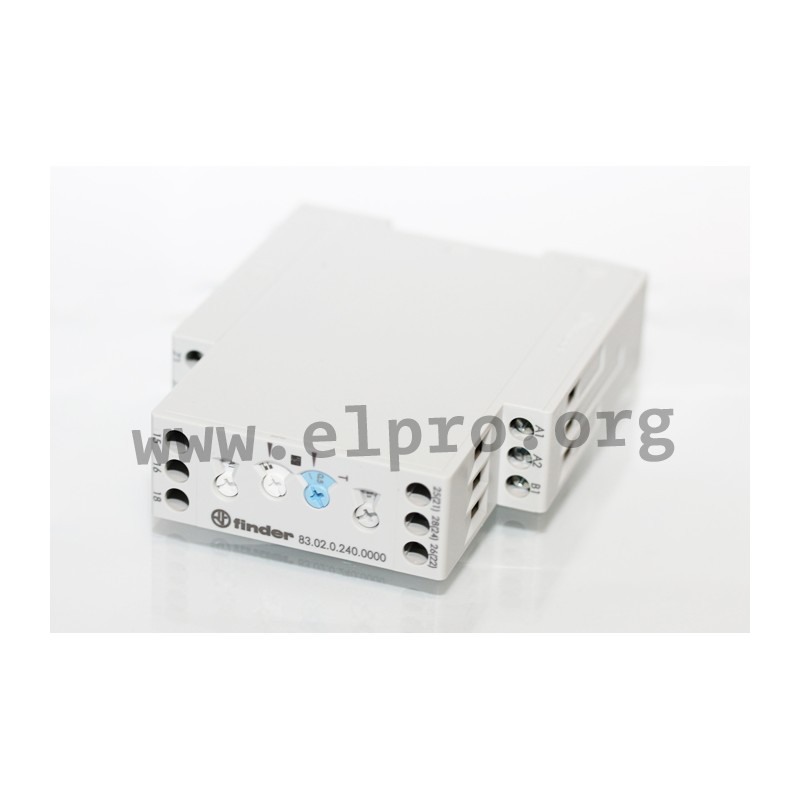

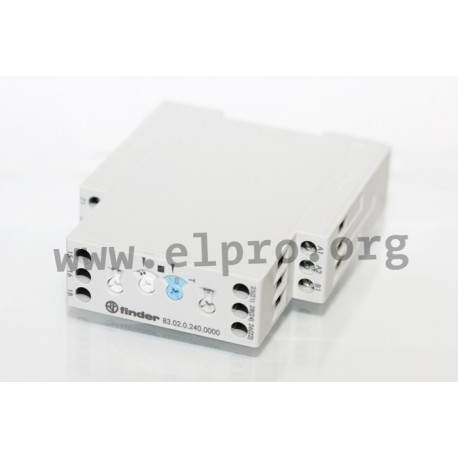

industrial timer 10-16A, 83 by Finder

• series: 83

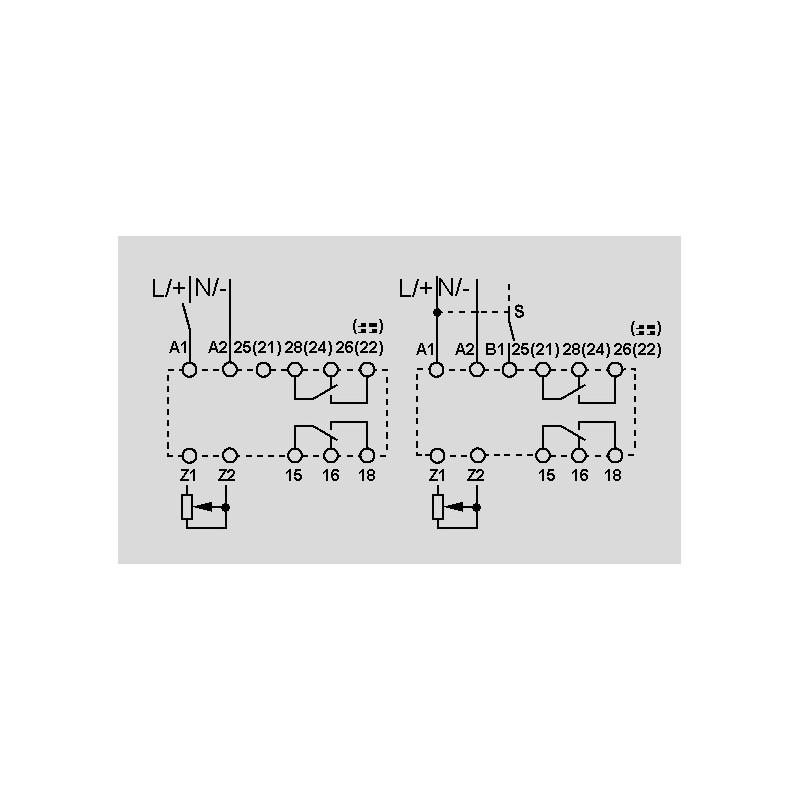

• contact
83.01_, 83.11_: SPDT
83.02_: DPDT
• multifunction with 8 settings or monofunction
• multivoltage from 24...240V AC
• automatic voltage adjustment by pulse width modulation (PWM)
• 8 over-lapping adjustable time scales from 0,05s to 10h
• 83.02: time delayed and immediately contact
• setting/operating element screwdriver adjustable

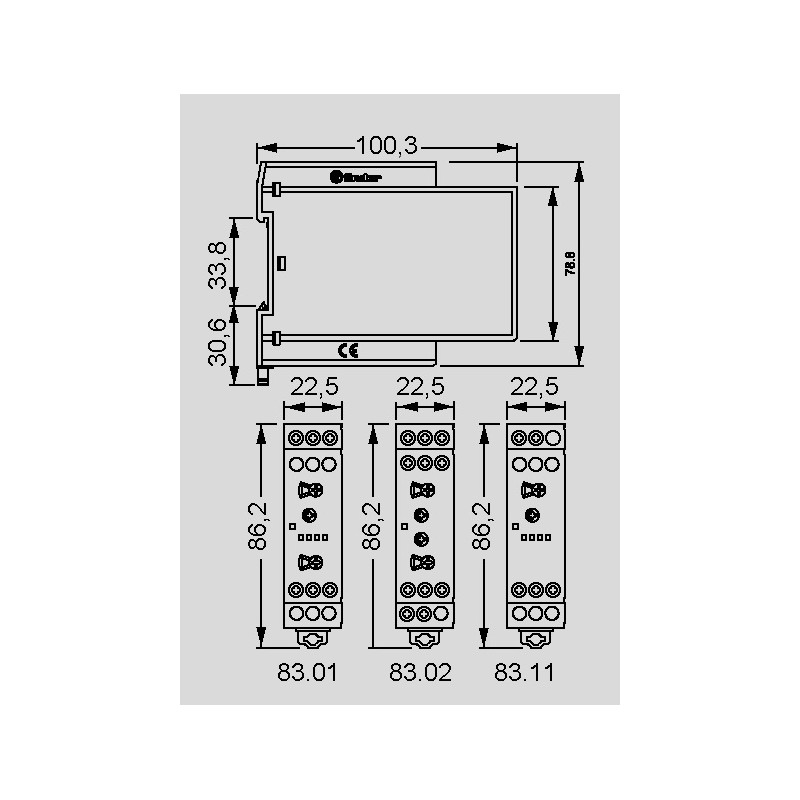

• for 35mm rail (DIN EN 60715 TH35) mount
• category of protection IP20
• contact material: AgNi
• rated current
83.01_, 83.11_: 16A
83.02_: 12A
• max. switching current: 30A
• max. switching voltage: 400V AC
• max. switching power
83.01_, 83.11_: 4000VA
83.02_: 3000VA
• recovery time: 200ms
• lifetime, electrical
83.01_, 83.11_: 50x103 operations
83.02_: 60x103 operations
• operating temperature: -20...+60°C
• by Finder

• timer functions 83.01_/83.02_:
on-delay
interval
pulse delayed (0.5s)
symmetrical flasher (starting pulse on)
off-delay with control signal
on- and off-delay with control signal
interval with control signal on
watchdog (retriggerable interval with control signal on)

• timer functions 83.11_:
on-delay
83.02.0.240.0000

83.02.0.240.0000

41610 83.02.0.240.0000 83.02.0.240.0000 industrial timer 10-16A, 83 by Finder. * series: 83* contact83.01_, 83.11_: SPDT83.02_: DPDT* multifunction with 8 settings or monofunction* multivoltage from 24...240V AC* automatic voltage adjustment by pulse width modulation (PWM)* 8 over-lapping adjustable time scales from 0,05s to 10h* 83.02: time delayed and immediately contact* setting/operating element screwdriver adjustable* for 35mm rail (DIN EN 60715 TH35) mount* category of protection IP20* contact material: AgNi* rated current83.01_, 83.11_: 16A83.02_: 12A* max. switching current: 30A* max. switching voltage: 400V AC* max. switching power83.01_, 83.11_: 4000VA83.02_: 3000VA* recovery time: 200ms* lifetime, electrical83.01_, 83.11_: 50x103 operations83.02_: 60x103 operations* operating temperature: -20...+60°C* by Finder* timer functions 83.01_/83.02_:on-delayintervalpulse delayed (0.5s)symmetrical flasher (starting pulse on)off-delay with control signalon- and off-delay with control signalinterval with control signal onwatchdog (retriggerable interval with control signal on)* timer functions 83.11_:on-delay

Specifications

manufacturer
Manufacturer's name 83.02.0.240.0000
Nominal voltage [V] 24...240
Data Sheet

Unit price

78,59 €

Stock: 1
Further delivery:
CW 32/2025
