80.41.0.240.0000

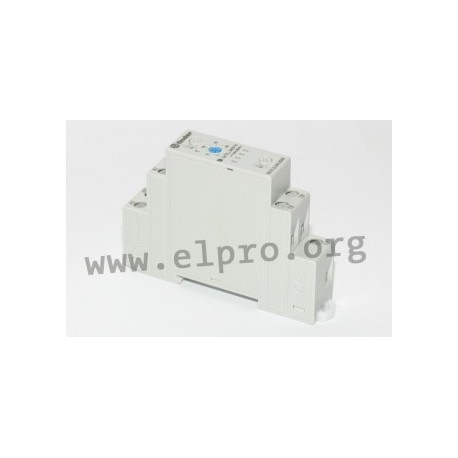

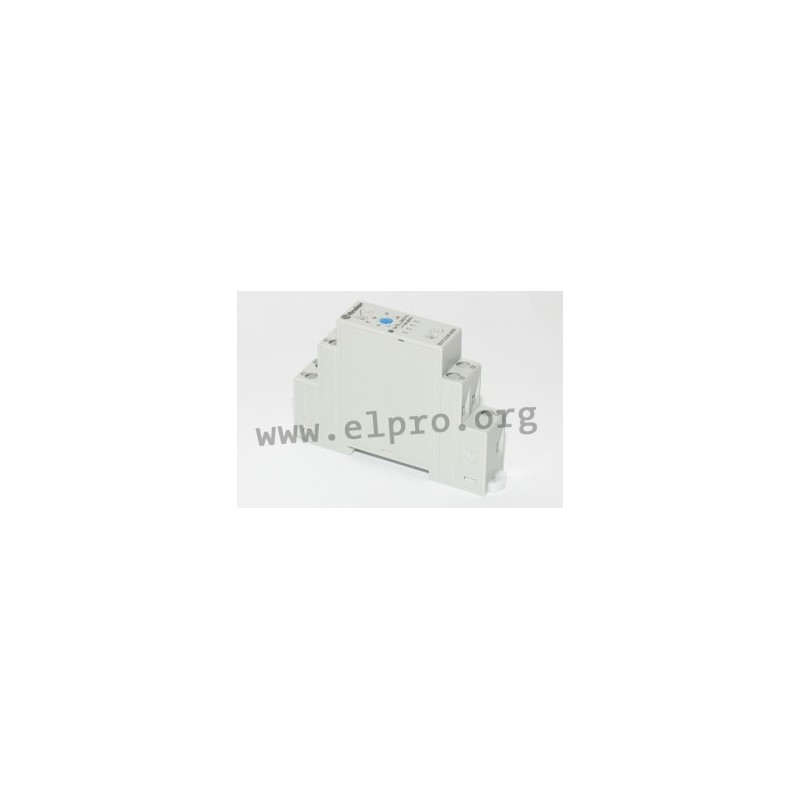

universal industrial timer 80_ by Finder

• rated current: 16A
• contact: SPDT
• series: 80_
• multifunction with 6 settings
• multivoltage of 12...240V AC/DC or 24...240V AC/DC
• voltage adjustment by pulse width modulation (PWM)
• six over-lapping adjustable time scales from 0,1s to 20h
• setting/operating element screwdriver adjustable
• 35 mm rail (EN 60715) mount
• category of protection IP20
• contact material: AgCdO
• max. wwitching current: 30A
• max. switching voltage: 400V AC
• max. switching power: 4000VA
• recovery time: 100ms
• lifetime electrical: 100x103 cycles
• operating temperature: -10...+50°C
• by Finder

• timer functions:
signal OFF delay over start contact

Finder 80._ series

80.41.0.240.0000

41625 80.41.0.240.0000 80.41.0.240.0000 universal industrial timer 80_ by Finder. • rated current: 16A• contact: SPDT• series: 80_• multifunction with 6 settings• multivoltage of 12...240V AC/DC or 24...240V AC/DC• voltage adjustment by pulse width modulation (PWM)• six over-lapping adjustable time scales from 0,1s to 20h• setting/operating element screwdriver adjustable• 35 mm rail (EN 60715) mount• category of protection IP20• contact material: AgCdO• max. wwitching current: 30A• max. switching voltage: 400V AC• max. switching power: 4000VA• recovery time: 100ms• lifetime electrical: 100x103 cycles• operating temperature: -10...+50°C• by Finder• timer functions:signal OFF delay over start contact

Specifications

manufacturer
Manufacturer's name 80.41.0.240.0000
Nominal voltage [V] 250
Response voltage [V] 12...240
Max. switching power [VA] 4000
Data Sheet

Unit price

41,79 €

Stock: 3
Further delivery:
CW 10/2025
