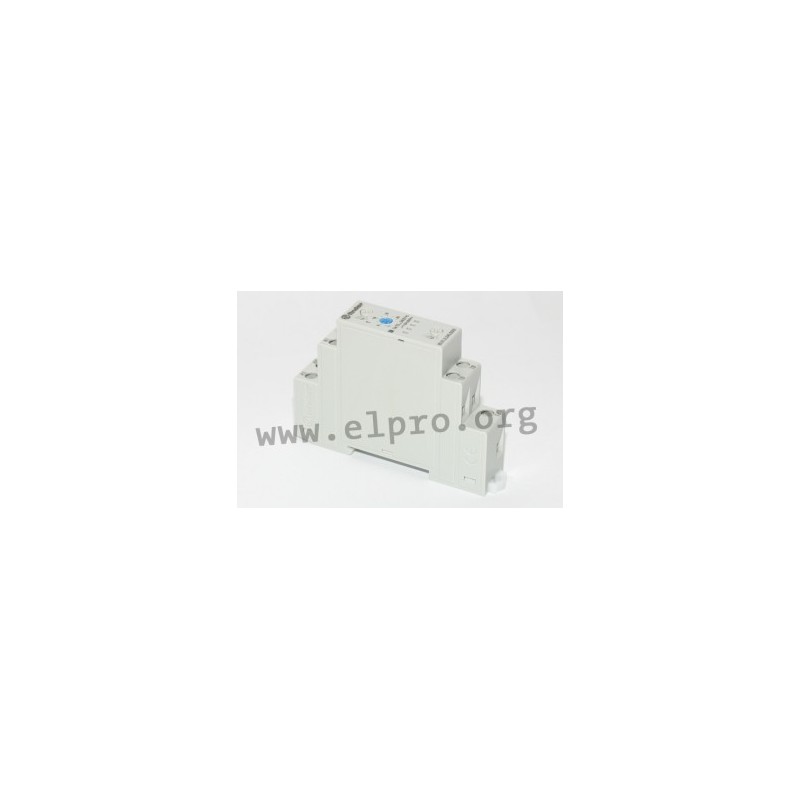

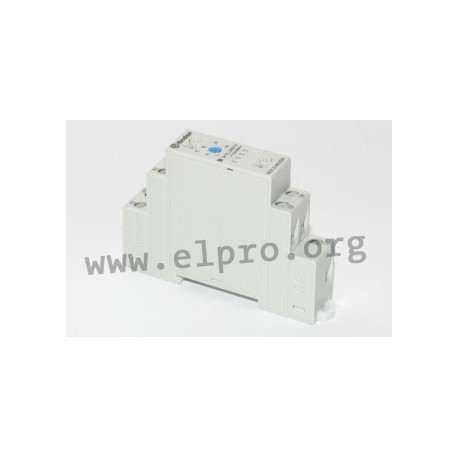

80.21.0.240.0000

universal industrial timer 80_ by Finder

• rated current: 30A
• contact: SPDT
• series: 80_
• multifunction with 6 settings
• multivoltage of  24 to 240V AC/DC
• voltage adjustment by pulse width modulation (PWM)
• six over-lapping adjustable time scales from 0,1s to 20h
• setting/operating element screwdriver adjustable
• 35 mm rail (EN 60715) mount
• category of protection IP20
• contact material: AgNi
• max. switching current: 30A
• max. switching voltage: 400V AC
• max. switching power: 4000VA
• recovery time: 100ms
• lifetime electrical: 100x103 cycles
• operating temperature: -10 to +50°C
• by Finder

• timer functions:interval

Finder Series 80

80.21.0.240.0000

107629 80.21.0.240.0000 80.21.0.240.0000 universal industrial timer 80_ by Finder. • rated current: 30A• contact: SPDT• series: 80_• multifunction with 6 settings• multivoltage of  24 to 240V AC/DC• voltage adjustment by pulse width modulation (PWM)• six over-lapping adjustable time scales from 0,1s to 20h• setting/operating element screwdriver adjustable• 35 mm rail (EN 60715) mount• category of protection IP20• contact material: AgNi• max. switching current: 30A• max. switching voltage: 400V AC• max. switching power: 4000VA• recovery time: 100ms• lifetime electrical: 100x103 cycles• operating temperature: -10 to +50°C• by Finder• timer functions:interval

Specifications

manufacturer
Manufacturer's name 80.21.0.240.0000
Switching current, max. [A] 16/0.3/0.12
Switching voltage, max [V] 400
Switching capacity, max. [W] 4000
Nominal voltage [V] 250
Response voltage [V] 24...240
Data Sheet

Unit price

40,29 €

Stock: 1
Further delivery:
CW 04/2025
