55.34 24V LED

rated current: 8-10A

• lockable test button and LED
• solder/plug-in terminals 2x0.5mm
• relays protection class RTI
• contact: 4PDT
• contact material: AgNi
• rated current: 7A
• max. switching current: 15A
• max. switching voltage: 250V AC
• max. switching power: 1750VA
• operate/release time: 9/3ms
• testing voltage
coil/contact: 4000V
opening contact: 1000V
• lifetime
mechanical (AC/DC): 20x106 / 50x106 operations
electrical: 150x103 operations
• operating temperature: -40...+85°C

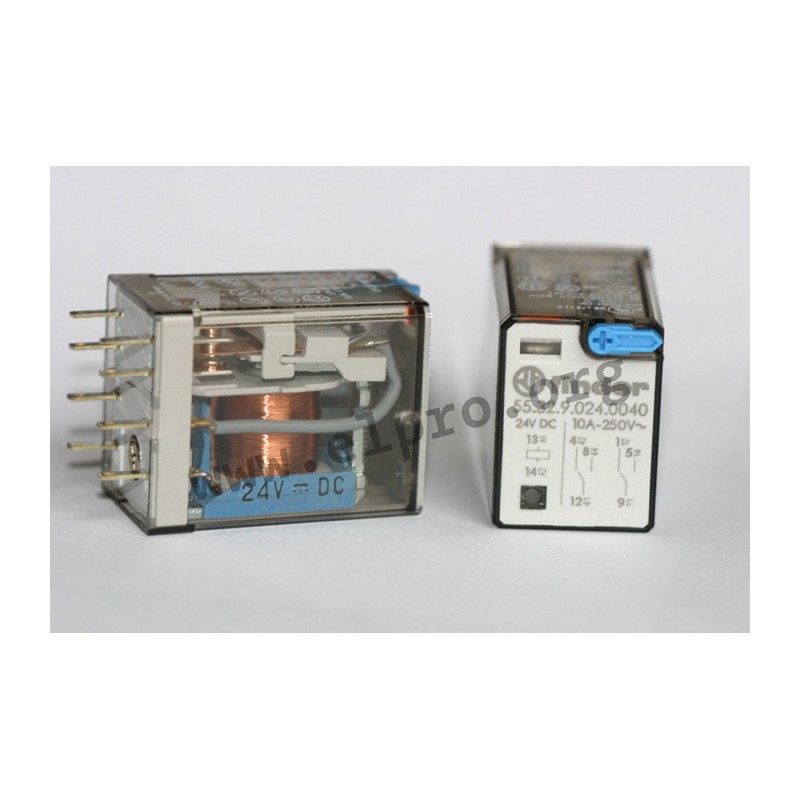

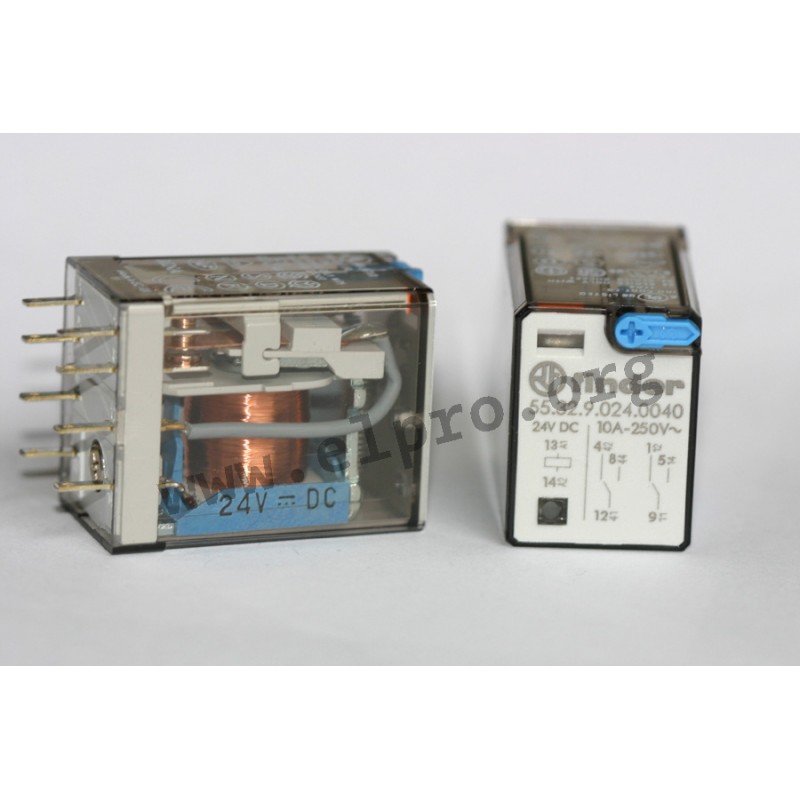

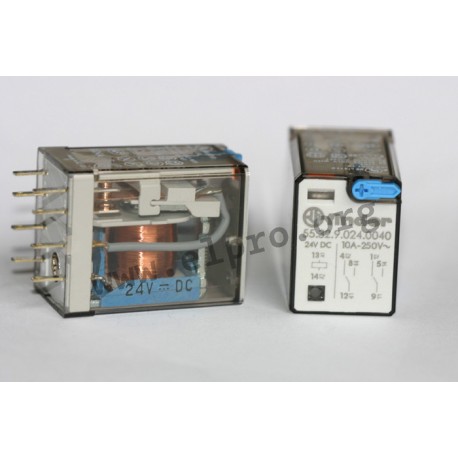

Finder 55. series

55.34 24V LED

25979 55.34 24V LED 55.34.9.024.0090 55.34.9.024.0090 rated current: 8-10A. • lockable test button and LED• solder/plug-in terminals 2x0.5mm• relays protection class RTI• contact: 4PDT• contact material: AgNi• rated current: 7A• max. switching current: 15A• max. switching voltage: 250V AC• max. switching power: 1750VA• operate/release time: 9/3ms• testing voltagecoil/contact: 4000Vopening contact: 1000V• lifetimemechanical (AC/DC): 20x106 / 50x106 operationselectrical: 150x103 operations• operating temperature: -40...+85°C

Specifications

manufacturer
Manufacturer's name 55.34.9.024.0090
Switch positions 4 changeover...
Nominal resistance [Ω] 600
Switching current [A] 7
Response voltage [V] 19,2...26,4
Max. switching voltage [V] 250
Max. switching power [VA] 1750
Data Sheet

Unit price

12,29 €

Stock: 19
Further delivery:
CW 14/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
