94.74

94.14 PCB sockets for 55._ and 85._ relays
* terminal socket to insert in PCB
* contact rating: 10A/250V
* dielectric strength: ³2kV AC
* temperature range: -40...+70°C
* colour: blue
* suitable for display
* suitable retaining clip supplied with 55._: 94.51

94.54
* sockets with screwless terminal for 55._ and 85._ relays
* snapped onto DIN rail DIN EN 60715 TH35 or screw mounting
* contact rating: 10A/250V
* dielectric strength: 2kV AC
* temperature range: -25...+70°C
* colour: blue

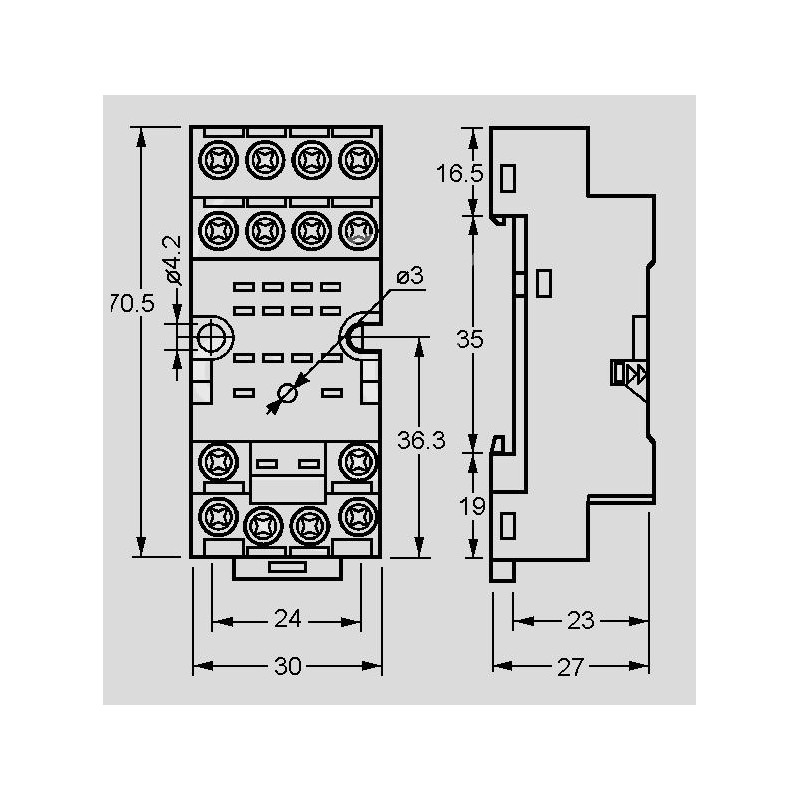

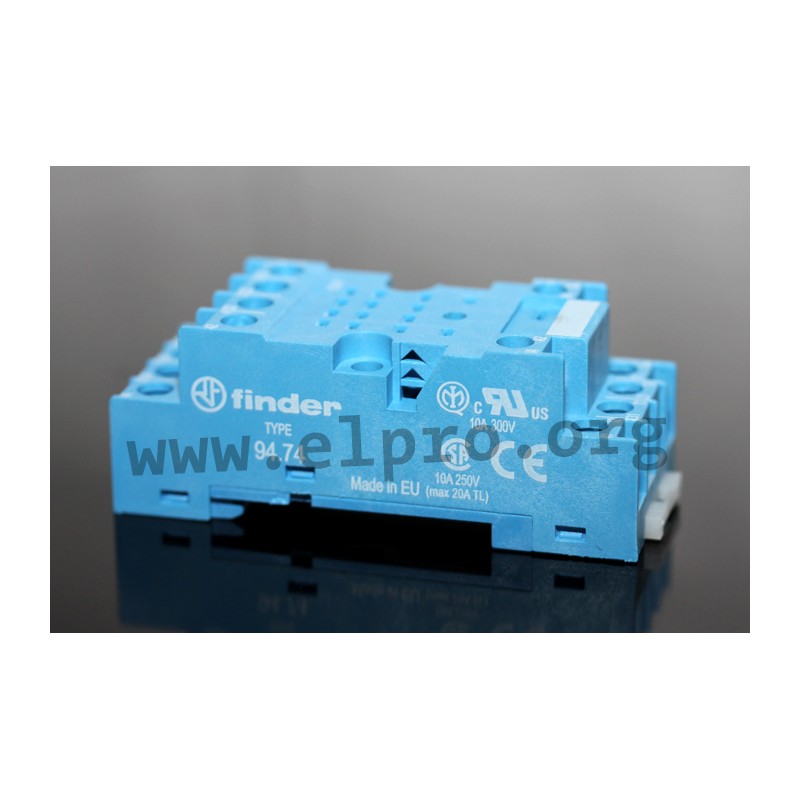

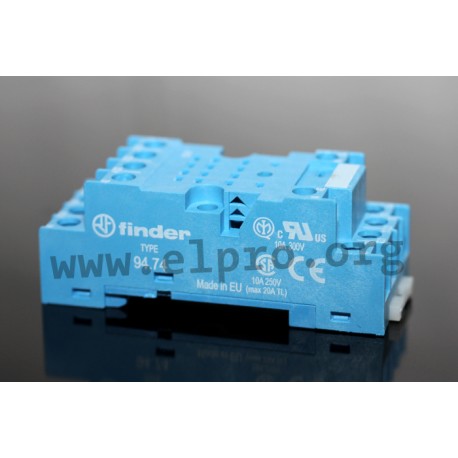

94.74 DIN-rail sockets for 55._ and 85._ relays
* screw terminal socket for DIN rails
* contact rating: 10A/250V
* dielectric strength: ³2kV AC
* temperature range: -40...+70°C
* colour: blue
* suitable retaining clip supplied with 55._: 94.71

94.84.3 DIN-rail sockets for 55._ and 85._ relays
* screw terminal socket for DIN rails
* contact rating: 10A/250V
* dielectric strength: ³2kV AC
* temperature range: -40...+70°C
* colour: blue
* suitable retaining clip supplied with 55._: 94.71
* suitable variclip supplied with 55._: 94.91.3


94.51
* metal retaining clip for 94.14 socket supplied with relays from the 55._ series

94.71
* metal retaining clip for 94.74, 94.84.3 sockets supplied with relays from the 55._ series

94.91.3
* "variclip" retaining clip made of blue plastic for 94.84.3 sockets supplied with relays from the 55._ series

94.74

94.74

11908 94.74 94.74 94.14 PCB sockets for 55._ and 85._ relays* terminal socket to insert in PCB* contact rating: 10A/250V* dielectric strength: ³2kV AC* temperature range: -40...+70°C* colour: blue* suitable for display* suitable retaining clip supplied with 55._: 94.5194.54* sockets with screwless terminal for 55._ and 85._ relays* snapped onto DIN rail DIN EN 60715 TH35 or screw mounting* contact rating: 10A/250V* dielectric strength: 2kV AC* temperature range: -25...+70°C* colour: blue94.74 DIN-rail sockets for 55._ and 85._ relays* screw terminal socket for DIN rails* contact rating: 10A/250V* dielectric strength: ³2kV AC* temperature range: -40...+70°C* colour: blue* suitable retaining clip supplied with 55._: 94.7194.84.3 DIN-rail sockets for 55._ and 85._ relays* screw terminal socket for DIN rails* contact rating: 10A/250V* dielectric strength: ³2kV AC* temperature range: -40...+70°C* colour: blue* suitable retaining clip supplied with 55._: 94.71* suitable variclip supplied with 55._: 94.91.394.51* metal retaining clip for 94.14 socket supplied with relays from the 55._ series94.71* metal retaining clip for 94.74, 94.84.3 sockets supplied with relays from the 55._ series94.91.3* "variclip" retaining clip made of blue plastic for 94.84.3 sockets supplied with relays from the 55._ series

Specifications

manufacturer
Manufacturer's name 94.74
Data Sheet

Unit price

6,89 €

Stock: 39
Further delivery:
CW 14/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
