94.14

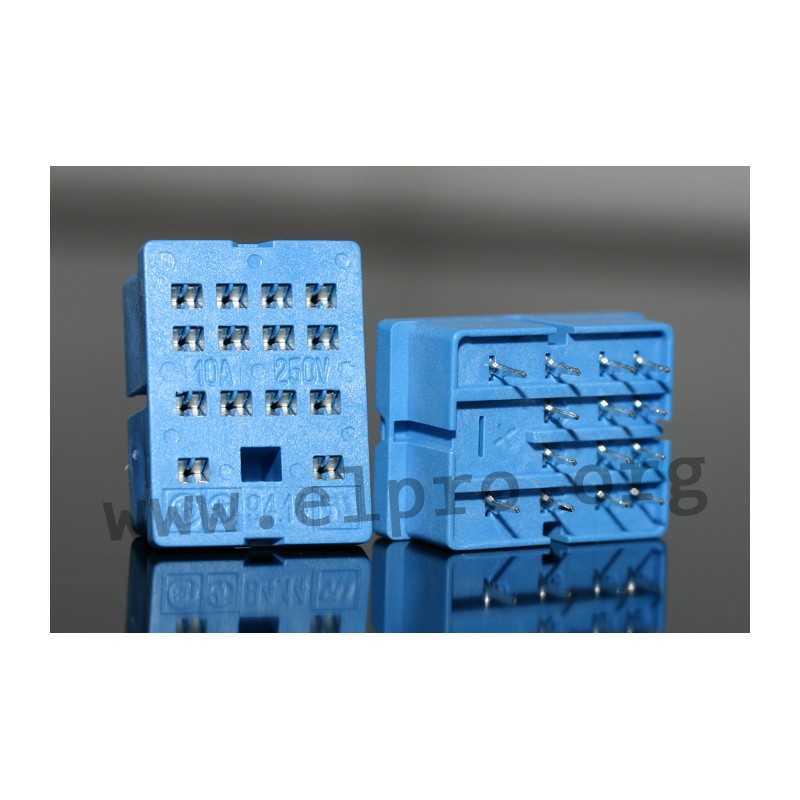

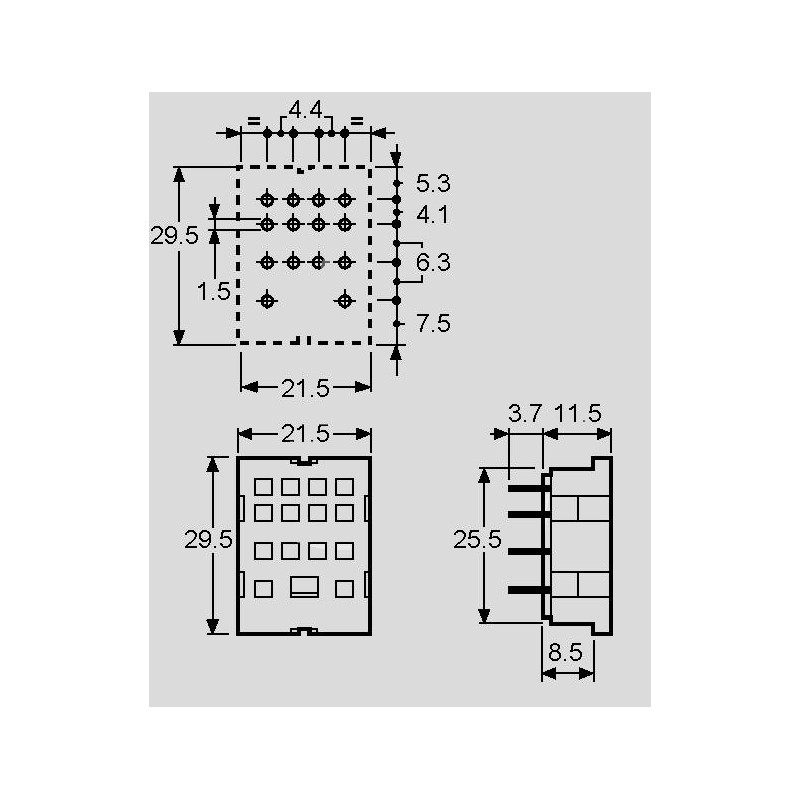

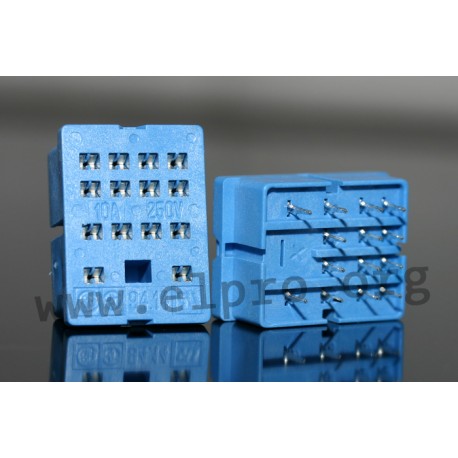

94.14 PCB sockets for 55._ and 85._ relays
• terminal socket to insert in PCB
• contact rating: 10A/250V
• dielectric strength: ³2kV AC
• temperature range: -40...+70°C
• colour: blue
• suitable for display
• suitable retaining clip supplied with 55._: 94.51

94.54
• sockets with screwless terminal for 55._ and 85._ relays
• snapped onto DIN rail DIN EN 60715 TH35 or screw mounting
• contact rating: 10A/250V
• dielectric strength: 2kV AC
• temperature range: -25...+70°C
• colour: blue

94.74 DIN-rail sockets for 55._ and 85._ relays
• screw terminal socket for DIN rails
• contact rating: 10A/250V
• dielectric strength: ³2kV AC
• temperature range: -40...+70°C
• colour: blue
• suitable retaining clip supplied with 55._: 94.71

94.84.3 DIN-rail sockets for 55._ and 85._ relays
• screw terminal socket for DIN rails
• contact rating: 10A/250V
• dielectric strength: ³2kV AC
• temperature range: -40...+70°C
• colour: blue
• suitable retaining clip supplied with 55._: 94.71
• suitable variclip supplied with 55._: 94.91.3


94.51
• metal retaining clip for 94.14 socket supplied with relays from the 55._ series

94.71
• metal retaining clip for 94.74, 94.84.3 sockets supplied with relays from the 55._ series

94.91.3
• "variclip" retaining clip made of blue plastic for 94.84.3 sockets supplied with relays from the 55._ series

94.14

94.14

11905 94.14 94.14 94.14 PCB sockets for 55._ and 85._ relays* terminal socket to insert in PCB* contact rating: 10A/250V* dielectric strength: ³2kV AC* temperature range: -40...+70°C* colour: blue* suitable for display* suitable retaining clip supplied with 55._: 94.5194.54* sockets with screwless terminal for 55._ and 85._ relays* snapped onto DIN rail DIN EN 60715 TH35 or screw mounting* contact rating: 10A/250V* dielectric strength: 2kV AC* temperature range: -25...+70°C* colour: blue94.74 DIN-rail sockets for 55._ and 85._ relays* screw terminal socket for DIN rails* contact rating: 10A/250V* dielectric strength: ³2kV AC* temperature range: -40...+70°C* colour: blue* suitable retaining clip supplied with 55._: 94.7194.84.3 DIN-rail sockets for 55._ and 85._ relays* screw terminal socket for DIN rails* contact rating: 10A/250V* dielectric strength: ³2kV AC* temperature range: -40...+70°C* colour: blue* suitable retaining clip supplied with 55._: 94.71* suitable variclip supplied with 55._: 94.91.394.51* metal retaining clip for 94.14 socket supplied with relays from the 55._ series94.71* metal retaining clip for 94.74, 94.84.3 sockets supplied with relays from the 55._ series94.91.3* "variclip" retaining clip made of blue plastic for 94.84.3 sockets supplied with relays from the 55._ series

Specifications

manufacturer
Manufacturer's name 94.14
Data Sheet

Unit price

2,29 €

Stock: 57
Next incoming goods:
CW 23/2025
50 units

Further delivery:
CW 32/2025

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
