46.61 230V AC

rated current: 8-16A

• socket mount or direct connection via Faston connectors
• AC coils & DC coils sensitive (500mW)
• available with: lockable test button, mechanical indicator
• relays protection class RTII

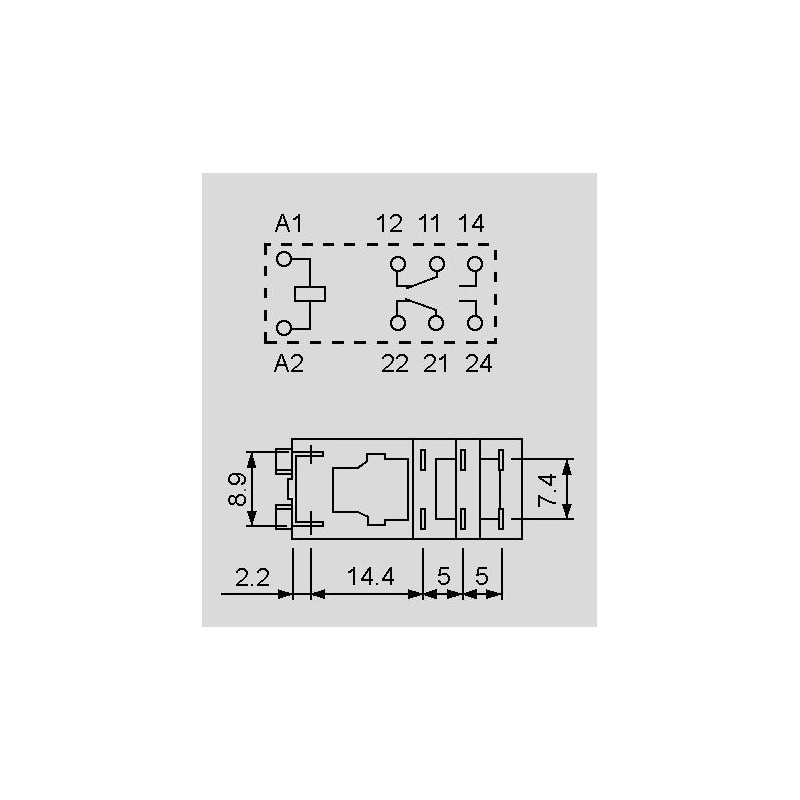

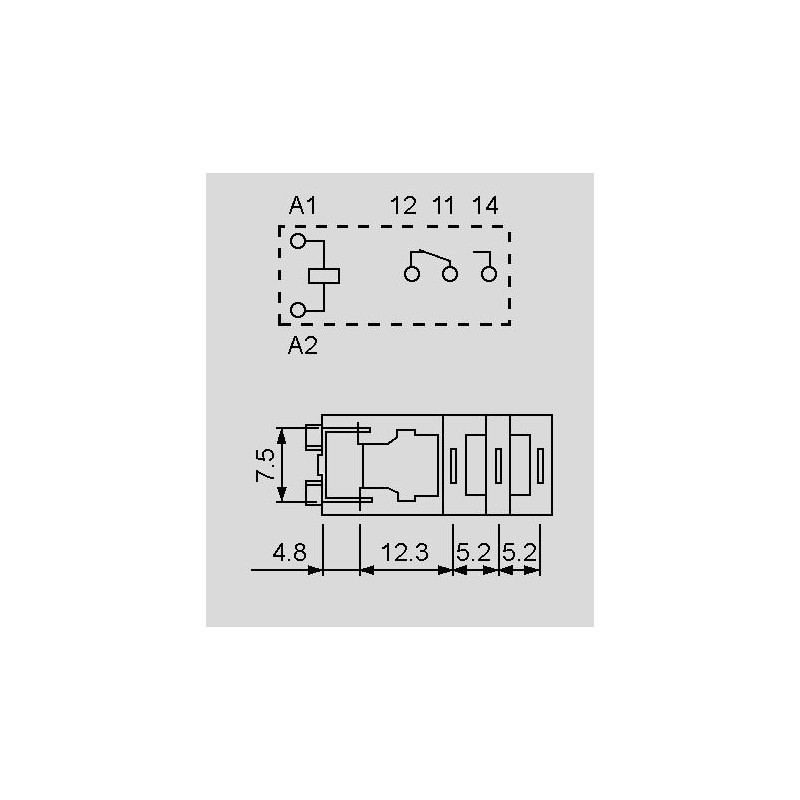

• contact1: SPDT
contact material: AgNi
• rated current: 16A
• max. switching current: 25A
• max. switching voltage: 440V AC
• max. switching power: 4000VA
• operate/release time: 15/5ms
• testing voltage
coil/contact: 6000V
opening contact: 1000V
• lifetime
mechanical: 10x106 cycles
electrical: 10x104 cycles
• operating temperature: -40...+70°C

46.61

46.61 230V AC

25969 46.61 230V AC 46.61.8.230.0040 46.61.8.230.0040 rated current: 8-16A. • socket mount or direct connection via Faston connectors• AC coils & DC coils sensitive (500mW)• available with: lockable test button, mechanical indicator• relays protection class RTII• contact1: SPDTcontact material: AgNi• rated current: 16A• max. switching current: 25A• max. switching voltage: 440V AC• max. switching power: 4000VA• operate/release time: 15/5ms• testing voltagecoil/contact: 6000Vopening contact: 1000V• lifetimemechanical: 10x106 cycleselectrical: 10x104 cycles• operating temperature: -40...+70°C

Specifications

manufacturer
Manufacturer's name 46.61.8.230.0040
Rated current [mA] 5
Nominal resistance [Ω] 28000
Response voltage [V] 184...253
Max. switching voltage [V] 440
Max. switching power [VA] 4000
Data Sheet

Unit price

9,59 €

Stock: 19
Further delivery:
CW 10/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
