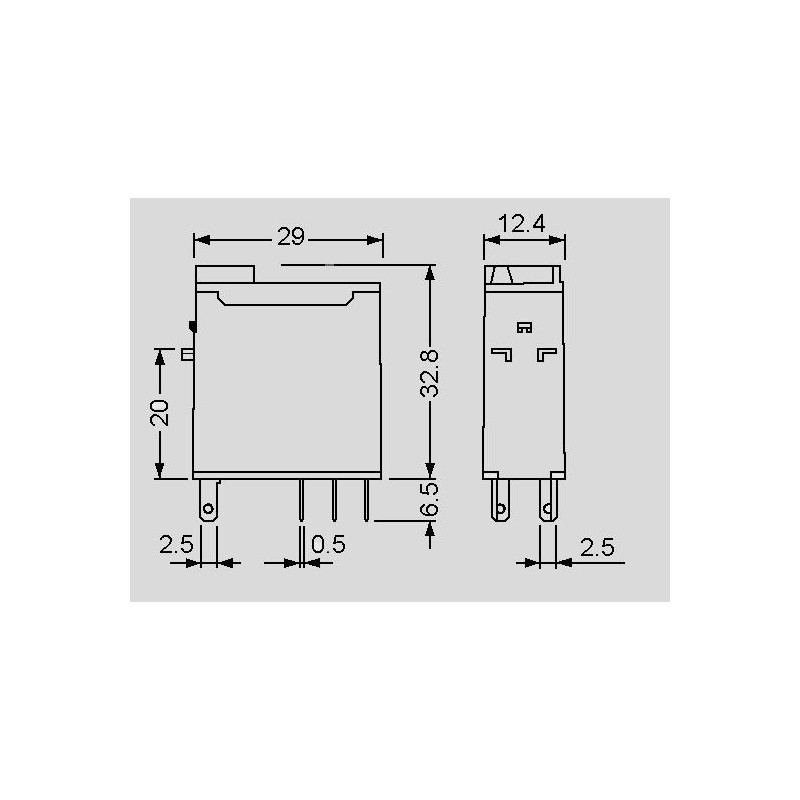

> Passive elements>Relays>Electromechanical relays>Finder industrial relays, 8 to 16A, 1 or 2 changeover contacts, 29x12,4x32,8mm, 46 series>46.52 24V AC

Manufacturers

46.52 24V AC

rated current: 8-16A

• socket mount or direct connection via Faston connectors
• AC coils & DC coils sensitive (500mW)
• available with: lockable test button, mechanical indicator
• relays protection class RTII

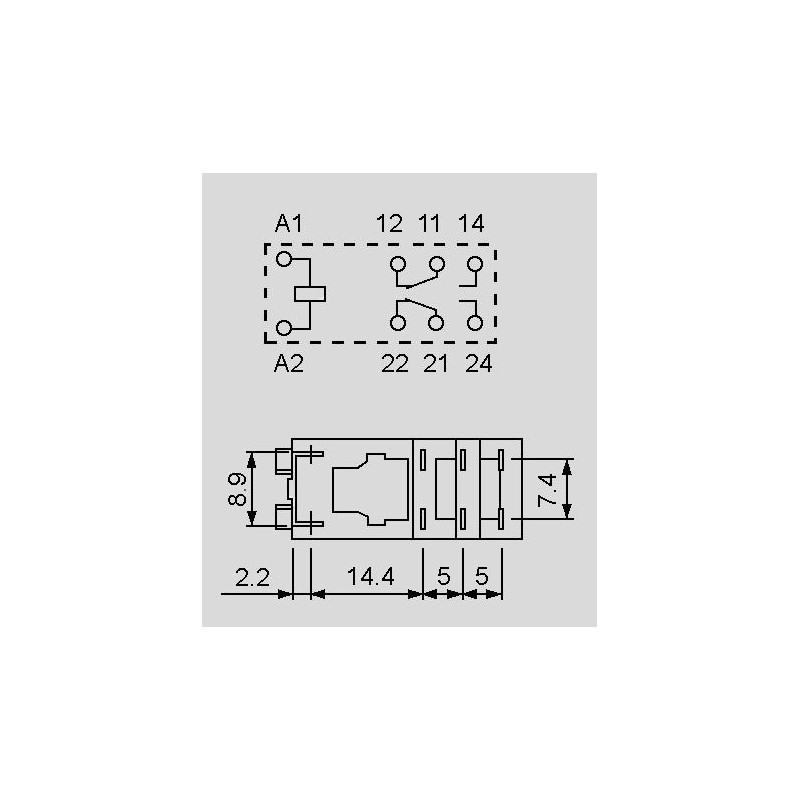

• contact: DPDT
contact material: AgNi
• rated current: 8A
• max. switching current: 15A
• max. switching voltage: 440V AC
• max. switching power: 2000VA
• operate/release time: 10/3ms
• testing voltage
coil/contact: 6000V
opening contact: 1000V
• lifetime
mechanical: 10x106 cycles
electrical: 10x104 cycles
• operating temperature: -40...+70°C

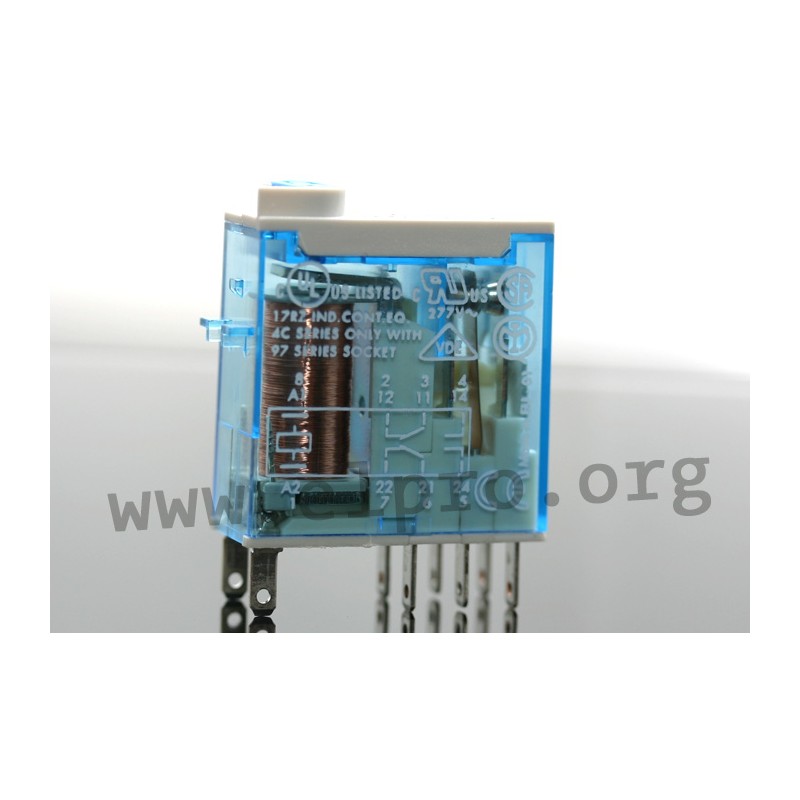

Finder 46.52 series

46.52 24V AC

25965 46.52 24V AC 46.52.8.024.0040 46.52.8.024.0040 rated current: 8-16A. • socket mount or direct connection via Faston connectors• AC coils & DC coils sensitive (500mW)• available with: lockable test button, mechanical indicator• relays protection class RTII• contact: DPDTcontact material: AgNi• rated current: 8A• max. switching current: 15A• max. switching voltage: 440V AC• max. switching power: 2000VA• operate/release time: 10/3ms• testing voltagecoil/contact: 6000Vopening contact: 1000V• lifetimemechanical: 10x106 cycleselectrical: 10x104 cycles• operating temperature: -40...+70°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 46.52.8.024.0040
Rated current [mA] 45
Nominal resistance [Ω] 320
Response voltage [V] 19,2...26,4
Max. switching voltage [V] 440
Max. switching power [VA] 2000
Data Sheet

Unit price

3,99 €

Stock: 2
