43.41 12V Z

Finder relay series 43

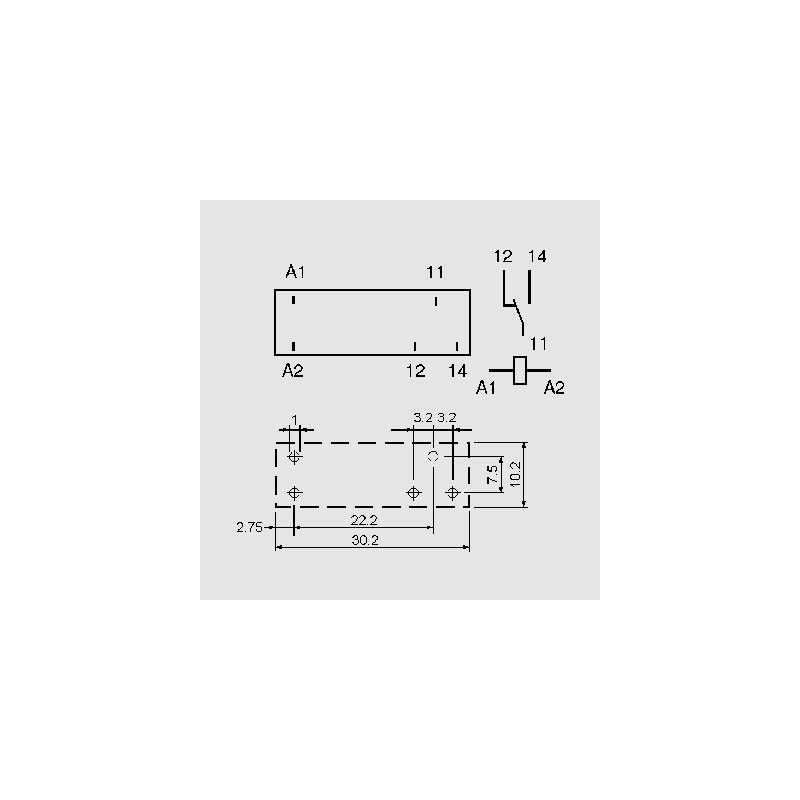

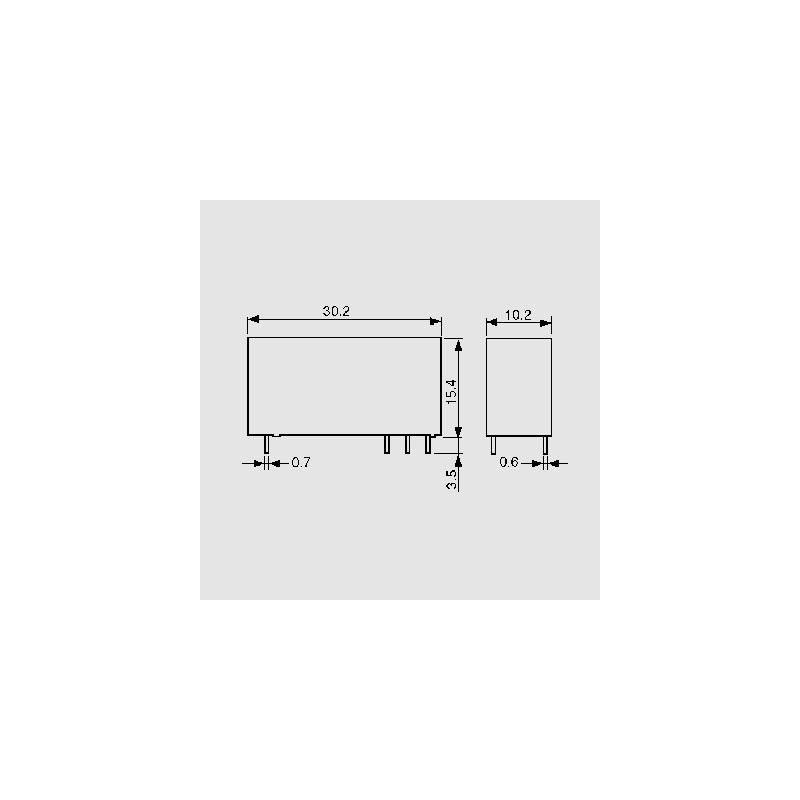

Relays in a 30,2x10,2x15,4mm housing with 10A and an SPDT contact. These devices comply with RTII (flux proof) and have a very low coil consumption (0,25W). They have a protective separation between coil and contacts according to VDE0160, EN50178, EN60204 as well as EN60335 and a sensitive DC coil. We offer the following types of this Finder series: 43.41.7.012.2000, 43.41.7.012.0000, 43.41.7.024.2000, 43.41.7.024.0000, 43.41.7.012.4000 and 43.41.7.024.4000.

  • contact: SPDT
  • switching current: 10A
  • maximal switching voltage: 400V AC
  • service life mechanical: 10x106 cycles
  • service life electrical: 10x104 cycles
  • operating temperature: -40 to +85°C

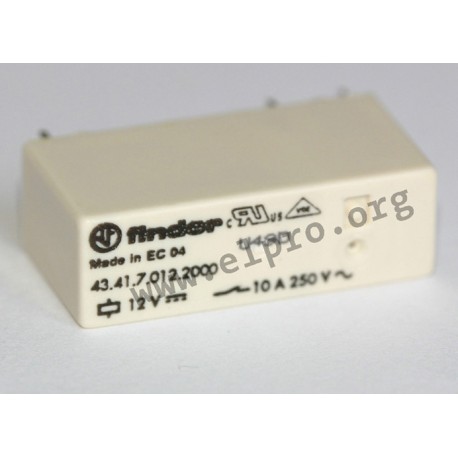

Finder series 43

43.41 12V Z

25929 43.41 12V Z 43.41.7.012.4000 43.41.7.012.4000 Finder relay series 43. Relays in a 30,2x10,2x15,4mm housing with 10A and an SPDT contact. These devices comply with RTII (flux proof) and have a very low coil consumption (0,25W). They have a protective separation between coil and contacts according to VDE0160, EN50178, EN60204 as well as EN60335 and a sensitive DC coil. We offer the following types of this Finder series: 43.41.7.012.2000, 43.41.7.012.0000, 43.41.7.024.2000, 43.41.7.024.0000, 43.41.7.012.4000 and 43.41.7.024.4000. contact: SPDT switching current: 10A maximal switching voltage: 400V AC service life mechanical: 10x106 cycles service life electrical: 10x104 cycles operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 43.41.7.012.4000
Rated current [mA] 20,7
Switching current [A] 10
Nominal resistance [Ω] 580
Response voltage [V] 8,4...18
Max. switching power [VA] 2500
Data Sheet

Unit price

4,29 €

Stock: 20
Further delivery:
CW 05/2025

Minimum order quantity 10 units or
multiples of 10.
