43.41.7.012.0000

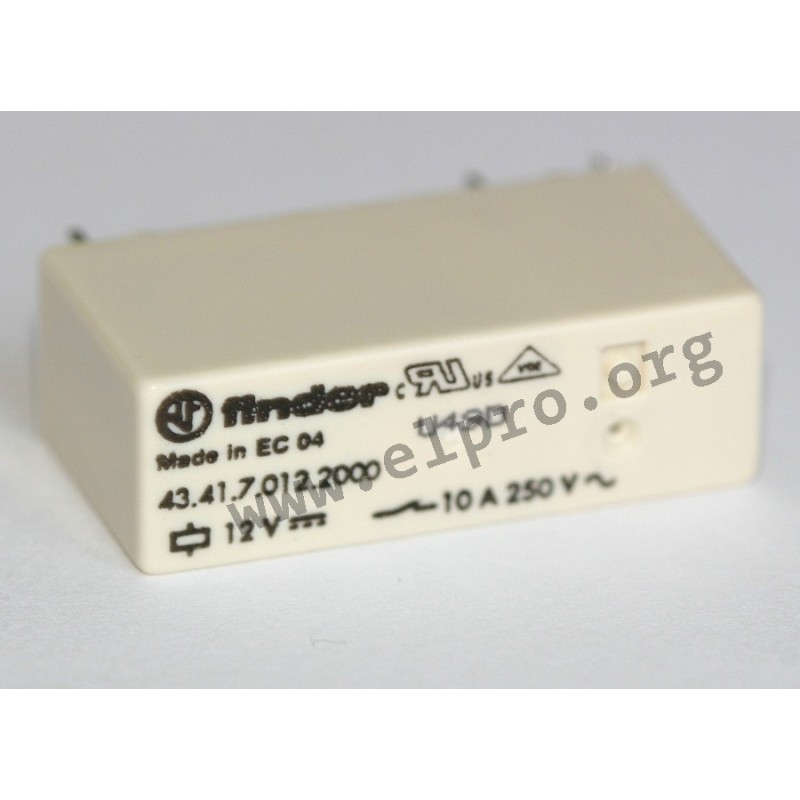

Finder relay series 43

Relays in a 30,2x10,2x15,4mm housing with 10A and an SPDT contact. These devices comply with RTII (flux proof) and have a very low coil consumption (0,25W). They have a protective separation between coil and contacts according to VDE0160, EN50178, EN60204 as well as EN60335 and a sensitive DC coil. We offer the following types of this Finder series: 43.41.7.012.2000, 43.41.7.012.0000, 43.41.7.024.2000, 43.41.7.024.0000, 43.41.7.012.4000 and 43.41.7.024.4000.

  • contact: SPDT
  • switching current: 10A
  • maximal switching voltage: 400V AC
  • service life mechanical: 10x106 cycles
  • service life electrical: 10x104 cycles
  • operating temperature: -40 to +85°C
43.41.7.012.0000, Finder PCB relays, 10A, 1 changeover contact, 43 series

43.41.7.012.0000

244167 43.41.7.012.0000 43.41.7.012.0000 Finder relay series 43. Relays in a 30,2x10,2x15,4mm housing with 10A and an SPDT contact. These devices comply with RTII (flux proof) and have a very low coil consumption (0,25W). They have a protective separation between coil and contacts according to VDE0160, EN50178, EN60204 as well as EN60335 and a sensitive DC coil. We offer the following types of this Finder series: 43.41.7.012.2000, 43.41.7.012.0000, 43.41.7.024.2000, 43.41.7.024.0000, 43.41.7.012.4000 and 43.41.7.024.4000. contact: SPDT switching current: 10A maximal switching voltage: 400V AC service life mechanical: 10x106 cycles service life electrical: 10x104 cycles operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 43.41.7.012.0000
Rated current [mA] 20,7
Nominal voltage [V] 12
Switching current [A] 10
Nominal resistance [Ω] 580
Response voltage [V] 8,4
Data Sheet

Unit price

3,99 €

Stock: 40
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
