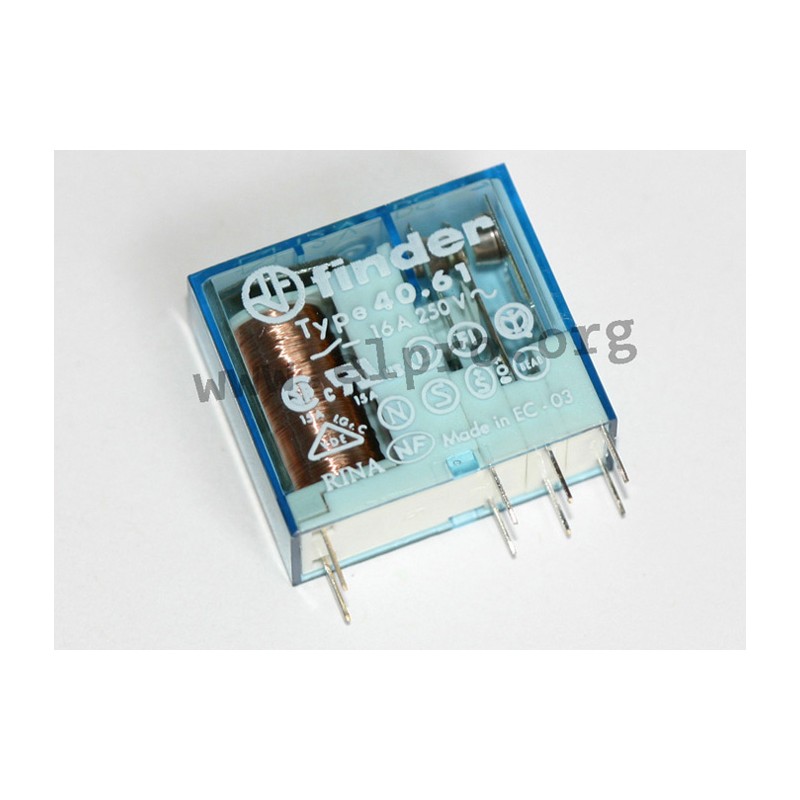

40.61 24V

rated current: 16A

* versions with DC or AC coil
* flux protection (260°C, 5s)
* relay protection class RTII

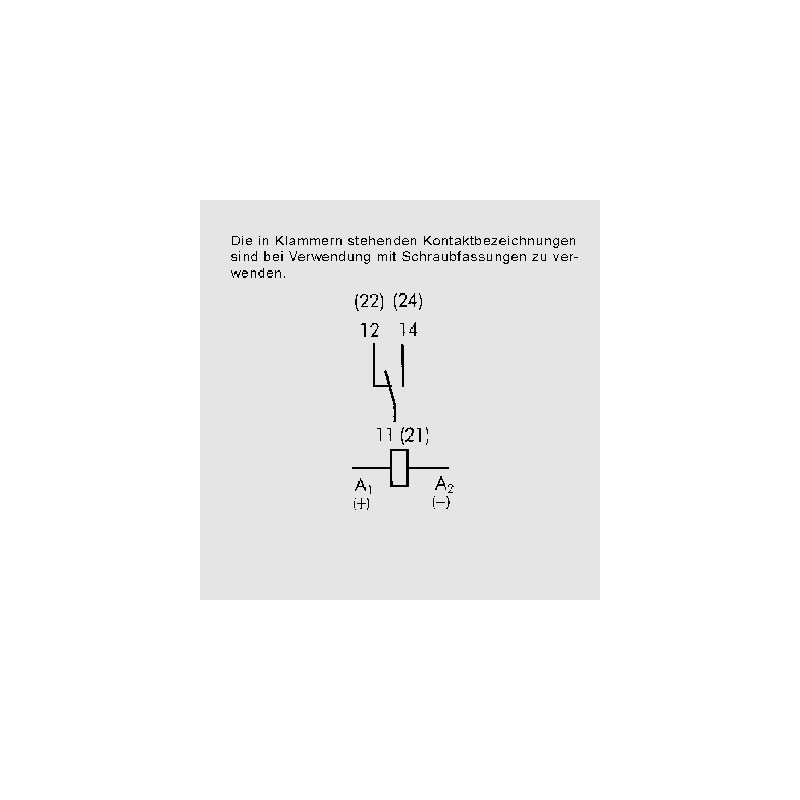

* contact: SPDT (Double Contact)
* contact material:
40.61_: AgCdO
40.61_A: AgSnO2
* rated current: 16A
* max. switching current: 30A
* max. switching voltage: 400V AC
* max. switching power (AC/DC): 750/4000VA
* creepage/clearance: 8mm
* operate/release time: 7/3ms
* testing voltage
coil/contact: 6000V
opening contact: 1000V
* lifetime
mechanical (AC/DC): 10x106/20x106 operations
electrical: 10x104 operations
* operating temperature: -40...+85°C

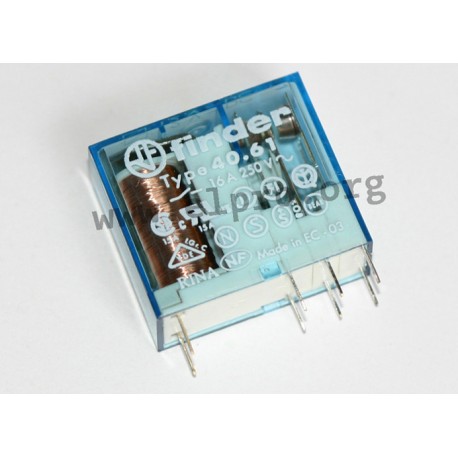

Finder 40.61 series

40.61 24V

11881 40.61 24V 40.61.9.024.4000 40.61.9.024.4000 rated current: 16A. * versions with DC or AC coil* flux protection (260°C, 5s)* relay protection class RTII* contact: SPDT (Double Contact)* contact material: 40.61_: AgCdO40.61_A: AgSnO2* rated current: 16A* max. switching current: 30A* max. switching voltage: 400V AC* max. switching power (AC/DC): 750/4000VA* creepage/clearance: 8mm* operate/release time: 7/3ms* testing voltage coil/contact: 6000Vopening contact: 1000V* lifetimemechanical (AC/DC): 10x106/20x106 operationselectrical: 10x104 operations* operating temperature: -40...+85°C

Specifications

manufacturer
Manufacturer's name 40.61.9.024.4000
Rated current [mA] 27
Nominal resistance [Ω] 900
Response voltage [V] 17,5...36
Data Sheet

Unit price

4,79 €

Stock: 192
Next incoming goods:
CW 02/2025
100 units

Further delivery:
CW 10/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
