40.31 12V

rated current: 10A

• vertical, standard
• versions with DC or AC coil
• flux protection (260°C, 5s)
• protection class RTII

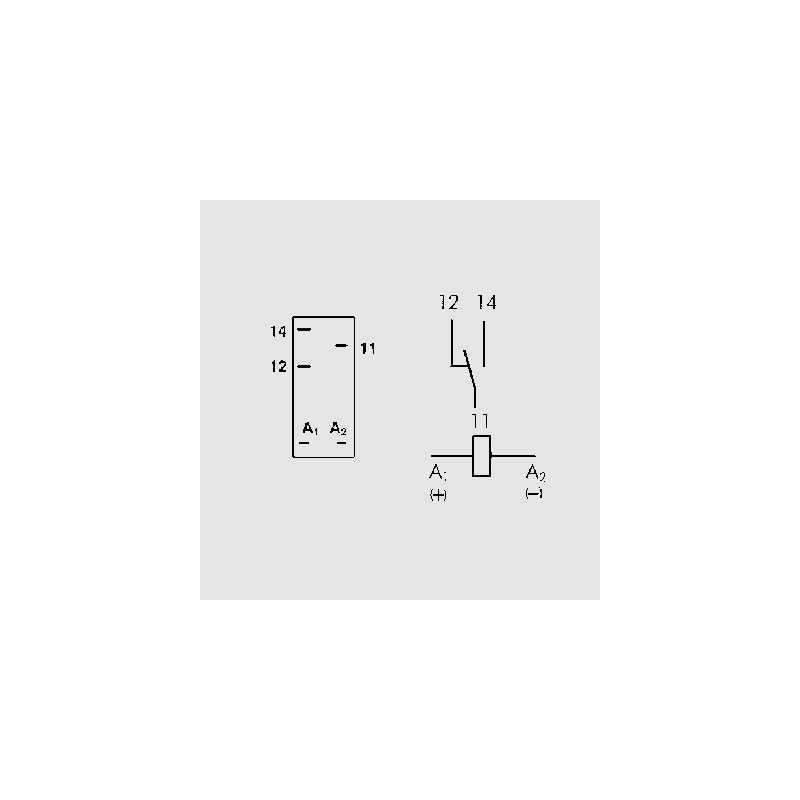

• contact: SPDT
• contact material: AgNi
• rated current: 10A
• max. switching current: 20A
• max. switching voltage: 400V AC
• max. switching power: 500VA
• creepage/clearance: 8mm
• operate/release time
standard: 7/3ms
sensitive: 12/4ms
• testing voltage
coil/contact: 6000V
opening contact: 1000V
• lifetime
mechanical (AC/DC): 10x106/ 20x106 operations
electrical: 20x104 operations
• operating temperature: -40...+85°C

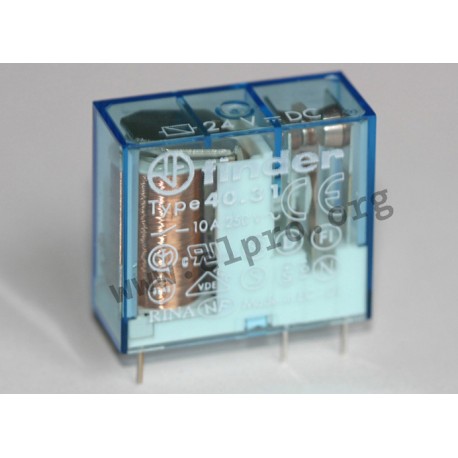

Finder 40.31 series

40.31 12V

11871 40.31 12V 40.31.9.012.0000 40.31.9.012.0000 rated current: 10A. • vertical, standard• versions with DC or AC coil• flux protection (260°C, 5s)• protection class RTII• contact: SPDT• contact material: AgNi• rated current: 10A• max. switching current: 20A• max. switching voltage: 400V AC• max. switching power: 500VA• creepage/clearance: 8mm• operate/release timestandard: 7/3mssensitive: 12/4ms• testing voltagecoil/contact: 6000Vopening contact: 1000V• lifetimemechanical (AC/DC): 10x106/ 20x106 operationselectrical: 20x104 operations• operating temperature: -40...+85°C

Specifications

manufacturer
Manufacturer's name 40.31.9.012.0000
Rated current [mA] 55
Nominal resistance [Ω] 220
Switching current [A] 10
Response voltage [V] 8,8...18
Max. switching voltage [V] 250
Max. switching power [VA] 2500
Data Sheet

Unit price

3,89 €

Stock: 90
Next incoming goods:
CW 49/2024
50 units

Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
