> Passive elements>Relays>Electromechanical relays>Finder PCB relays, 8A, 2 changeover contacts, 40 series>40.52 12V

Manufacturers

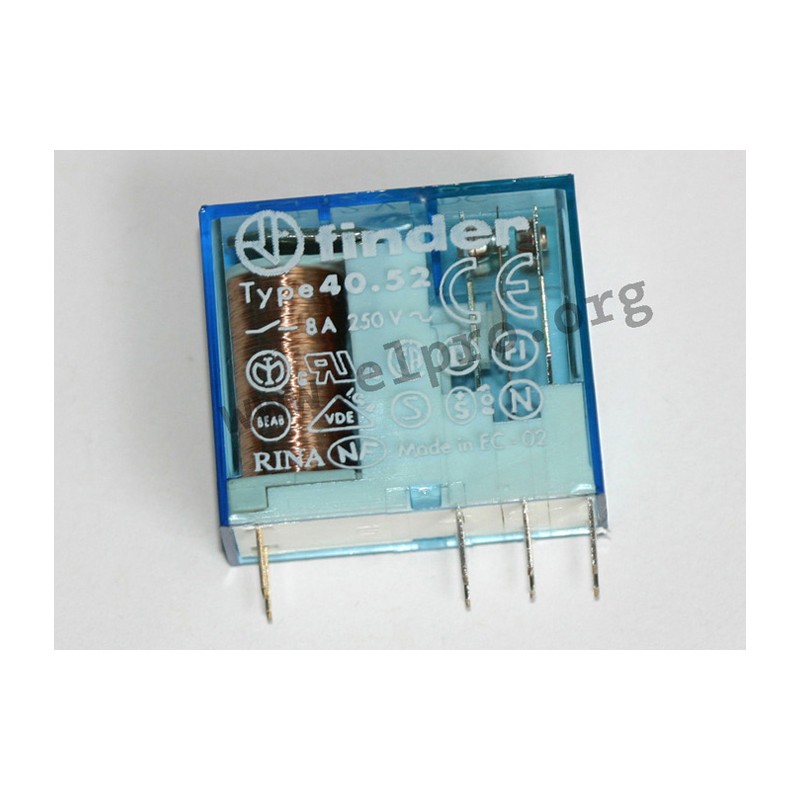

40.52 12V

rated current: 8A

* version AC/DC (F4052_) or DC sensitive DC 0,5W (F40527_)
* flux protection (260°C, 5s)
* relay protection class RTII

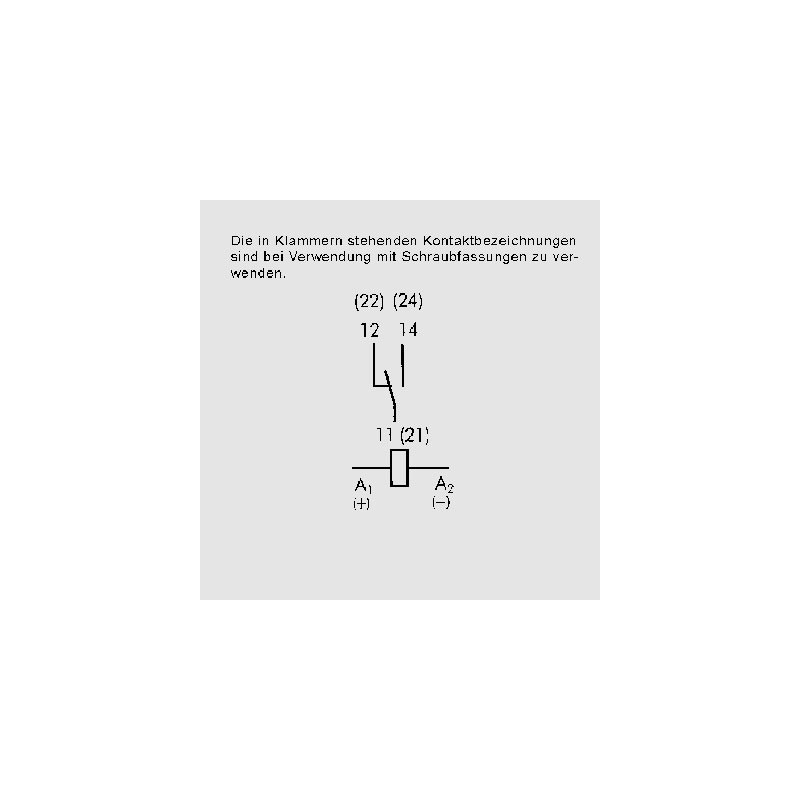

* contact: DPDT
* contact material
40.52_: AgNi
40.52_G: AgNi + Au (5µm)
* rated current: 8A
* max. switching current: 15A
* max. switching voltage: 400V AC
* max. switching power: 2000VA

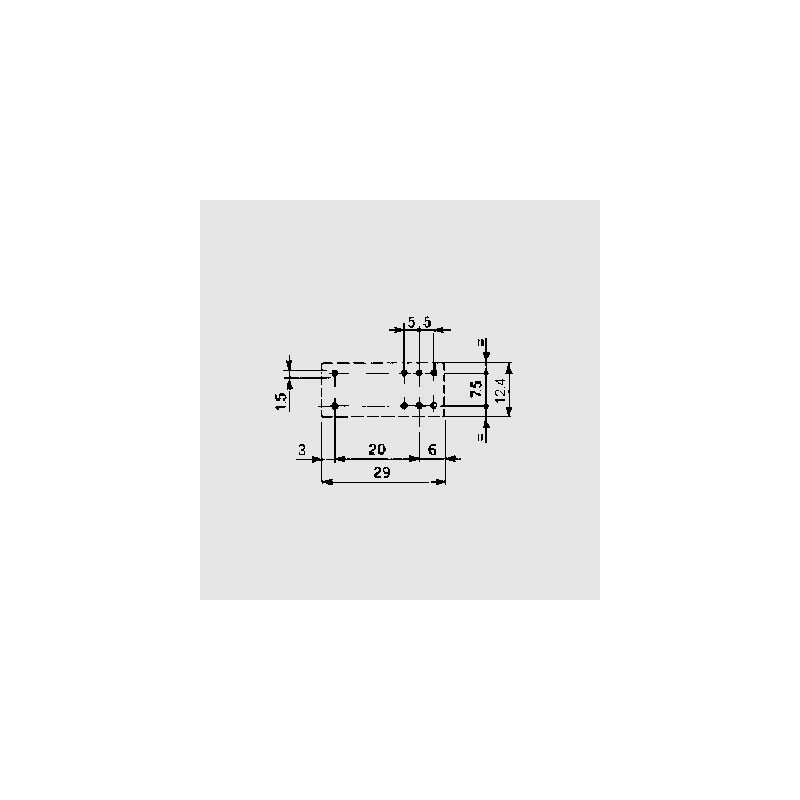

* creepage/clearance: 8mm
* operate/release time
40.52_: 7/3ms
40.52.7_ (sensitive): 12/4ms
* testing voltage
coil/contact: 6000V AC
opening contact: 1000V AC
* lifetime
mechanical (AC/DC): 10x106 / 20x106 operations
electrical: 10x104 operations
* operating temperature: -40...+85°C

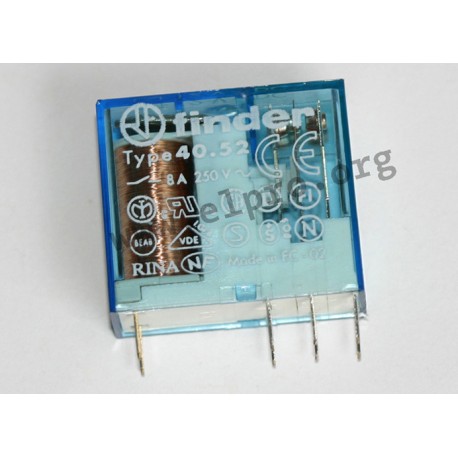

Finder 40.52 series

40.52 12V

11876 40.52 12V 40.52.9.012.0000 40.52.9.012.0000 rated current: 8A. * version AC/DC (F4052_) or DC sensitive DC 0,5W (F40527_)* flux protection (260°C, 5s)* relay protection class RTII* contact: DPDT* contact material40.52_: AgNi40.52_G: AgNi + Au (5µm)* rated current: 8A* max. switching current: 15A* max. switching voltage: 400V AC* max. switching power: 2000VA* creepage/clearance: 8mm* operate/release time40.52_: 7/3ms40.52.7_ (sensitive): 12/4ms* testing voltagecoil/contact: 6000V ACopening contact: 1000V AC* lifetimemechanical (AC/DC): 10x106 / 20x106 operationselectrical: 10x104 operations* operating temperature: -40...+85°C

Specifications

manufacturer
Manufacturer's name 40.52.9.012.0000
Rated current [mA] 55
Switching current [A] 2x8
Nominal resistance [Ω] 220
Response voltage [V] 8,8...18
Max. switching voltage [V] 250
Max. switching power [VA] 2000
Data Sheet

Unit price

5,09 €

Stock: 211
Further delivery:
CW 14/2025

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
