38.51 12V gold

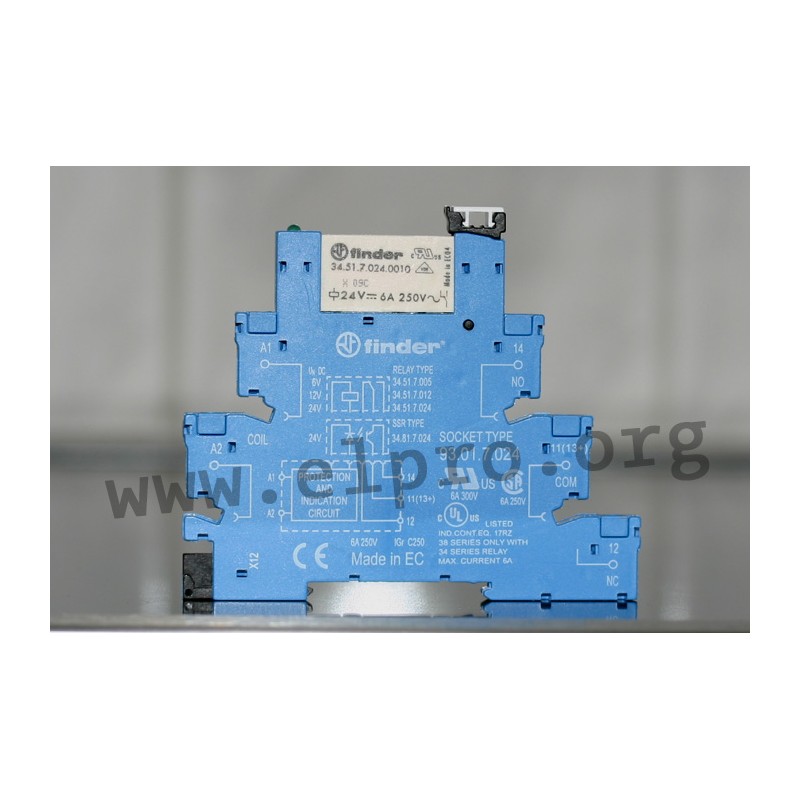

Finder switching relay series 38

Extremely narrow (6,2mm) relays with 6A and 1 changeover contact (SPDT). These components consist of a relay interface module with a green LED and a 34.51 series relay. They have an eject lever for easy replacement of the relay and meet protection class IP20. We offer various types of this Finder series.

  • contact: SPDT
  • contact material: AgNi
  • switching current: 6A
  • maximal switching voltage: 400V AC
  • maximal switching power: 1500VA
  • service life mechanical: 10x106 cycles
  • service life electrical: 60x103 cycles

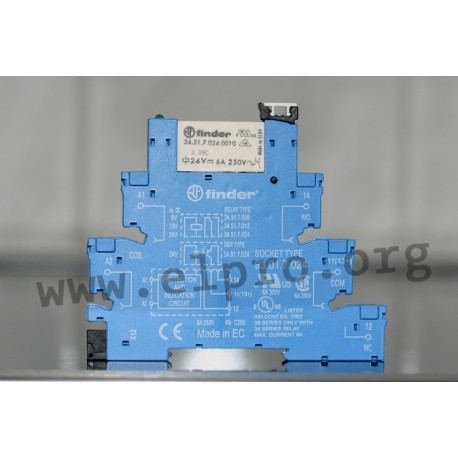

Finder 38.51 series

38.51 12V gold

25987 38.51 12V gold 38.51.7.012.5050 38.51.7.012.5050 Finder switching relay series 38. Extremely narrow (6,2mm) relays with 6A and 1 changeover contact (SPDT). These components consist of a relay interface module with a green LED and a 34.51 series relay. They have an eject lever for easy replacement of the relay and meet protection class IP20. We offer various types of this Finder series. contact: SPDT contact material: AgNi switching current: 6A maximal switching voltage: 400V AC maximal switching power: 1500VA service life mechanical: 10x106 cycles service life electrical: 60x103 cycles

Specifications

manufacturer
Manufacturer's name 38.51.7.012.5050
Rated current [mA] 16
Switching current [A] 6
Nominal resistance [Ω] 840
Response voltage [V] 9,6...13,2
Max. switching power [VA] 1500
Data Sheet

Unit price

16,69 €

Stock: 5
Further delivery:
CW 10/2025

Minimum order quantity 5 units or
multiples of 5.
