38.51.8.240.5060

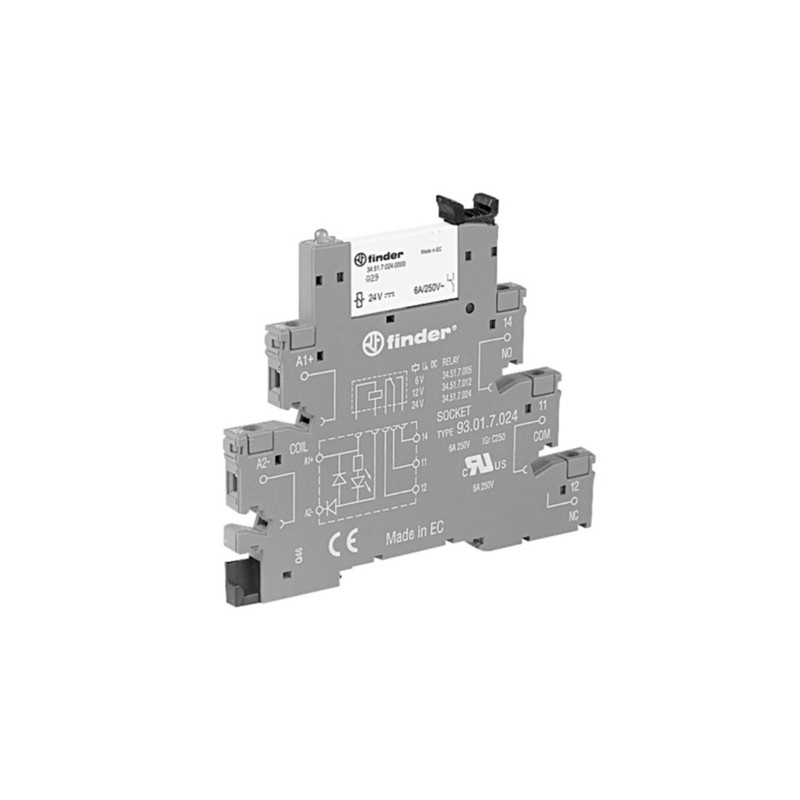

Finder switching relay series 38

Extremely narrow (6,2mm) relays with 6A and 1 changeover contact (SPDT). These components consist of a relay interface module with a green LED and a 34.51 series relay. They have an eject lever for easy replacement of the relay and meet protection class IP20. We offer various types of this Finder series.

  • contact: SPDT
  • contact material: AgNi
  • switching current: 6A
  • maximal switching voltage: 400V AC
  • maximal switching power: 1500VA
  • service life mechanical: 10x106 cycles
  • service life electrical: 60x103 cycles

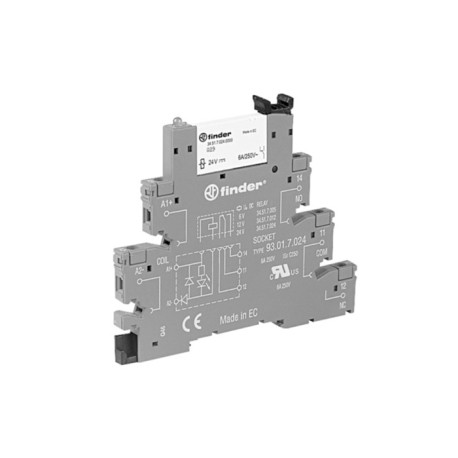

38.51.8.240.5060, Finder switching relays, 6A, 1 changeover contact, 38 series

38.51.8.240.5060

247732 38.51.8.240.5060 38.51.8.240.5060 Finder switching relay series 38. Extremely narrow (6,2mm) relays with 6A and 1 changeover contact (SPDT). These components consist of a relay interface module with a green LED and a 34.51 series relay. They have an eject lever for easy replacement of the relay and meet protection class IP20. We offer various types of this Finder series. contact: SPDT contact material: AgNi switching current: 6A maximal switching voltage: 400V AC maximal switching power: 1500VA service life mechanical: 10x106 cycles service life electrical: 60x103 cycles

Specifications

manufacturer
Manufacturer's name 38.51.8.240.5060
Rated current [mA] 3
Nominal voltage [V] 230...240

Unit price

21,79 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
