34.51 48V

rated current: 6A

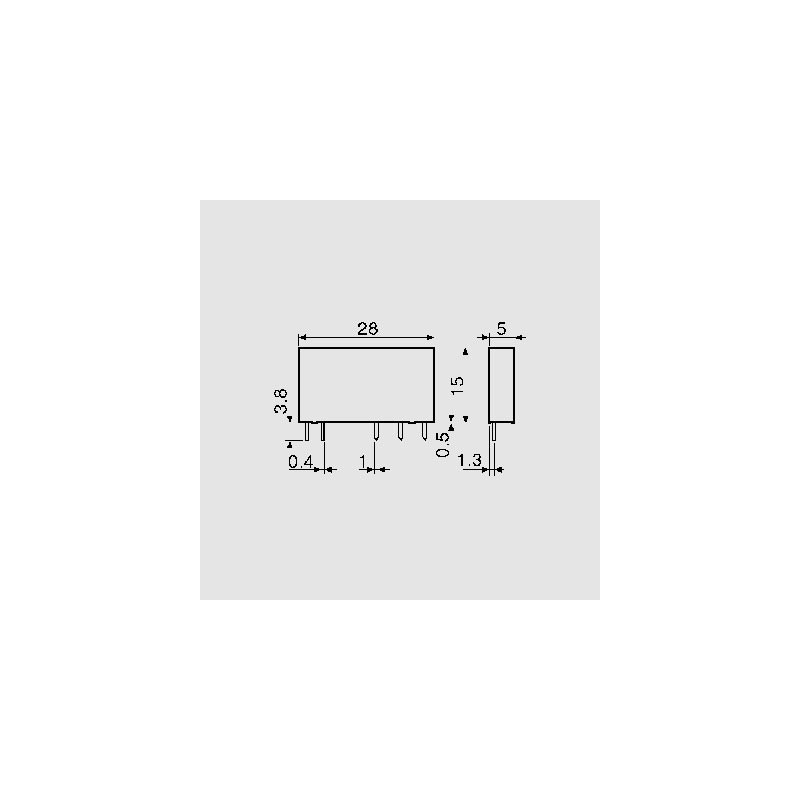

* ultra-slim (5mm)
* high-density mounting due to low dimensions
* low power consumption
* high dielectric strength, low coil consumption
* protective separation according to EN50178, EN60204 to contact and coil
* DC drive
* protection class II to VDE0631 / EN60730

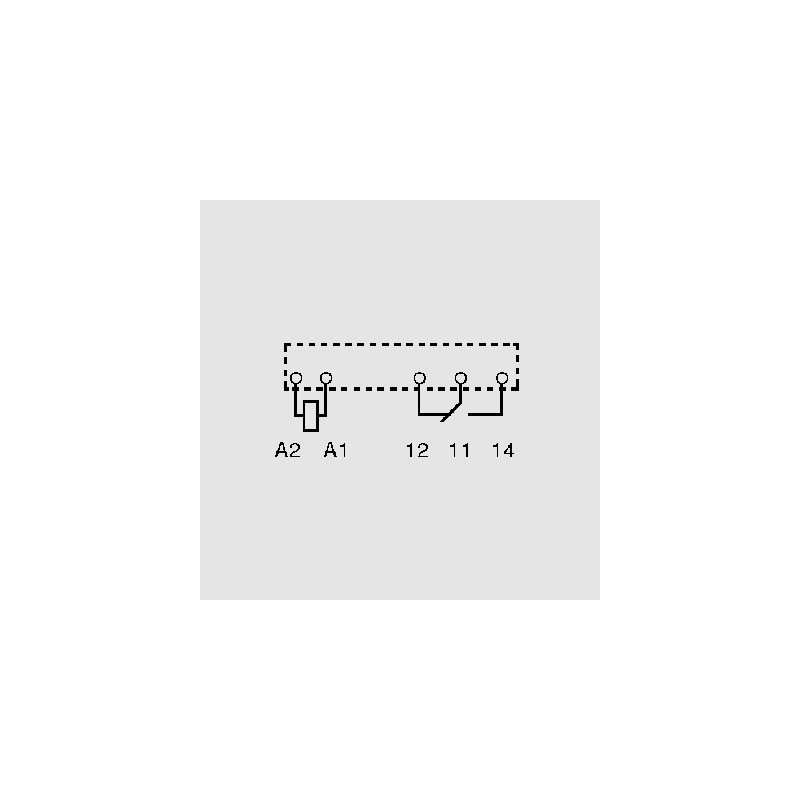

* contact: SPDT
* contact material
34.51_: AgNi
34.51_gold: AgNi+Au (5µm)
* rated current: 6A
* max. switching current: 10A
* rated voltage: 250V AC
* max. switching voltage: 400V AC
* max. switching power
AC1/230V: 1500VA
AC15/230V: 300VA
* creepage/clearance: 8/8mm
* operate/release time: 5/3ms
* testing voltage
coil/contact: 4000V AC
opening contact: 1000V AC
* lifetime
mechanical: 10x106 operations
electrical: 60x103 operations
* operating temperature: -40...+85°C

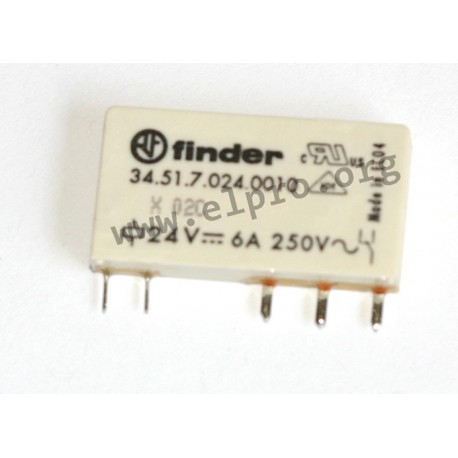

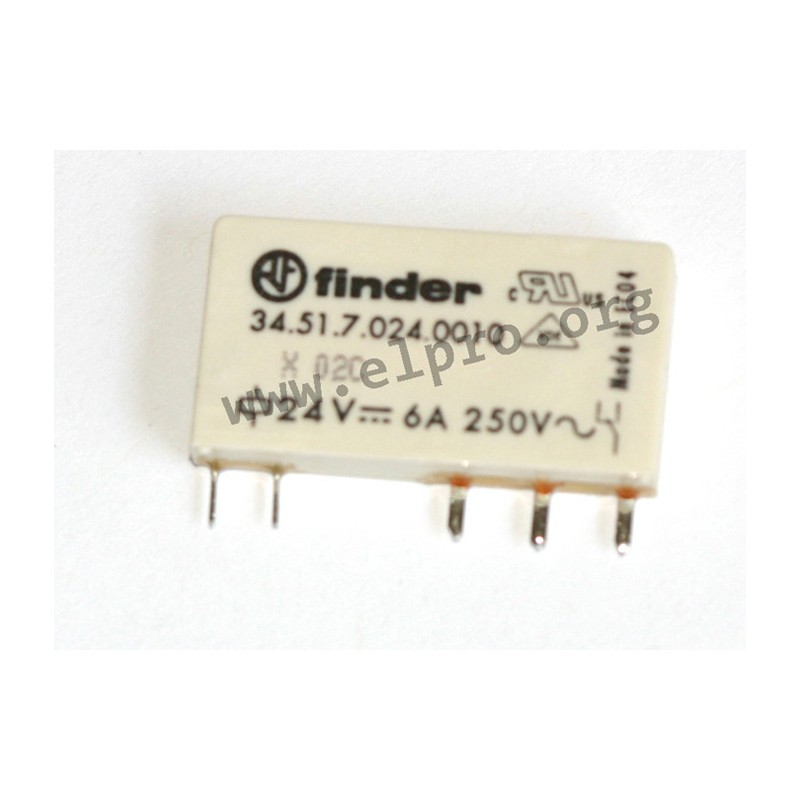

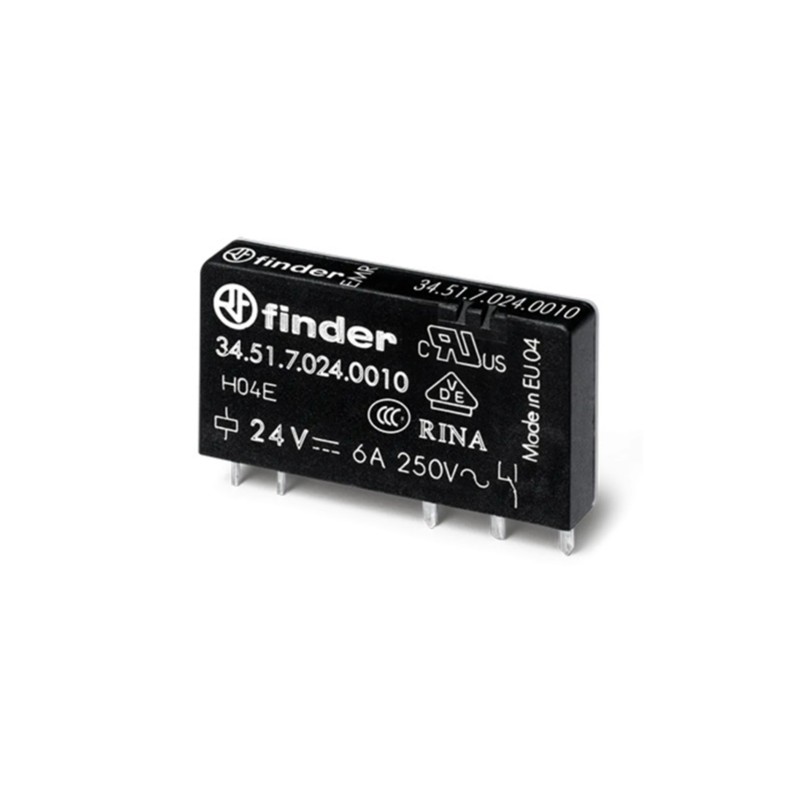

Finder series 34

34.51 48V

25963 34.51 48V 34.51 48V rated current: 6A. * ultra-slim (5mm)* high-density mounting due to low dimensions* low power consumption* high dielectric strength, low coil consumption* protective separation according to EN50178, EN60204 to contact and coil* DC drive* protection class II to VDE0631 / EN60730* contact: SPDT* contact material34.51_: AgNi34.51_gold: AgNi+Au (5µm)* rated current: 6A* max. switching current: 10A* rated voltage: 250V AC* max. switching voltage: 400V AC* max. switching power AC1/230V: 1500VAAC15/230V: 300VA* creepage/clearance: 8/8mm* operate/release time: 5/3ms* testing voltagecoil/contact: 4000V ACopening contact: 1000V AC* lifetimemechanical: 10x106 operationselectrical: 60x103 operations* operating temperature: -40...+85°C

Discontinued items. Only remainder of stock available.

Specifications

Rated current [mA] 3,9
Switching current [A] 6
Nominal resistance [Ω] 12300
Response voltage [V] 33,6...72
Max. switching power [VA] 1500
Data Sheet Data Sheet

Unit price

2,29 €

Stock: 3
