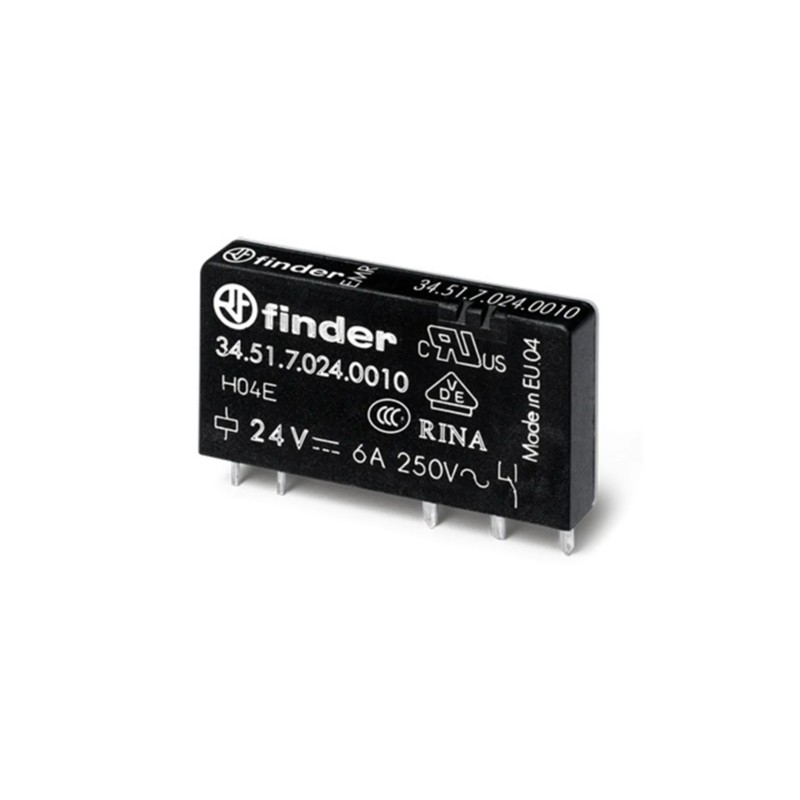

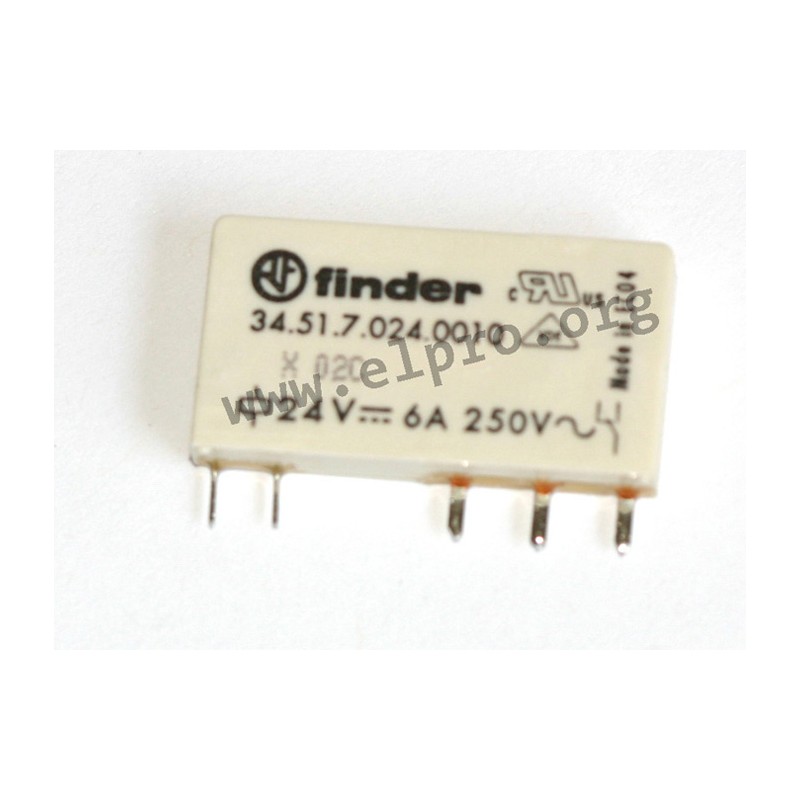

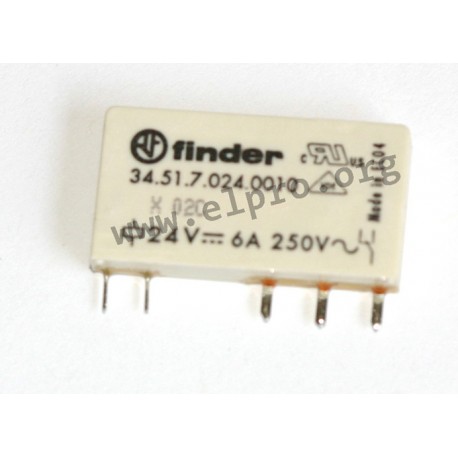

34.51 12 V gold
* high-density mounting due to low dimensions
* low power consumption
* high dielectric strength, low coil consumption
* protective separation according to EN50178, EN60204 to contact and coil
* DC drive
* protection class II to VDE0631 / EN60730

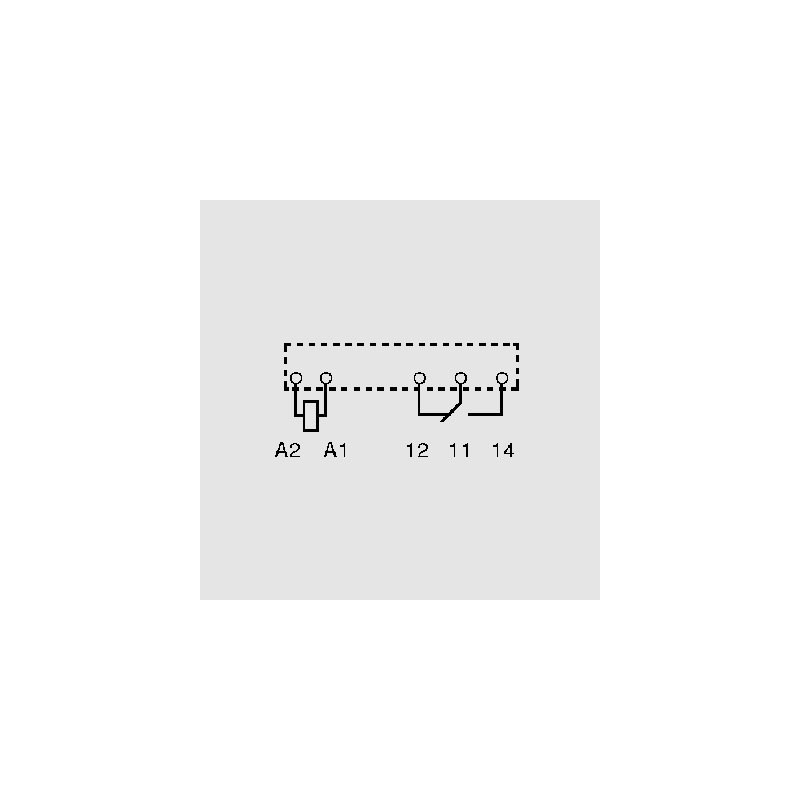

* contact: SPDT
* contact material
34.51_: AgNi
34.51_gold: AgNi+Au (5µm)
* rated current: 6A
* max. switching current: 10A
* rated voltage: 250V AC
* max. switching voltage: 400V AC
* max. switching power
AC1/230V: 1500VA
AC15/230V: 300VA
* creepage/clearance: 8/8mm
* operate/release time: 5/3ms
* testing voltage
coil/contact: 4000V AC
opening contact: 1000V AC
* lifetime
mechanical: 10x106 operations
electrical: 60x103 operations
* operating temperature: -40...+85°C
rated current: 6A
* ultra-slim (5mm)* high-density mounting due to low dimensions
* low power consumption
* high dielectric strength, low coil consumption
* protective separation according to EN50178, EN60204 to contact and coil
* DC drive
* protection class II to VDE0631 / EN60730
* contact: SPDT
* contact material
34.51_: AgNi
34.51_gold: AgNi+Au (5µm)
* rated current: 6A
* max. switching current: 10A
* rated voltage: 250V AC
* max. switching voltage: 400V AC
* max. switching power
AC1/230V: 1500VA
AC15/230V: 300VA
* creepage/clearance: 8/8mm
* operate/release time: 5/3ms
* testing voltage
coil/contact: 4000V AC
opening contact: 1000V AC
* lifetime
mechanical: 10x106 operations
electrical: 60x103 operations
* operating temperature: -40...+85°C
34.51 12 V gold
Specifications
| manufacturer | Finder |
| Manufacturer's name | 34.51.7.012.5010 |
| Rated current [mA] | 14,2 |
| Switching current [A] | 6 |
| Nominal resistance [Ω] | 848 |
| Response voltage [V] | 8,4...18 |
| Max. switching power [VA] | 1500 |
