32.21 1xA 12V

rated current: 6A

* small power relay in Dual-In-Line design
* sensitive coil 200mV
* base insulated in accordance with VDE0435
* relay protection: RT III (watertight)
* contact

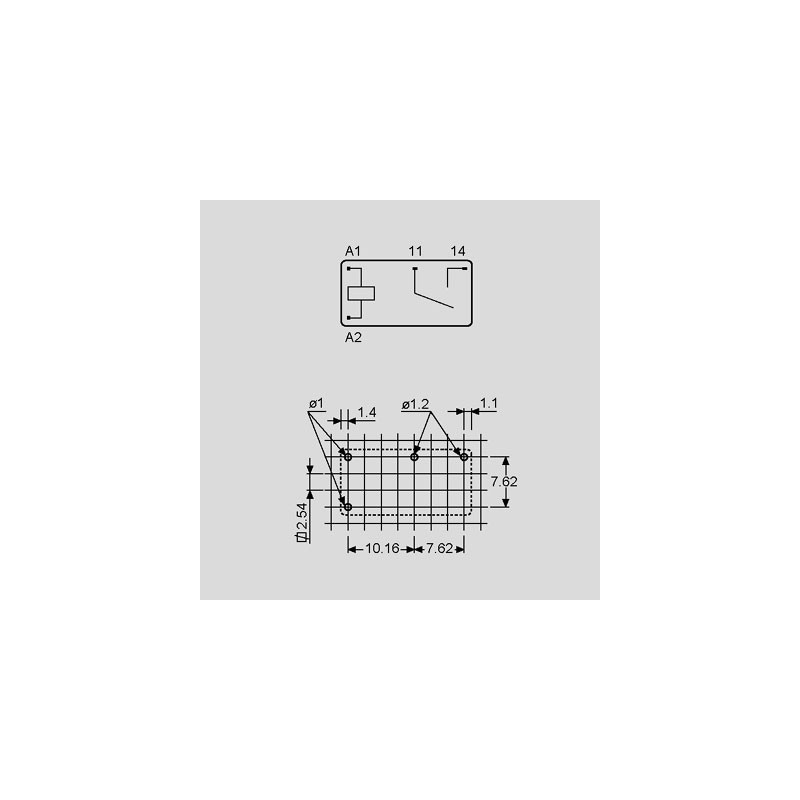

32.21 1xA: SPST-NO

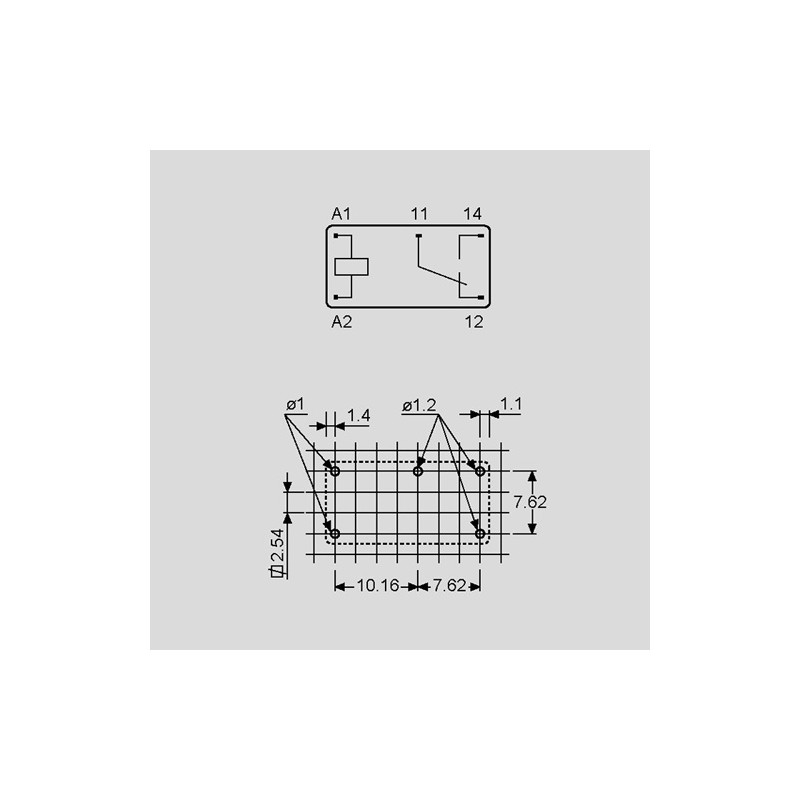

32.21 1xU: SPDT
* contact material: AgCdO2
* rated current: 6A
* max. switching current: 15A
* max. switching voltage: 400V AC
* max. switching power
AC1: 1500VA
AC15 (230V AC): 250VA
* operate/release time
32.21 1xA: 6/2ms
32.21 1xU: 6/4ms
* testing voltage
coil/contact: 4000V AC
opening contact: 1000V AC
* lifetime
mechanical: 20x106 operations
electrical: 10x104 operations
* operating temperature: -40...+85°C

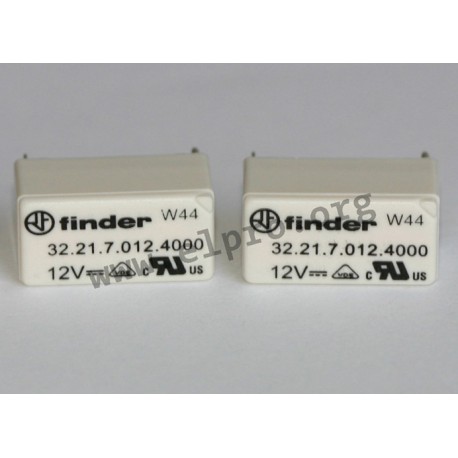

Finder series 32

32.21 1xA 12V

11853 32.21 1xA 12V 32.21.7.012.4300 32.21.7.012.4300 rated current: 6A. * small power relay in Dual-In-Line design* sensitive coil 200mV* base insulated in accordance with VDE0435* relay protection: RT III (watertight)* contact32.21 1xA: SPST-NO32.21 1xU: SPDT* contact material: AgCdO2* rated current: 6A* max. switching current: 15A* max. switching voltage: 400V AC* max. switching powerAC1: 1500VAAC15 (230V AC): 250VA* operate/release time32.21 1xA: 6/2ms32.21 1xU: 6/4ms* testing voltage coil/contact: 4000V ACopening contact: 1000V AC* lifetimemechanical: 20x106 operationselectrical: 10x104 operations* operating temperature: -40...+85°C

Specifications

manufacturer
Manufacturer's name 32.21.7.012.4300
Rated current [mA] 16
Switching current [A] 6
Response voltage [V] 9,4....18
Max. switching power [VA] 1500
Data Sheet

Unit price

3,79 €

Stock: 30
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
