30.22 S 5V

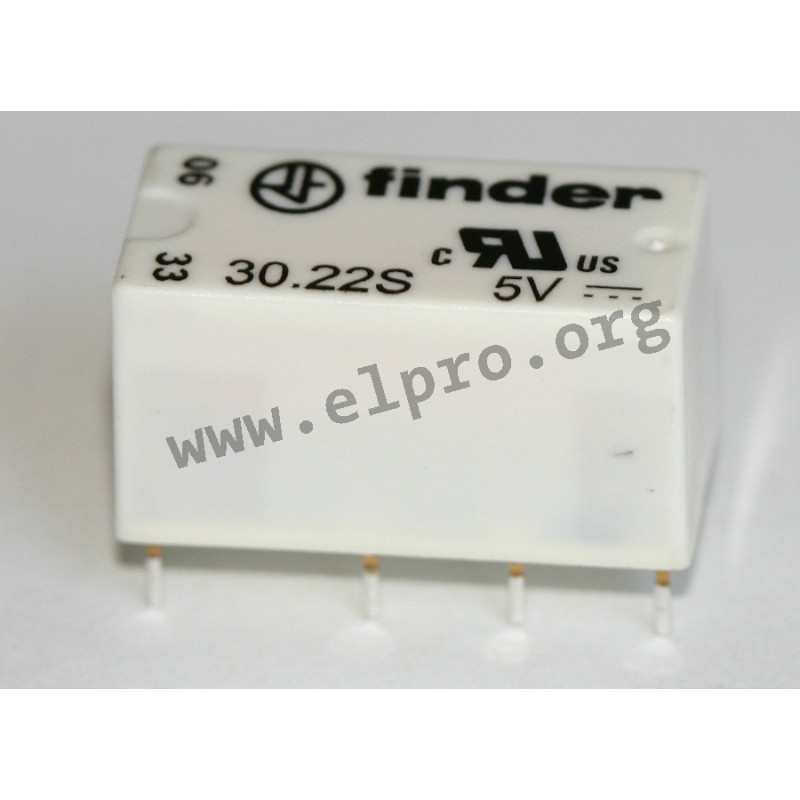

Finder relay series 30.22

Non-polarized relays in a DIL housing with 2A and 2x changeover contacts. These components are suitable for PCB mounting and have hard gold plated contacts (AgNi). They have a sensitive DC coil and comply with relay protection type RT III (wash tight). We offer the following types of this Finder series: 30.22.7.005.0000, 30.22.7.005.0020, 30.22.7.006.0000, 30.22.7.012.0010, 30.22.7.012.0020, 30.22.7.024.0010, 30.22.7.024.0020, 30.22.9.006.0000, 30.22.9.006.0000, 30.22.9.012.0010 and 30.22.9.024.0000.

  • rated current: 2A
  • contact: DPDT
  • maximal switching voltage: 250V AC

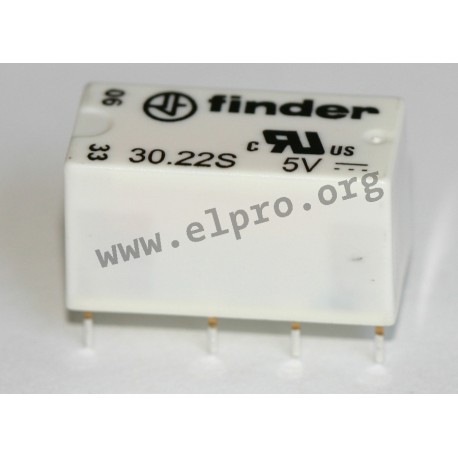

Finder 30.22 series

30.22 S 5V

11851 30.22 S 5V 30.22.7.005.0000 30.22.7.005.0000 Finder relay series 30.22. Non-polarized relays in a DIL housing with 2A and 2x changeover contacts. These components are suitable for PCB mounting and have hard gold plated contacts (AgNi). They have a sensitive DC coil and comply with relay protection type RT III (wash tight). We offer the following types of this Finder series: 30.22.7.005.0000, 30.22.7.005.0020, 30.22.7.006.0000, 30.22.7.012.0010, 30.22.7.012.0020, 30.22.7.024.0010, 30.22.7.024.0020, 30.22.9.006.0000, 30.22.9.006.0000, 30.22.9.012.0010 and 30.22.9.024.0000. rated current: 2A contact: DPDT maximal switching voltage: 250V AC

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 30.22.7.005.0000
Switching current [A] 3
Response voltage [V] 3,7...7,5
Max. switching voltage [V] 250
Max. switching power [VA] 25
Data Sheet

Unit price

5,69 €

Stock: 27

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
