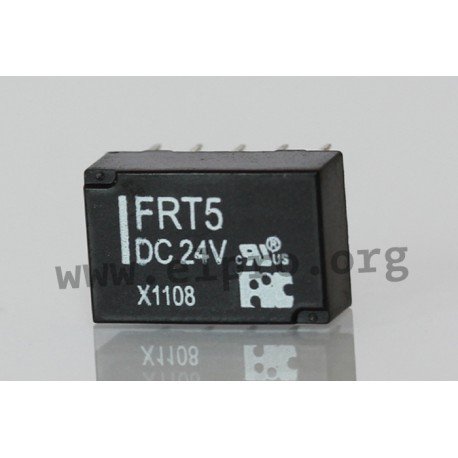

FRT5 DC 12V

rated current: 1A

* small size and ultra slim (only 5mm)
* low coil power consumption with 140mW
* single side stable
* wash tight construction RTIII (IP67)

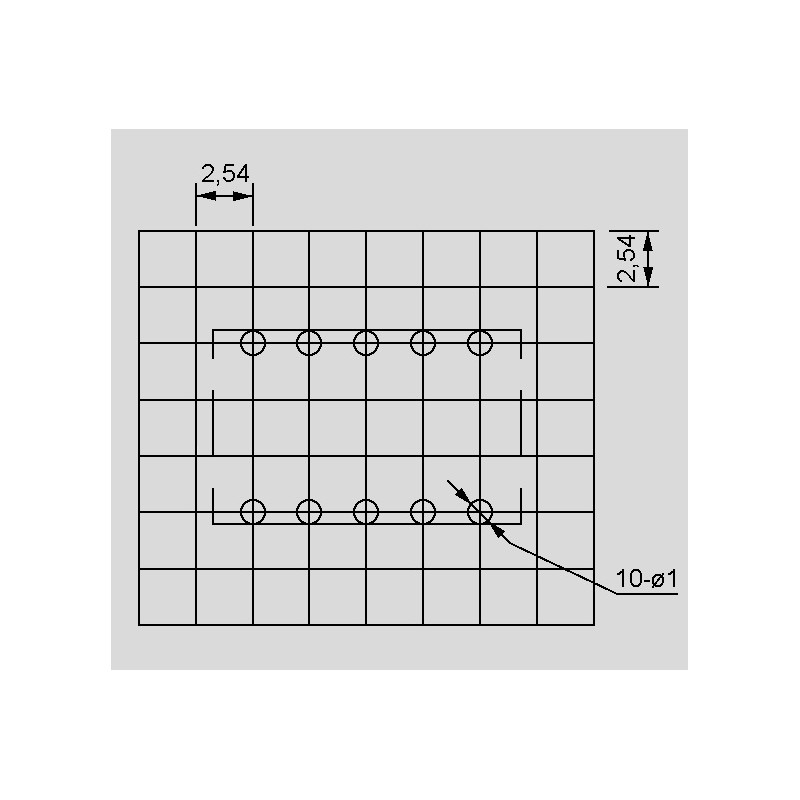

* PCB mounting or insertable in a DIP/DIL socket

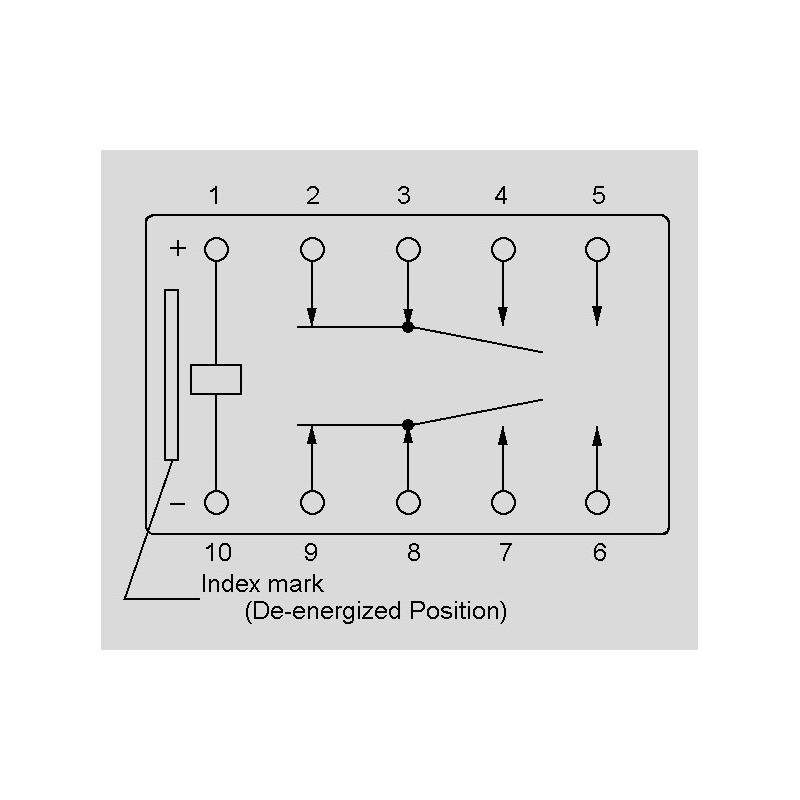

* contact: DPDT
* contact material: AgPd,AgPdAu
* contact Rating: 1A/30V DC, 0.5A/125V AC
* rated current: 1A
* max. switching current: 1A
* max. switching voltage: 250V AC, 220V DC
* max. switching power: 30W/62.5VA
* operate/release time: =2/1ms
* testing voltage (FCC)coil/contact: 1500V AC
* contact/contact: 1500V AC
* lifetime electrical (1A/30V DC): 2x105 operations
* lifetime mechanical: 1x108 operations

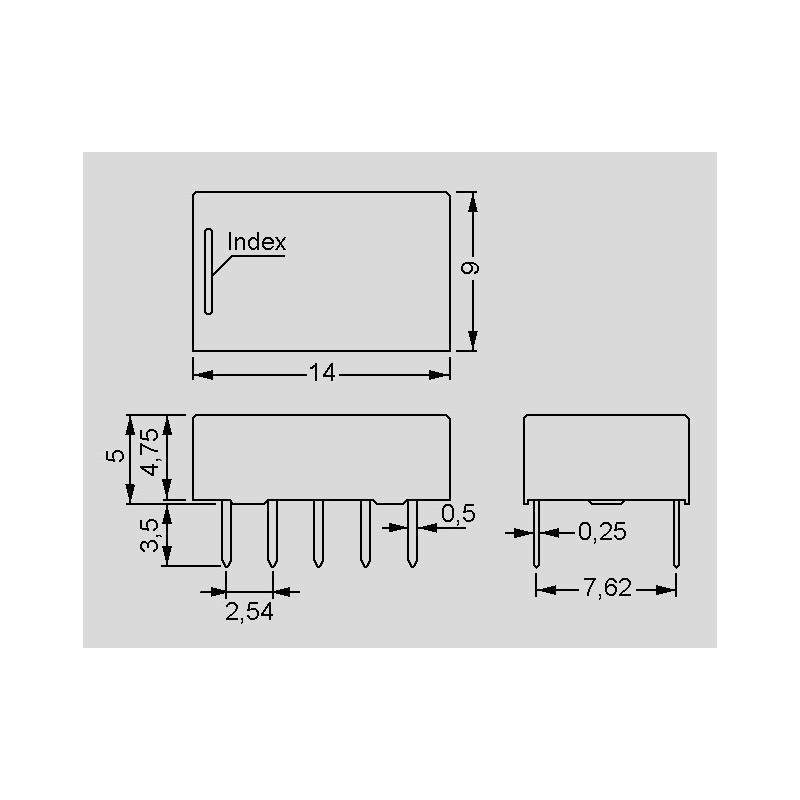

* housing: 14x9x5mm
* operating temperature: -40...+70°C
* by FIC
* weight approx.: 1.5g
FRT5 DC_

FRT5 DC 12V

38810 FRT5 DC 12V FRT5-DC12V FRT5-DC12V rated current: 1A. * small size and ultra slim (only 5mm)* low coil power consumption with 140mW* single side stable* wash tight construction RTIII (IP67)* PCB mounting or insertable in a DIP/DIL socket* contact: DPDT* contact material: AgPd,AgPdAu* contact Rating: 1A/30V DC, 0.5A/125V AC* rated current: 1A* max. switching current: 1A* max. switching voltage: 250V AC, 220V DC* max. switching power: 30W/62.5VA* operate/release time: =2/1ms* testing voltage (FCC)coil/contact: 1500V AC* contact/contact: 1500V AC* lifetime electrical (1A/30V DC): 2x105 operations* lifetime mechanical: 1x108 operations* housing: 14x9x5mm* operating temperature: -40...+70°C* by FIC* weight approx.: 1.5g

Specifications

manufacturer
Manufacturer's name FRT5-DC12V
Nominal capacity [W] 0,14
Nominal resistance [Ω] 1028
Response voltage [V] 9...30
Release voltage [V] ≥1,2
Data Sheet

Unit price

1,30 €

Stock: 1835
Next incoming goods:
CW 51/2024
3200 units

Further delivery:
CW 20/2025

Minimum order quantity 5 units or
multiples of 5.
