FRT5 DC 5V

rated current: 1A

• small size and ultra slim (only 5mm)
• low coil power consumption with 140mW
• single side stable
• wash tight construction RTIII (IP67)

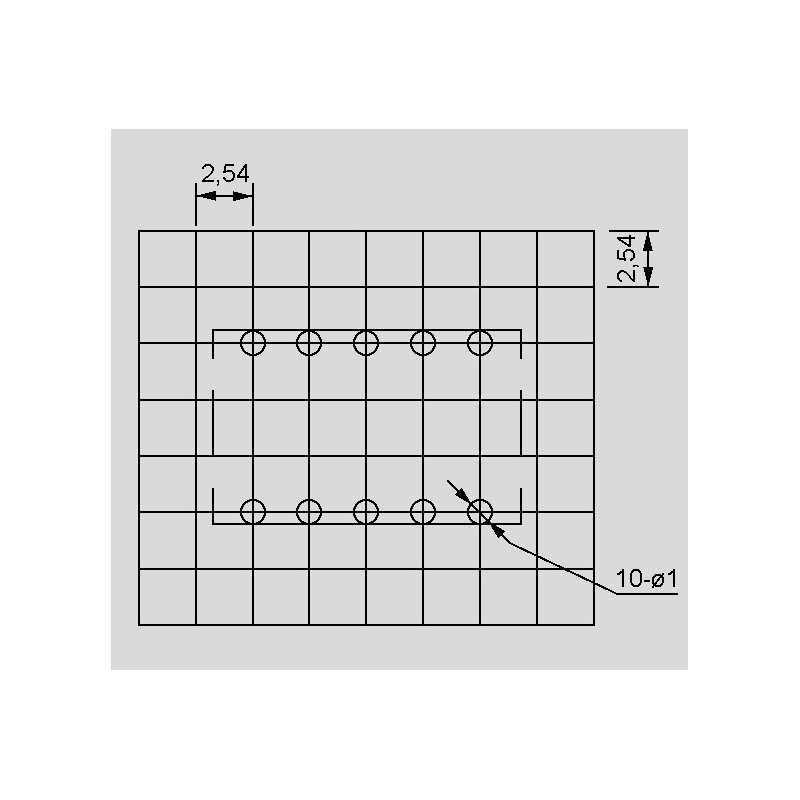

• PCB mounting or insertable in a DIP/DIL socket

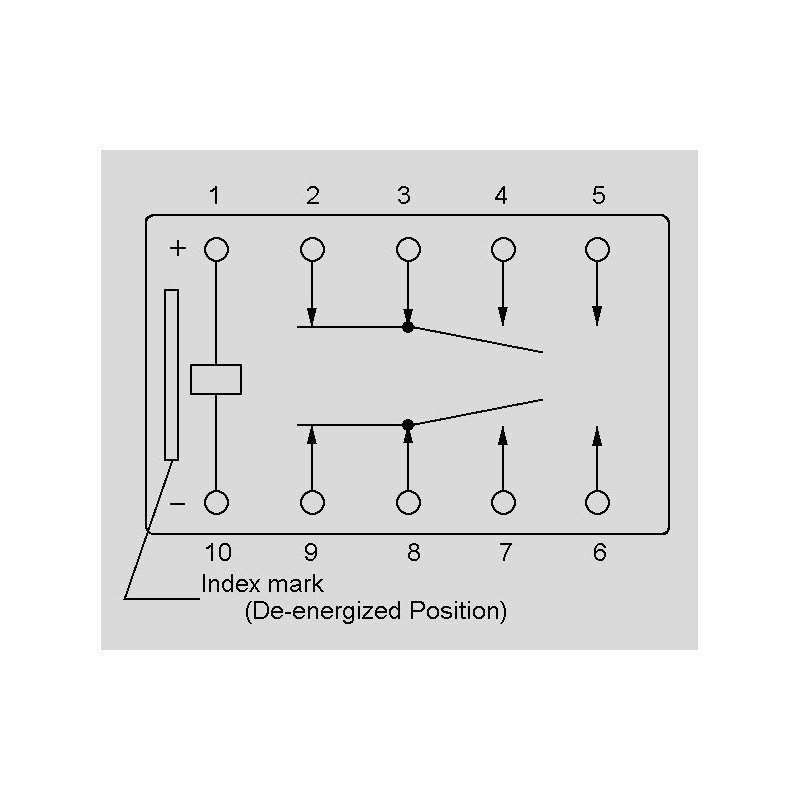

• contact: DPDT
• contact material: AgPd,AgPdAu
• contact Rating: 1A/30V DC, 0.5A/125V AC
• rated current: 1A
• max. switching current: 1A
• max. switching voltage: 250V AC, 220V DC
• max. switching power: 30W/62.5VA
• operate/release time: =2/1ms
• testing voltage (FCC)coil/contact: 1500V AC
• contact/contact: 1500V AC
• lifetime electrical (1A/30V DC): 2x105 operations
• lifetime mechanical: 1x108 operations

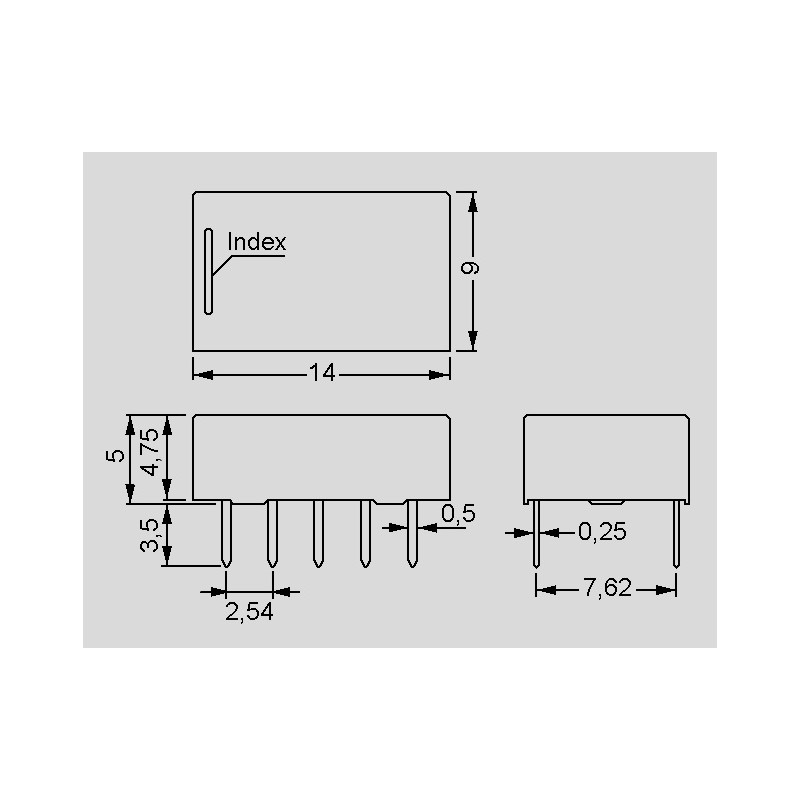

• housing: 14x9x5mm
• operating temperature: -40...+70°C
• by FIC
• weight approx.: 1.5g
FRT5 DC_

FRT5 DC 5V

38809 FRT5 DC 5V FRT5-DC05V FRT5-DC05V rated current: 1A. * small size and ultra slim (only 5mm)* low coil power consumption with 140mW* single side stable* wash tight construction RTIII (IP67)* PCB mounting or insertable in a DIP/DIL socket* contact: DPDT* contact material: AgPd,AgPdAu* contact Rating: 1A/30V DC, 0.5A/125V AC* rated current: 1A* max. switching current: 1A* max. switching voltage: 250V AC, 220V DC* max. switching power: 30W/62.5VA* operate/release time: =2/1ms* testing voltage (FCC)coil/contact: 1500V AC* contact/contact: 1500V AC* lifetime electrical (1A/30V DC): 2x105 operations* lifetime mechanical: 1x108 operations* housing: 14x9x5mm* operating temperature: -40...+70°C* by FIC* weight approx.: 1.5g

Specifications

manufacturer
Manufacturer's name FRT5-DC05V
Nominal capacity [W] 0,14
Nominal resistance [Ω] 178
Response voltage [V] 3,8...12,5
Release voltage [V] ≥0,5
Data Sheet

Unit price

1,29 €

Stock: 2.380
Next incoming goods:
CW 22/2025
2.000 units

Further delivery:
CW 43/2025

Minimum order quantity 5 units or
multiples of 5.
