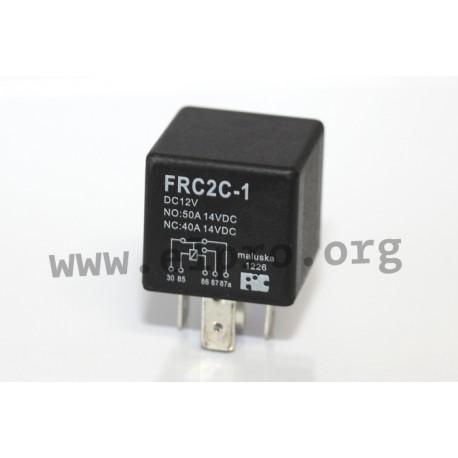

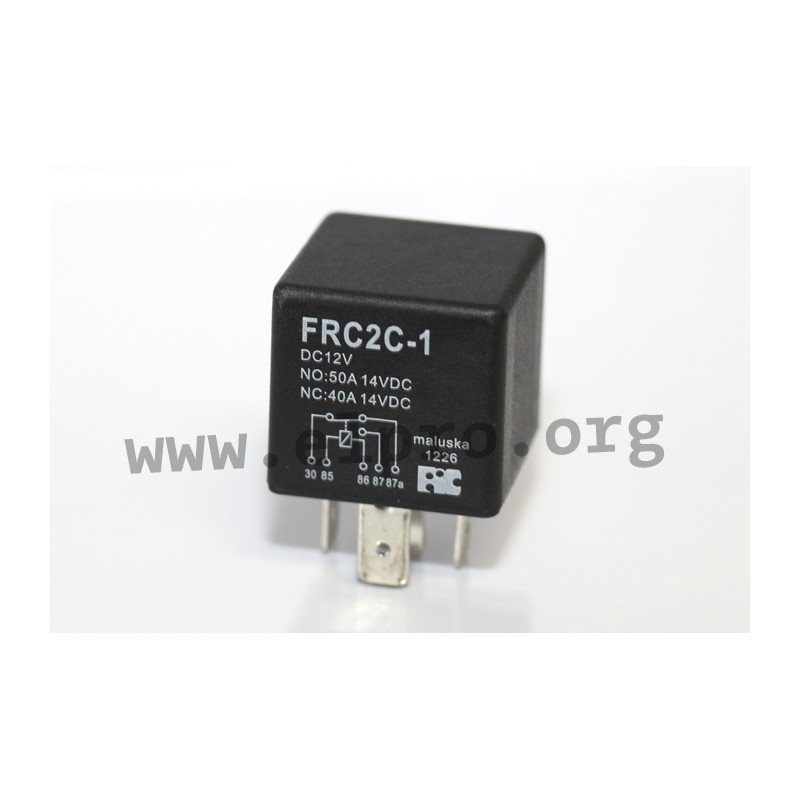

FRC2C-1-DC24V

rated current: 50A

* high contact ratings 50A
* PCB terminals

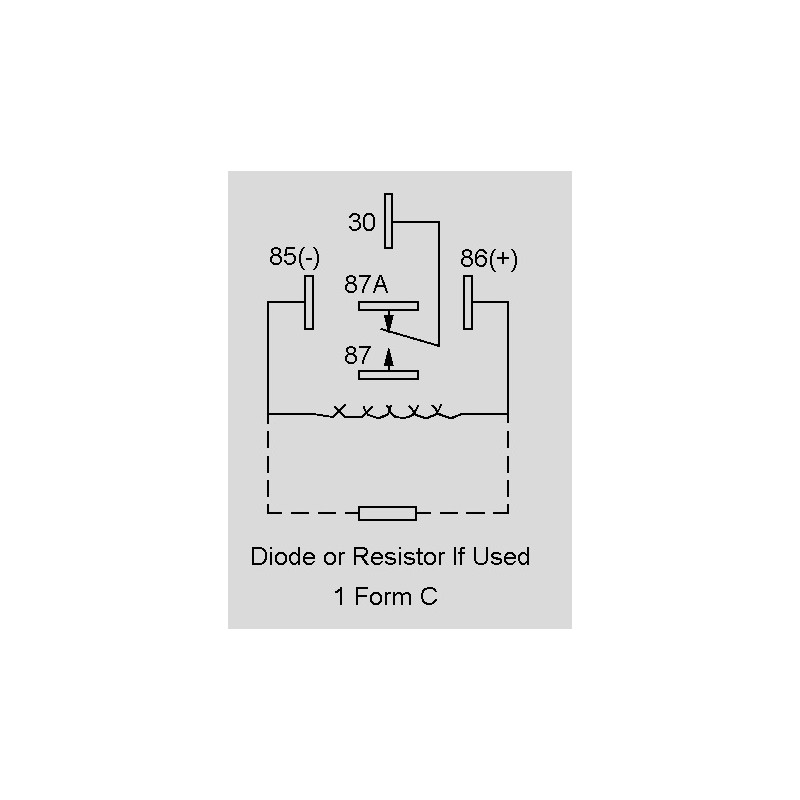

* contact: SPDT
* contact material: AgSnO2
* rated current: 50A
* max. switching current: 50A
* max. switching voltage: 75V DC
* operate/release time: =7/5ms
* testing voltage coil/contact: 500V AC
* lifetime mechanical: 1x107 operations
* lifetime electrical: 1x105 operations

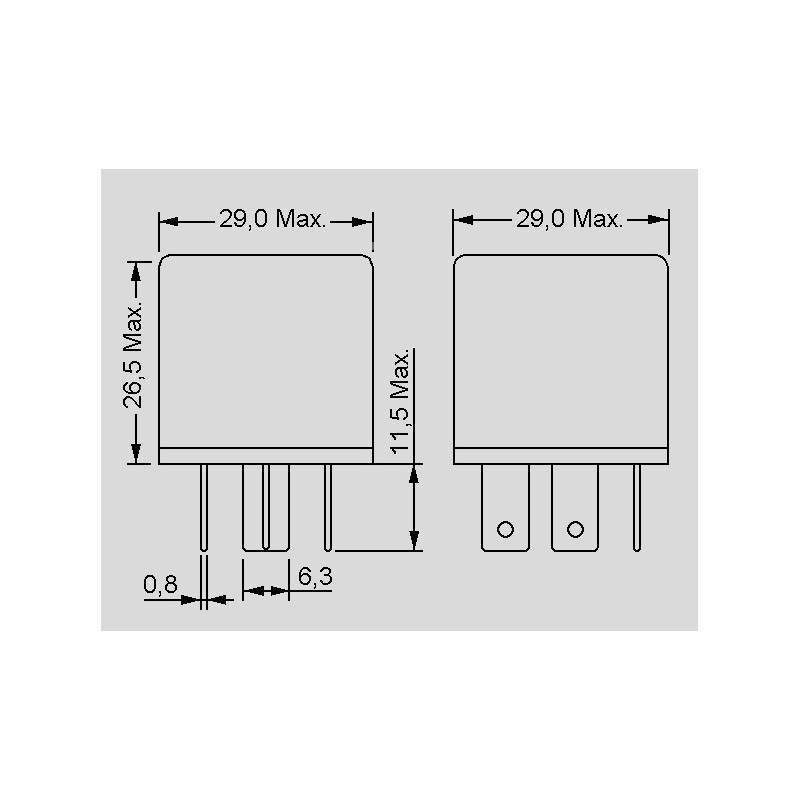

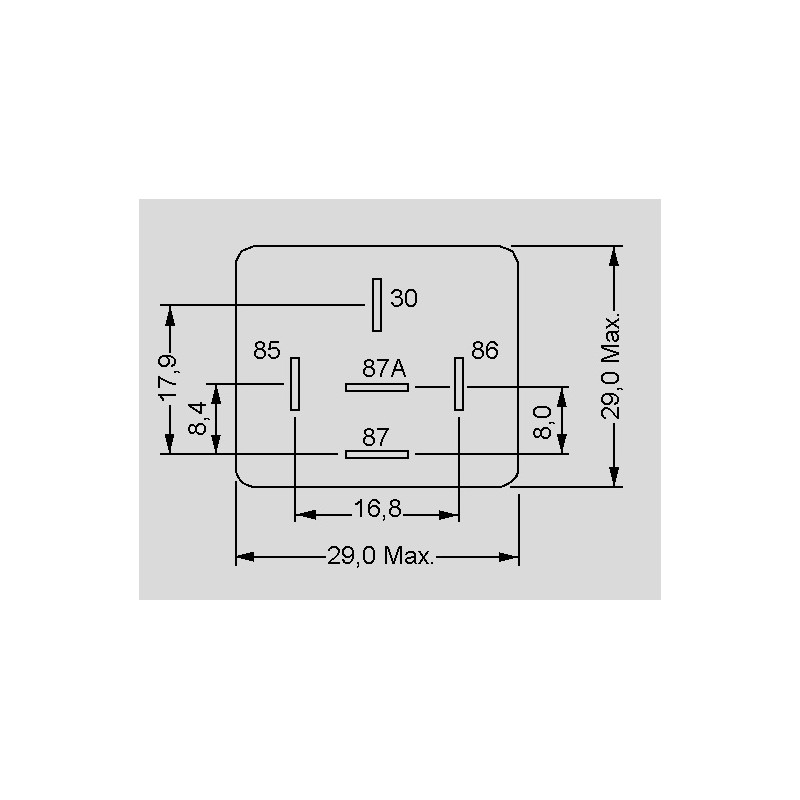

* housing: 29x29x26,5mm
* operating temperature: -40...+85°C
* by FIC
* weight approx.: 35g

FRC2C-1-DC24V

38838 FRC2C-1-DC24V FRC2C-1-DC24V rated current: 50A. * high contact ratings 50A* PCB terminals* contact: SPDT* contact material: AgSnO2* rated current: 50A* max. switching current: 50A* max. switching voltage: 75V DC* operate/release time: =7/5ms* testing voltage coil/contact: 500V AC* lifetime mechanical: 1x107 operations* lifetime electrical: 1x105 operations* housing: 29x29x26,5mm* operating temperature: -40...+85°C* by FIC* weight approx.: 35g

Specifications

manufacturer
Manufacturer's name FRC2C-1-DC24V
Operating voltage [V] 15,6...31,2
Nominal capacity [W] 1800
Nominal resistance [Ω] 320
Switching current [A] 50
Release voltage [V] ≥ 2,4
Data Sheet

Unit price

2,49 €

Stock: 708
Next incoming goods:
CW 23/2025
400 units


Further delivery:
CW 24/2025
