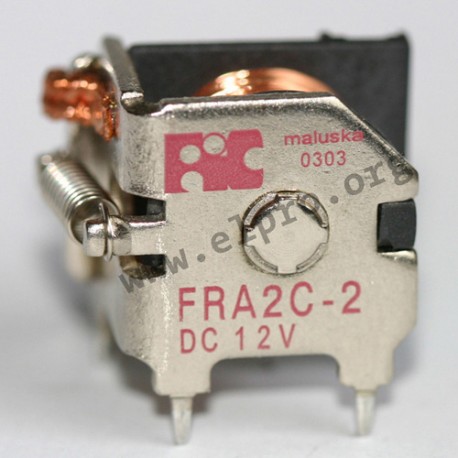

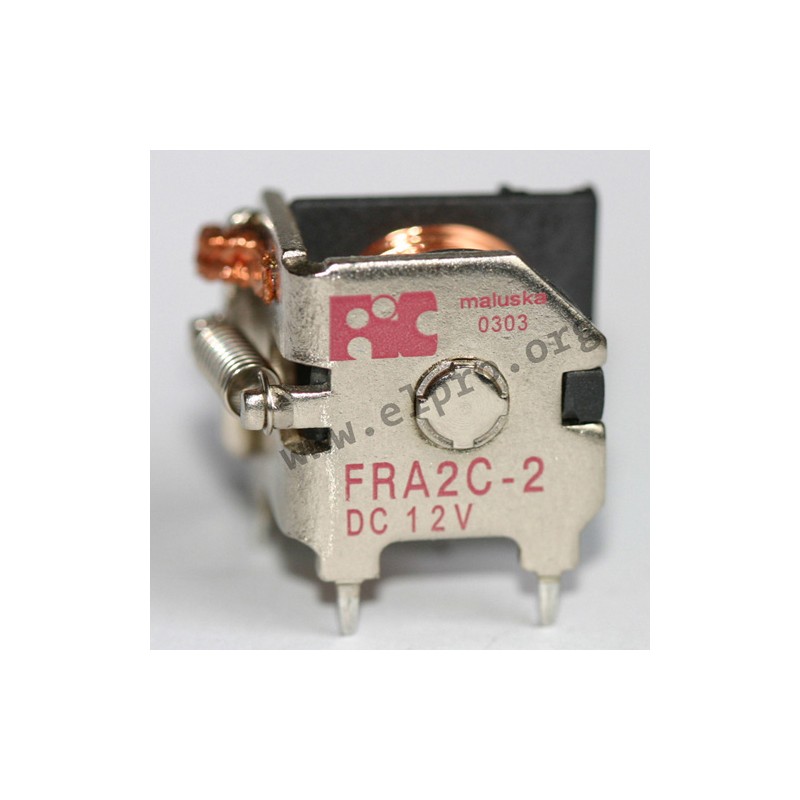

FRA 2 C-2 12V

rated current: 30A

• open enclosure
• contact: SPDT
• contact material: AgSnO2
• rated current: 30A
• max. switching current: 60A
• max. switching voltage: 75V DC
• max. switching power: 630W
• operate/release time: 5/3ms
• testing voltage
coil/contact: 750V
opening contact: 750V
• lifetime
mechanical: 10x106 operations
electrical: 1x105 operations
• operating temperature: -40...+85 °C

FRA 2 C-2 12V

FRA 2 C-2 12V

11926 FRA 2 C-2 12V FRA2C-2-DC12V FRA2C-2-DC12V rated current: 30A. • open enclosure• contact: SPDT• contact material: AgSnO2• rated current: 30A• max. switching current: 60A• max. switching voltage: 75V DC• max. switching power: 630W• operate/release time: 5/3ms• testing voltagecoil/contact: 750Vopening contact: 750V• lifetimemechanical: 10x106 operationselectrical: 1x105 operations• operating temperature: -40...+85 °C

Specifications

manufacturer
Manufacturer's name FRA2C-2-DC12V
Rated current [mA] 133
Nominal resistance [Ω] 90
Switching current [A] 60
Response voltage [V] 8,4...15,6
Max. switching voltage [V] 75
Data Sheet

Unit price

1,36 €

Stock: 1460
Next incoming goods:
CW 07/2025
1000 units

Further delivery:
CW 24/2025

Minimum order quantity 10 units or
multiples of 10.
